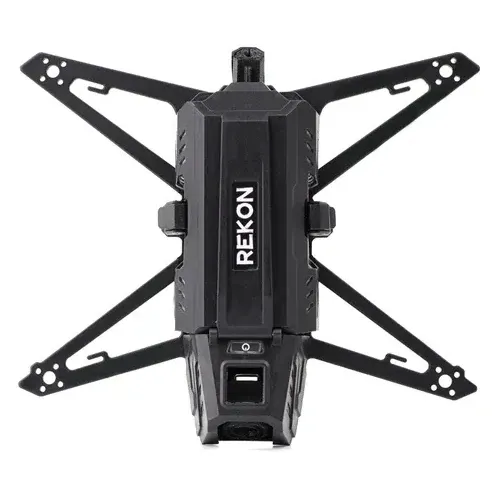

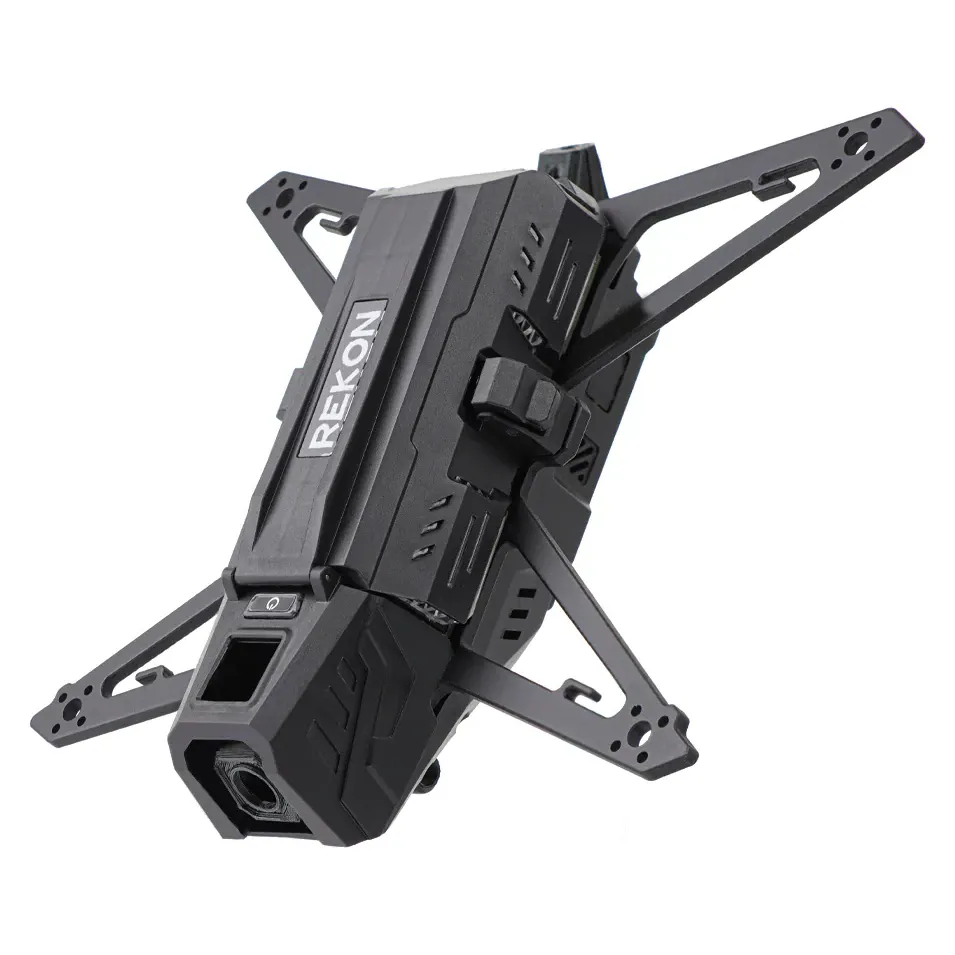

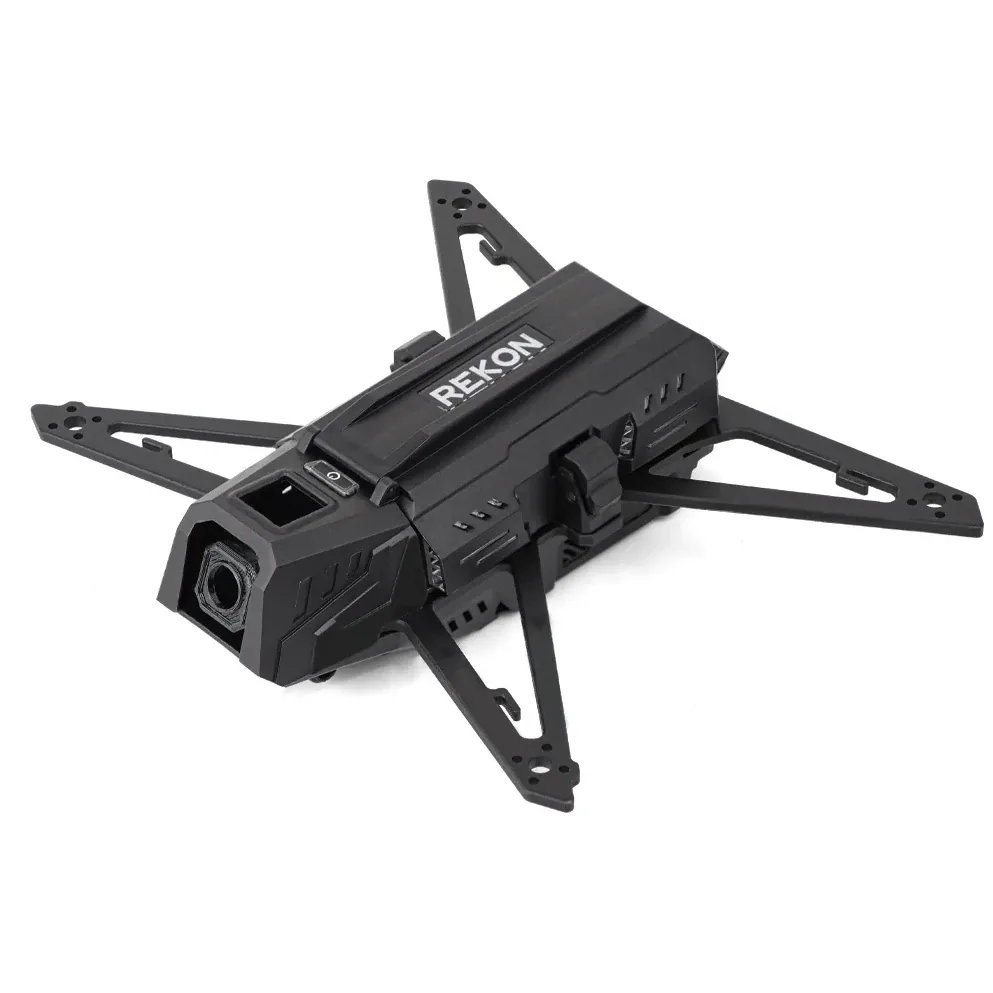

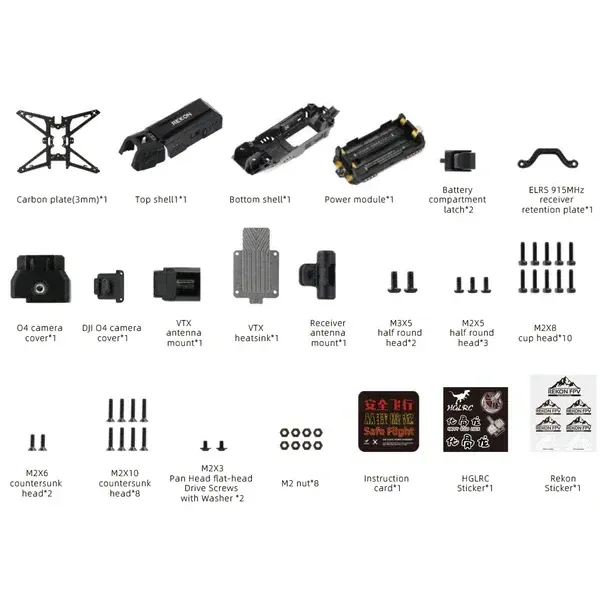

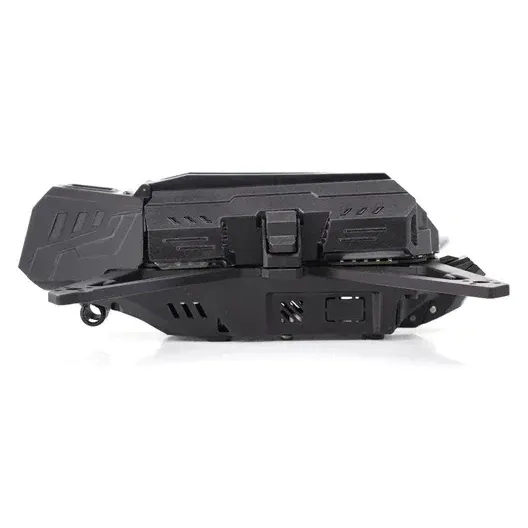

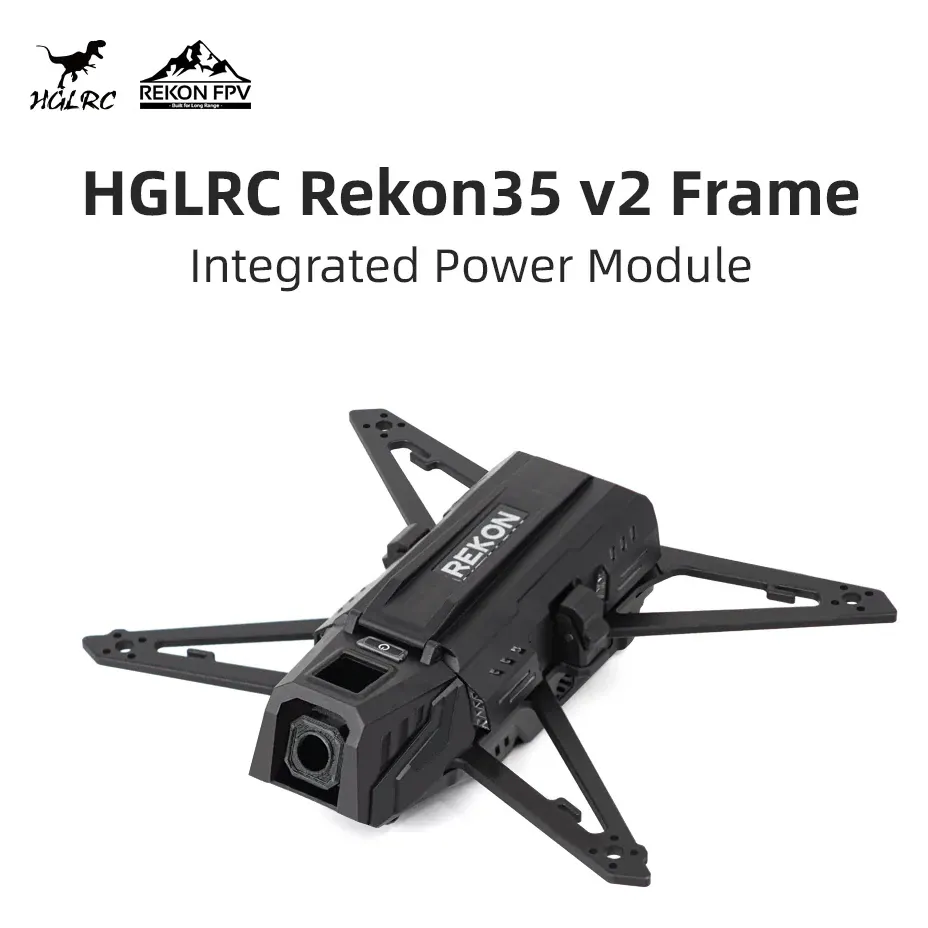

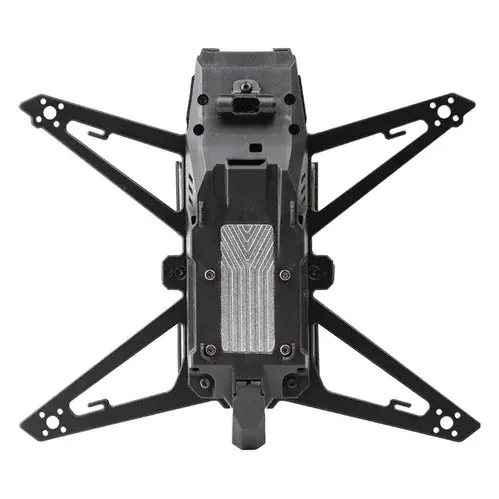

HGLRC Rekon35 V2 3.5 Inch Long Range Frame with 2S Power Module

The HGLRC Rekon35 V2 is a 3.5-inch long-range FPV frame built around an internal 2S 18650 Li-ion pack. Carbon fibre plates with injection-moulded parts keep it light and rigid, and an integrated power module with its own power button charges and discharges the cells in place, so there is no external pack to plug and unplug in the field. It suits long-range cruisers carrying an analog camera or a DJI O4 air unit.

Key features

• Integrated 2S power module: charges and discharges 18650 cells without unplugging, switched by a dedicated power button.
• LED and buzzer alerts report battery and system status in real time.
• Internal battery bay cuts drag and extends flight time.
• Flexible stack mounting: 20×20 mm M2 FC holes and 25.5×25.5 mm M2 VTX holes.
• 20 mm camera mount for analog cameras or a digital air-unit camera.

Specifications

• Wheelbase: 174.24 mm
• Prop size: 3.5 in
• Material: spray-coated carbon fibre with injection-moulded parts
• Carbon plate thickness: 3 mm
• FC mount: 20×20 mm, M2
• VTX mount: 25.5×25.5 mm, M2
• Motor mount: 9×9 mm, M2
• Camera mount width: 20 mm
• Dimensions: 140 × 160 × 50 mm
• Weight: 95 g ±5 g (including 3D-printed parts, power board and screws)

Electronics, battery and props are not included. HGLRC's reference build uses an H743 20A ELRS 2S AIO flight controller, Specter 1404 5500KV motors, a Caddx Ratel 2 camera or DJI O4 air unit, and Gemfan 3630 props.
