HGLRC Rekon 4 LR Frame Kit 4"

This is a 4-inch micro long-range frame kit with deadcat arm geometry to keep propellers out of an FPV or HD camera's view, built for efficient, extended-range cruising rather than aggressive freestyle.

Key features

• Deadcat geometry keeps propellers clear of the camera's field of view on both analogue and HD setups.
• 3K carbon fibre plates (1.5mm top, middle and bottom) with 3mm carbon arms balance stiffness against weight.
• Dual stack mounting (20x20mm and 25.5x25.5mm) fits standard FC/ESC stacks as well as whoop-style AIO boards.
• Direct fit for 19mm micro FPV cameras.

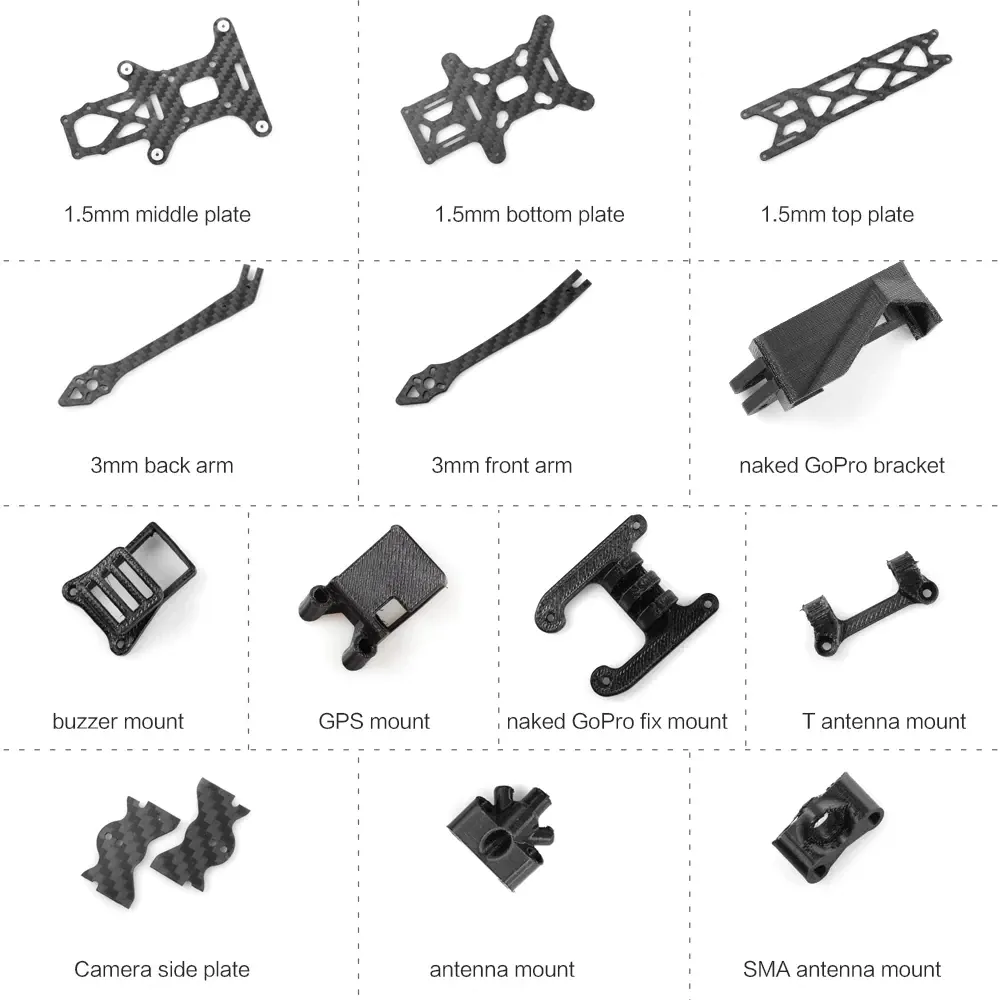

• Ships complete with battery straps, an anti-slip pad and TPU mounts for GoPro, GPS, buzzer and antenna.

Specifications

• Wheelbase: 182mm
• Overall size: 192 x 136 mm
• Propeller size: 4in
• Frame material: 3K carbon fibre
• Plate thickness: 1.5mm (top/middle/bottom)
• Arm thickness: 3mm
• Top-to-middle plate spacing: 20 mm
• FC mounting: 20x20mm, 25.5x25.5mm
• Motor mounting: 9 / 12 mm (M2)
• HD video: room at the rear for a Caddx Vista transmitter
• Camera width: 19mm
• Recommended ESC: 25-40 A

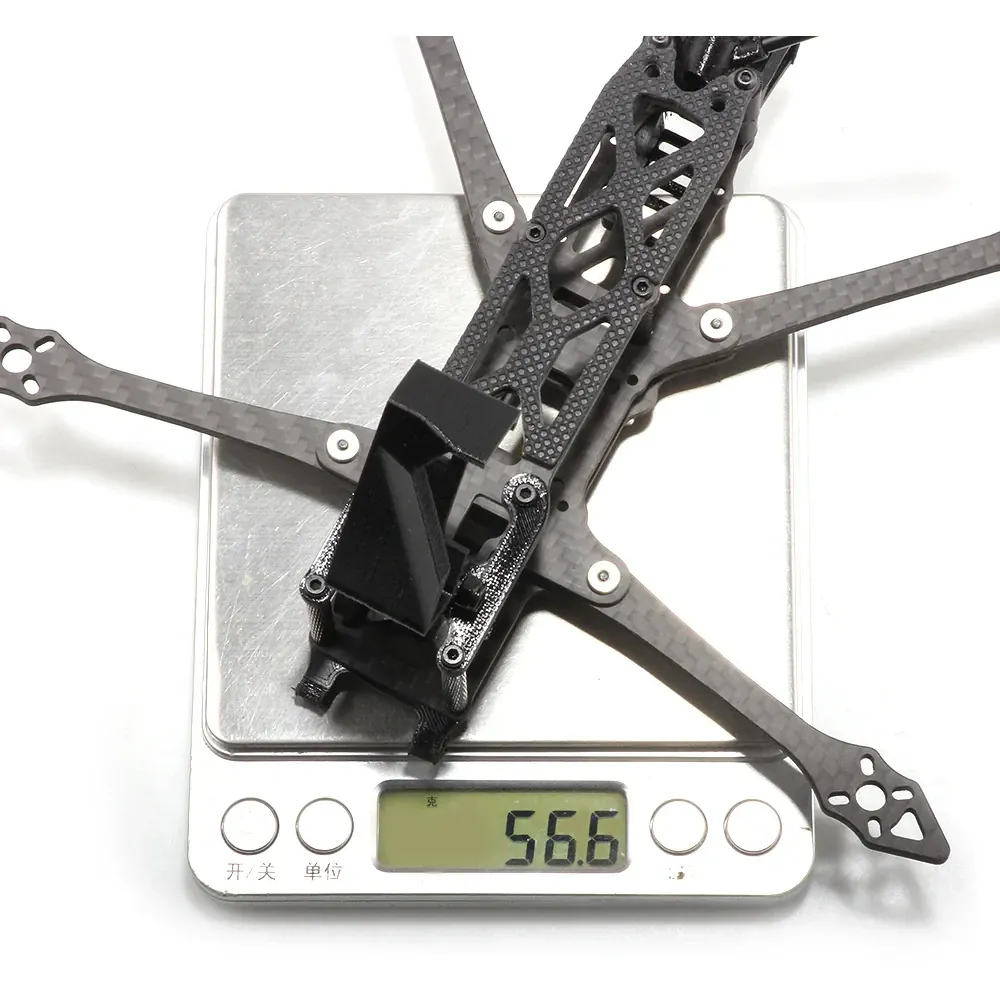

• Weight: 56.6g

For maximum cruising efficiency, pair this frame with 14XX-18XX motors, a lightweight 4-inch bi-blade propeller and an AIO flight controller run from a 4S LiPo or 18650 Li-ion pack.
