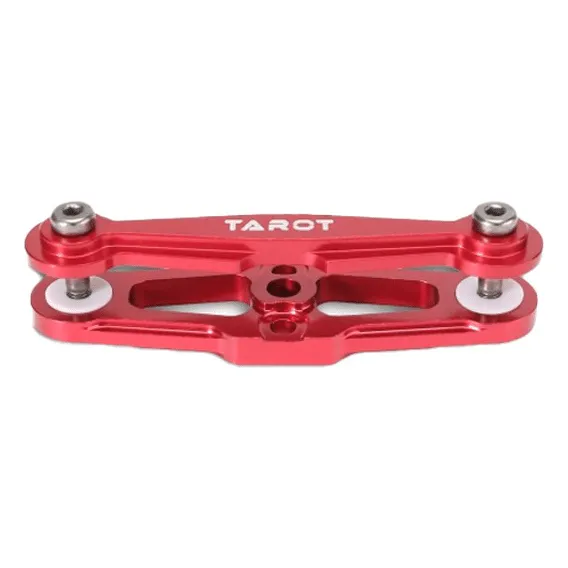

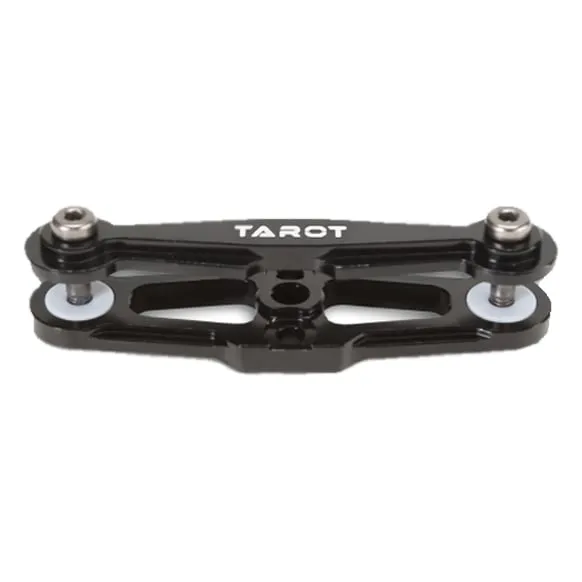

Tarot Metal Folding Prop Clamp Holder for 16-19 inch Props

Tarot's CNC-machined clamp holder for mounting folding propeller blades on large multirotor motors, sized for 16–19 inch folding props on heavy-lift, survey and industrial builds. It comes in a black (TL100B15) or red (TL100B16) anodised finish.

Key features

• Machined from 6061-T6 aluminium alloy with an anodised finish
• Fits motors with a 12mm symmetrical screw-hole pattern
• Holds 16–19 inch folding blades, with Teflon washers supplied for the blade pivots
• Supplied with the matching lower seat and a full set of M3 screws in three lengths

Specifications

• Material: 6061-T6 aluminium alloy, anodised
• Colour options: Black (TL100B15), Red (TL100B16)
• Motor hole pattern: 12mm symmetrical
• Propeller size: 16–19 inch folding
• Dimensions: 60 × 18 × 5 mm

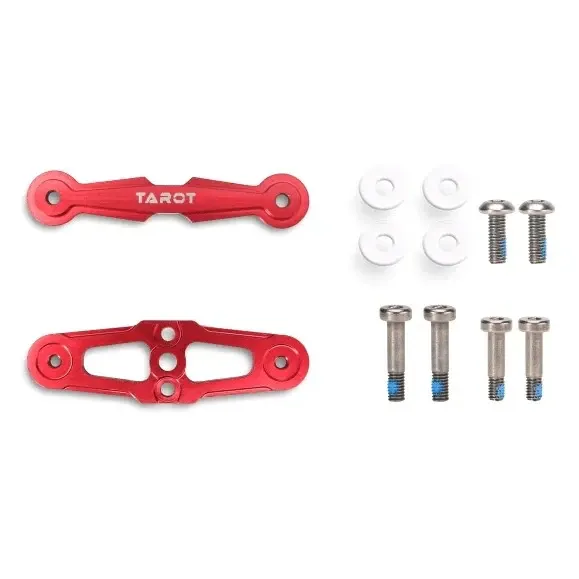

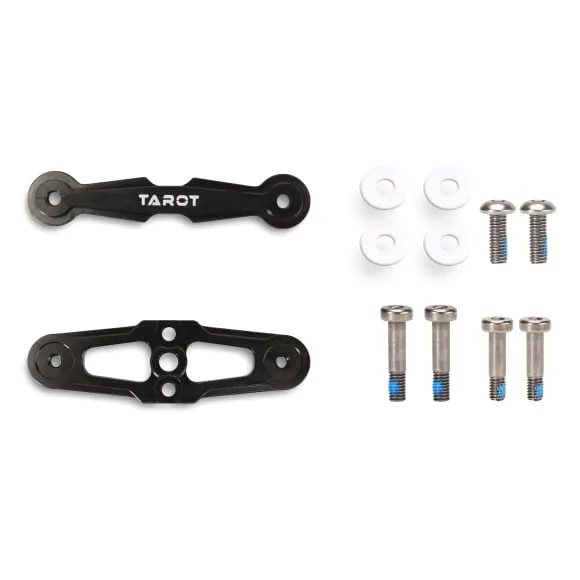

• In the box: 1 clamp holder, 1 lower seat, 2 × M3×14mm cap screws, 2 × M3×10mm cap screws, 2 × M3×8mm button-head screws, 4 × Teflon washers (8 × 3 × 0.5 mm)

Order one clamp per motor. Confirm that your motor's top screw holes sit on a 12mm pattern before ordering, and use thread-locker on the M3 screws, as vibration from large props can work them loose.
