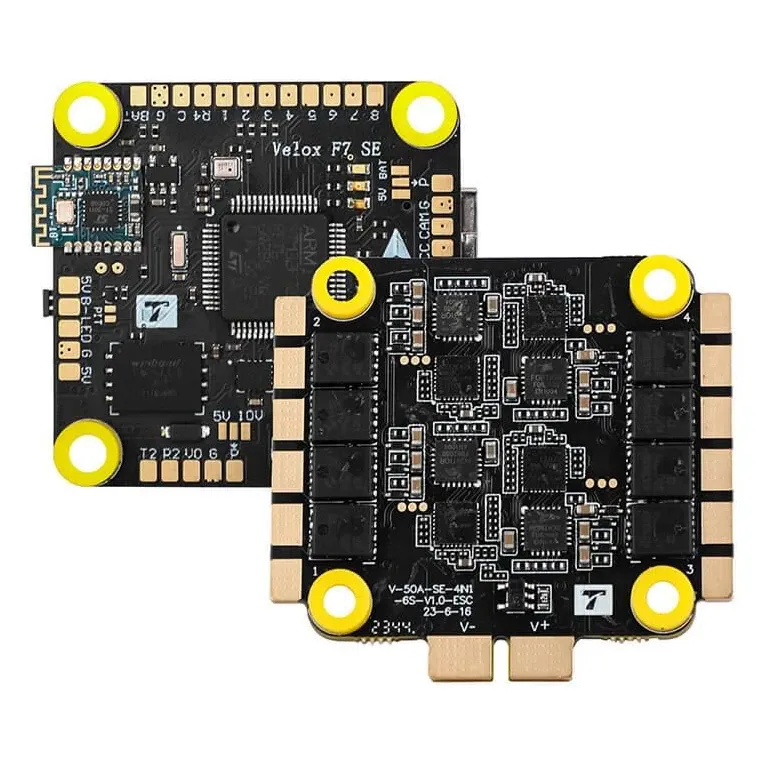

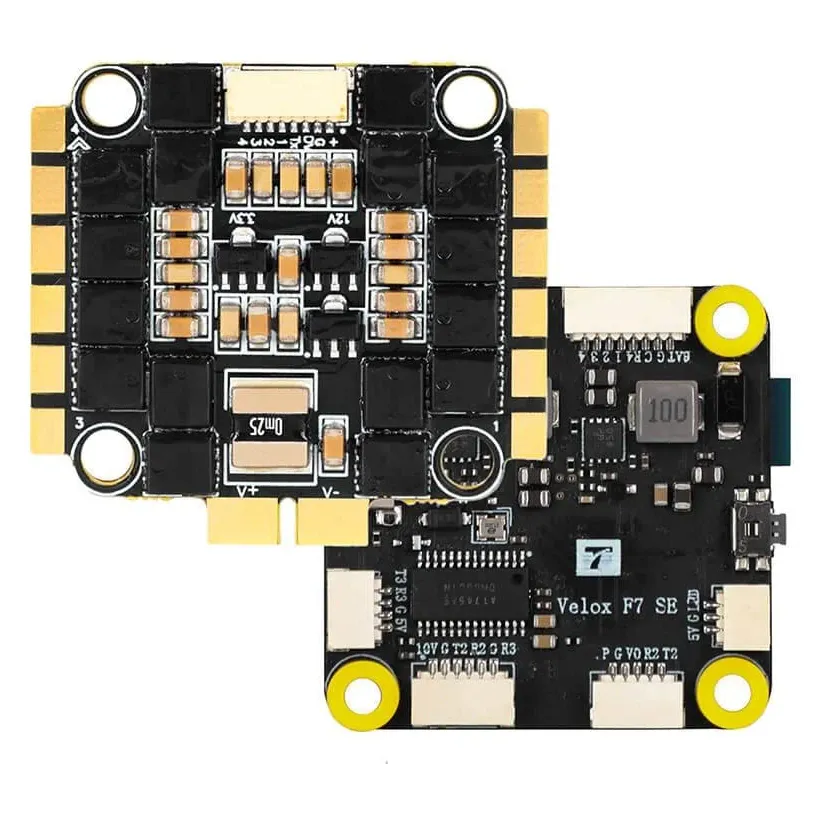

T-Motor Velox F7 SE + V50A SE 3-6S Stack

The T-Motor Velox F7 SE + V50A SE pairs an STM32F722 flight controller with a 50A 4-in-1 ESC in one 30.5x30.5 mm stack. It is built for 5-inch X4 freestyle quads on 3-6S, works with analog or HD video, and is a straightforward choice for a first serious build or for replacing an older F4 stack.

Key features

• ICM-42688-P gyro on SPI, running Betaflight 4.4.3 or newer on the TMTR-TMOTOR Velox F7 target.

• 128MB black box, eight times the 16MB on a typical F722 board, for longer logs while tuning.

• Dual BEC with 5V 2A and 10V 1.5A rails, plus AT7456 analog OSD and HD OSD support.

• Built-in barometer, Bluetooth and USB-C: set parameters wirelessly through T-Motor's TMFC Bluetooth link.

• Eight motor outputs and six UARTs, so the same FC can run an X8 coaxial frame with ports left for GPS, receiver and VTX.

• V50A SE ESC: 50A continuous, 60A peak at 5S, 3-6S input, 12.3 g.

Specifications

• FC MCU: STM32F722

• Gyro: ICM-42688-P (SPI)

• OSD: AT7456 analog and HD

• Black box: 128MB

• UARTs: 6

• FC BEC: 5V 2A and 10V 1.5A

• FC input voltage: 12-27V (3-6S)

• FC size: 37.5 x 40 x 6.4 mm

• FC weight: 9 g

• ESC current: 50A continuous, 60A peak (5S)

• ESC input voltage: 3-6S

• ESC size: 41 x 44.4 x 5.8 mm

• ESC weight: 12.3 g

• Mounting: 30.5 x 30.5 mm, 4 mm holes (FC and ESC)

• Firmware: Betaflight 4.4.3 or newer, target TMTR-TMOTOR Velox F7

• Connectivity: USB-C, Bluetooth

The matched motors are T-Motor's Velox V3 2207 or 2306 in 1750KV, 1950KV or 2550KV, and any 5-inch frame with a 30.5x30.5 stack mount takes the board pair. Motors, receiver and video system are sold separately.
