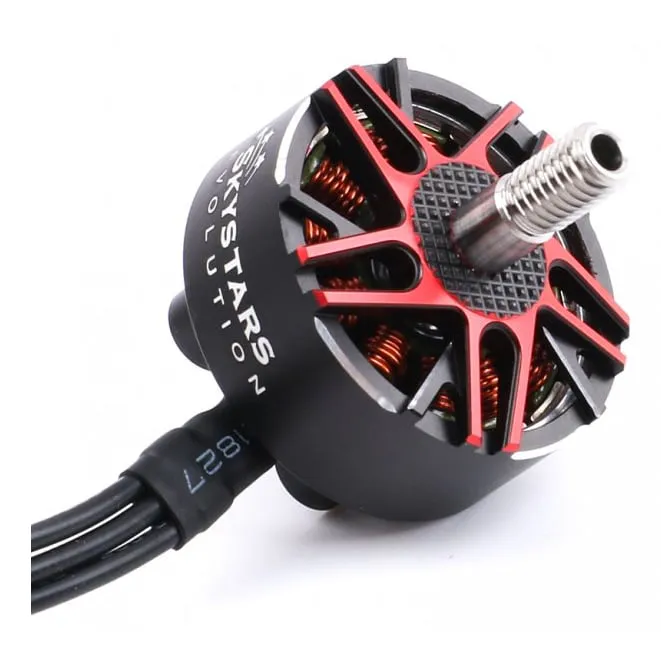

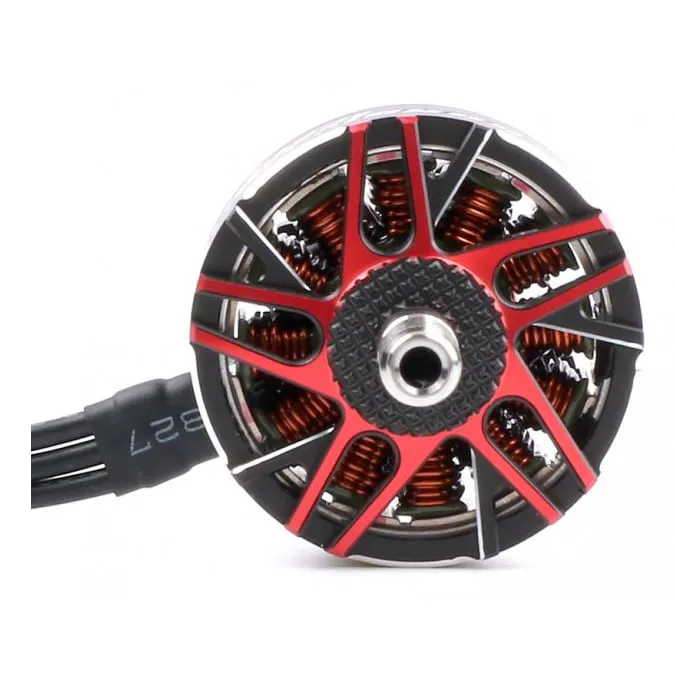

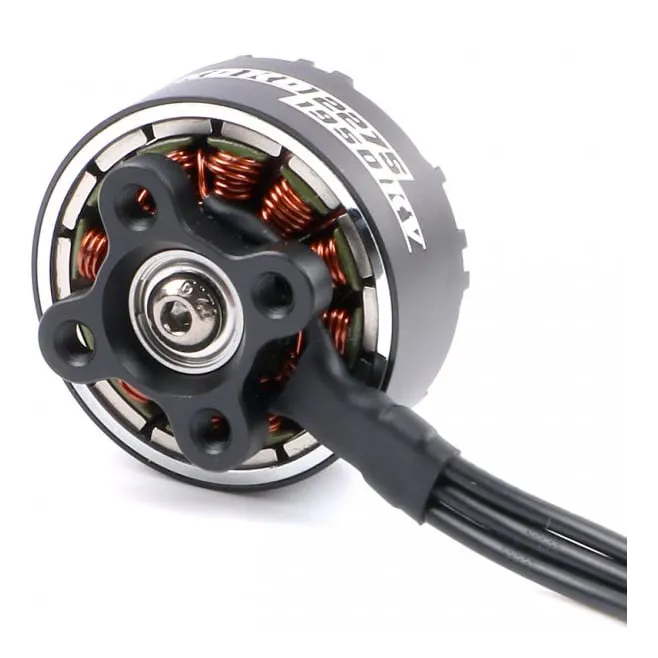

Skystars KOKO 2275 1950KV Brushless Motor

The Skystars KOKO 2275 1950KV is a 5-inch FPV motor with an oversized 22mm x 7.5mm stator, giving stronger low-end torque than a standard 2207 for aggressive freestyle and racing builds run on 6S power.

Key features

• N52H round magnets and a hollow titanium-alloy shaft on NMB bearings for a lighter, stronger rotor that spools up quickly.
• 12N14P winding configuration tuned for punchy throttle response and strong braking on 6S packs.
• Unibell design and a 5mm shaft give broad compatibility with 5-inch and 5.1-inch propellers across most popular brands.
• 20AWG 150mm motor leads and a 16mm M3 mounting pattern for a straightforward, bolt-on install on most 5-inch frames.
• The larger 2275 stator trades a little top-end RPM for noticeably more torque than a same-KV 2207 motor.

Specifications

• Stator size: 2275 (22 x 7.5 mm)
• KV rating: 1950KV
• Configuration: 12N14P
• Dimensions: 32 x 27.9 mm
• Weight: 32 g
• Shaft: 5 mm

Pair with a 6S battery and a mid-to-high-pitch 5-inch prop for heavy freestyle airframes or bando-bashing where fast motor braking and immediate thrust matter.
