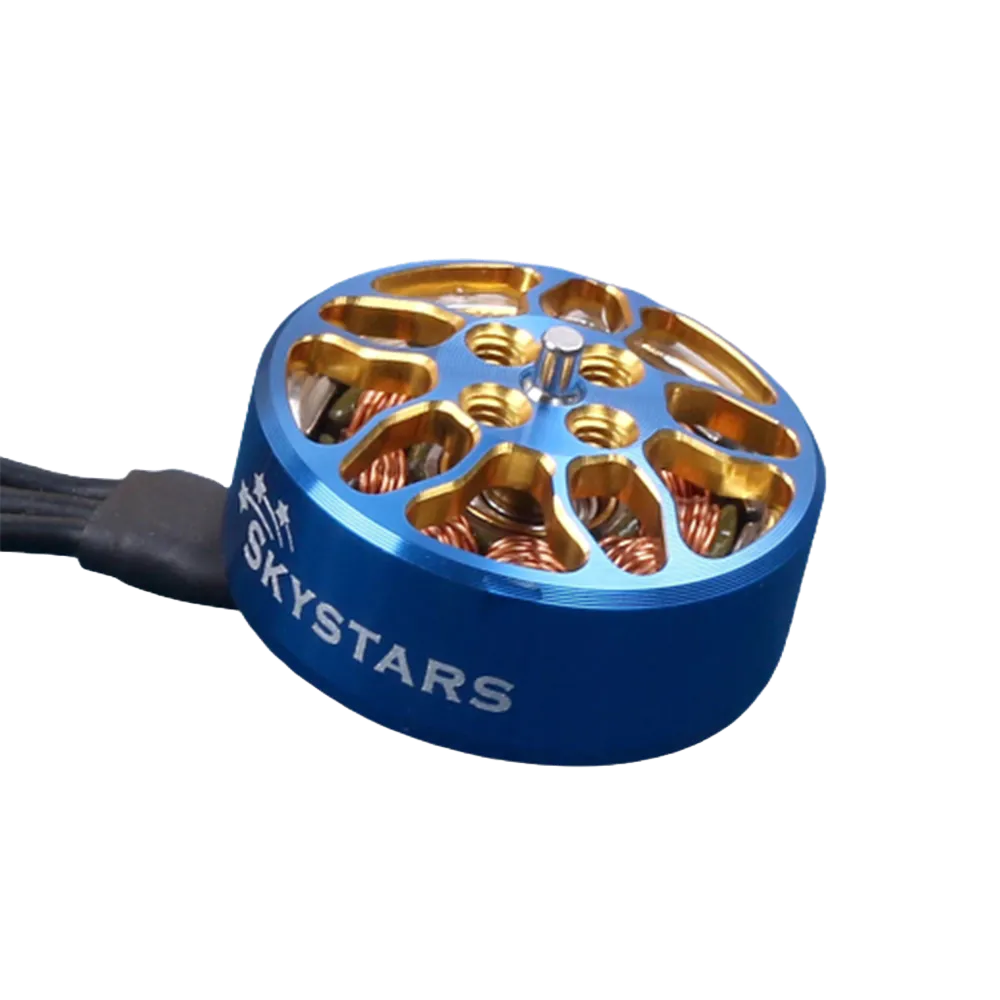

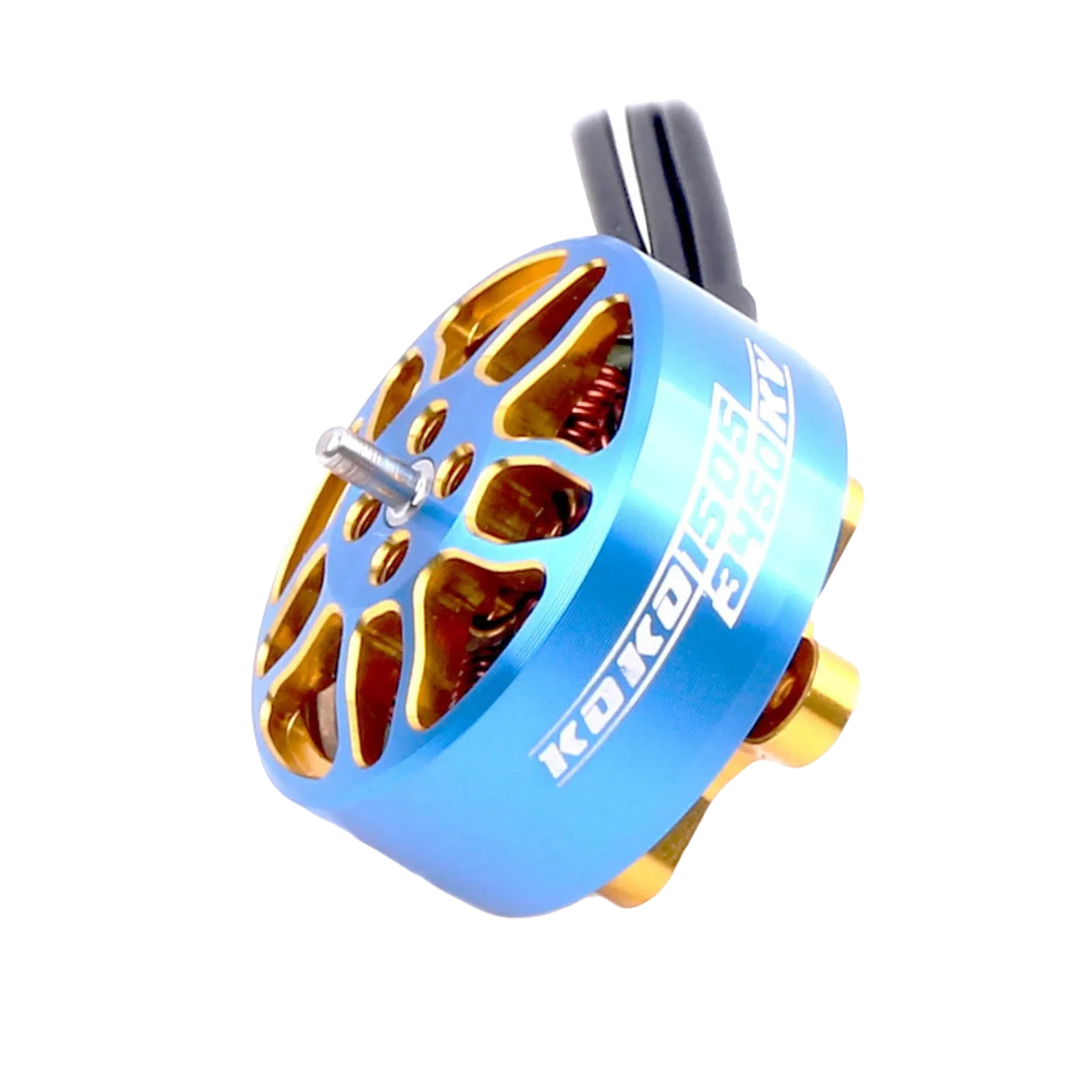

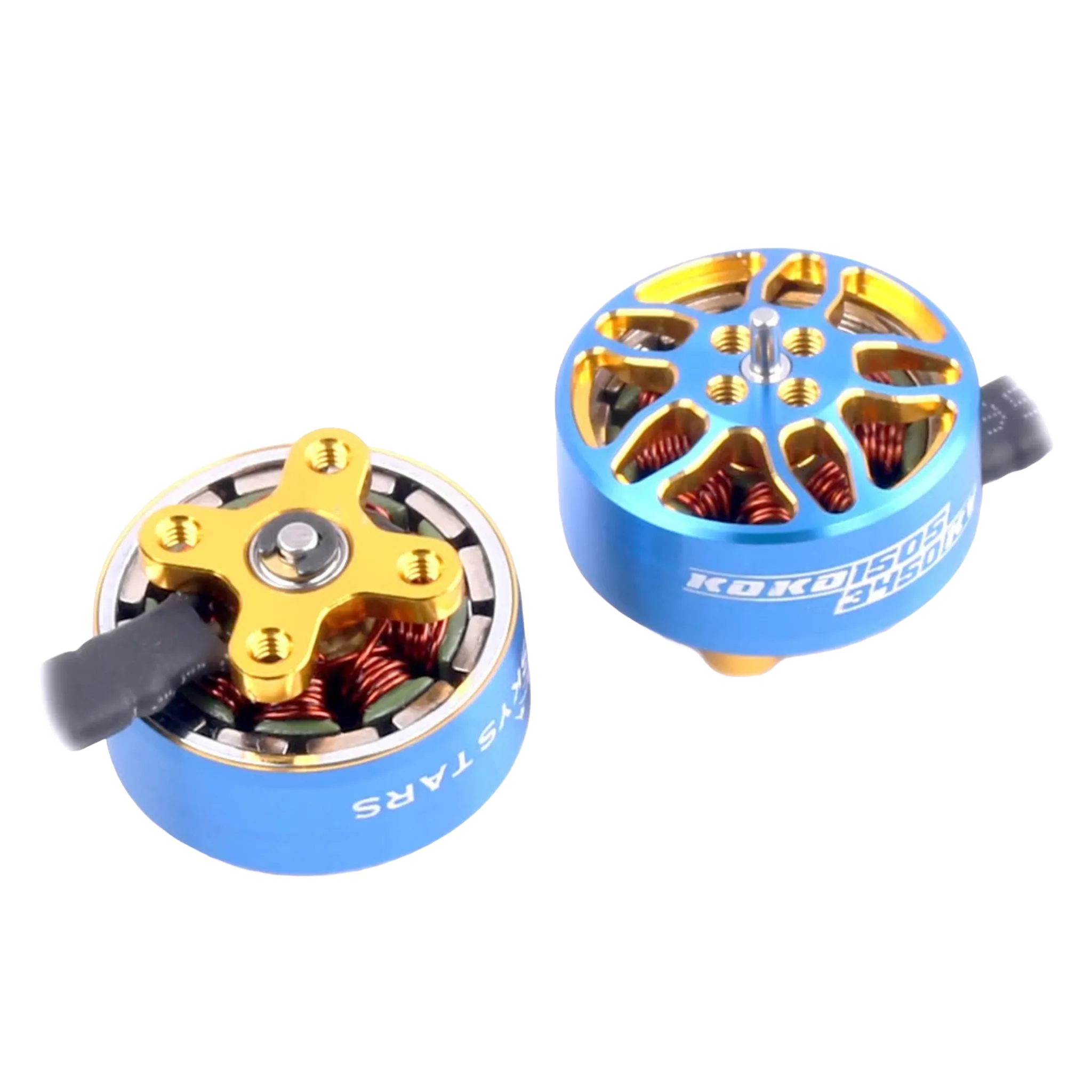

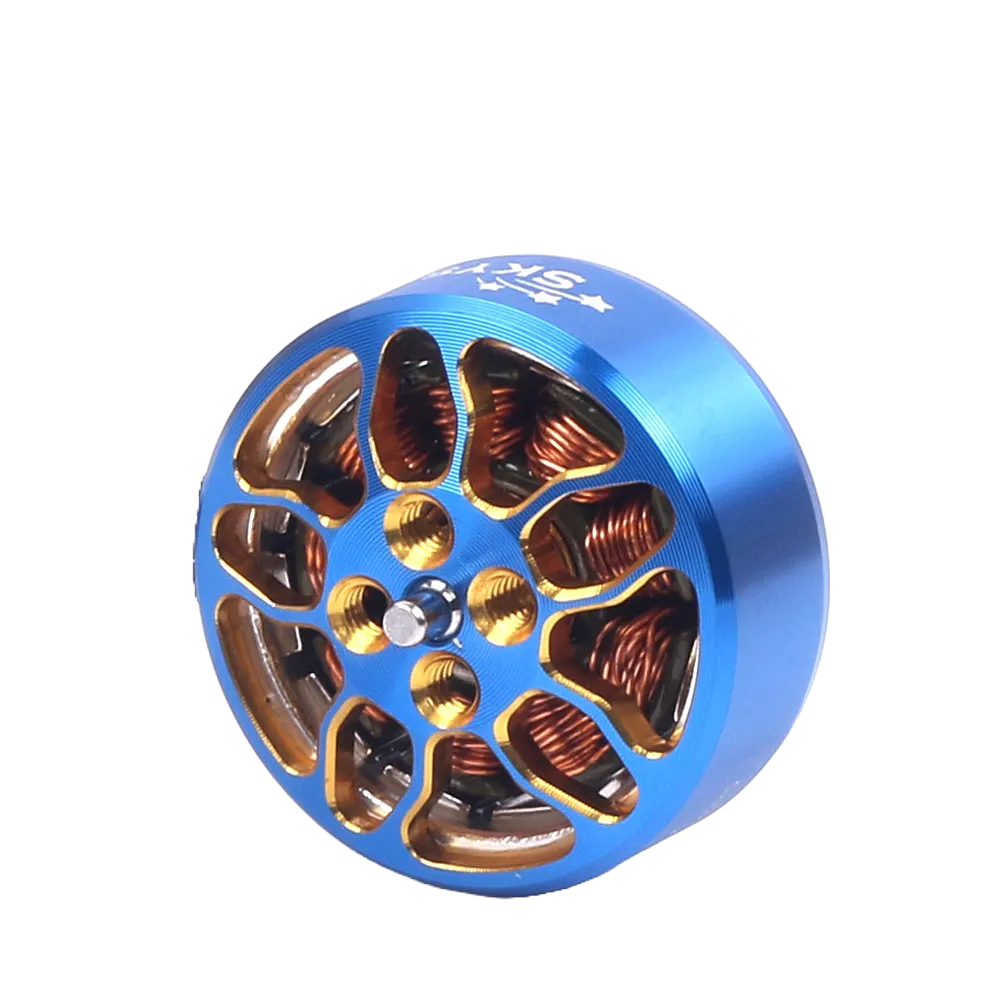

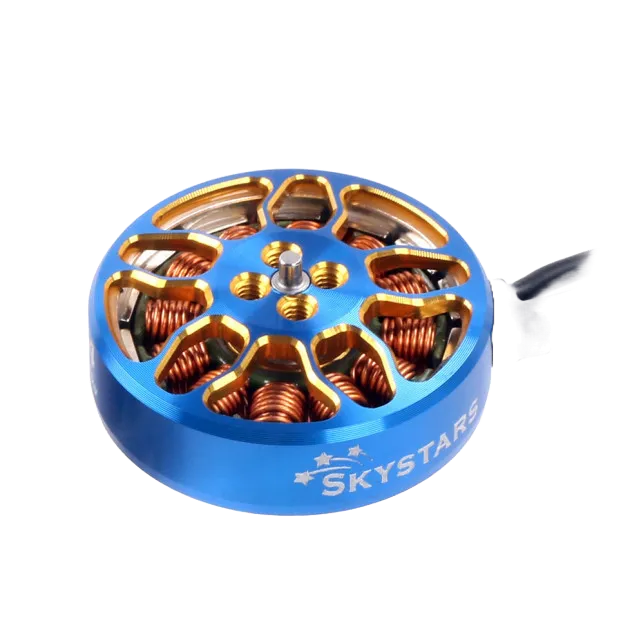

Skystars KOKO 1505 3450KV Motor
₹1,449Incl. GST
SKU SKYSTARS-KOKO-1505-3450KV
Stator Size: 1505KV: 3450 KVProp Mount: T-Mount, 1.5mmShaft: 1.5mm
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Skystars KOKO 1505 3450KV is a brushless motor for 3-inch and 4-inch micro and toothpick quads, with a stator 43% larger than a typical 1404 motor for extra torque on the same footprint.
Key features
- 1505 stator (9N12P winding) gives more torque than 1404-class motors at a similar KV
- 3450KV suits 3S–4S power on 3-inch and 4-inch props, and can run 2.5-inch or 3-inch props on 6S for extra thrust
- 1.5mm shaft on a 12x12mm bolt pattern fits standard micro and toothpick frame arms
- Ships with a spare screw set and 22AWG 140mm motor leads ready to solder in
Specifications
- Stator size: 1505
- KV: 3450KV
- Shaft: 1.5mm
- Motor mount: 12x12mm
- Input voltage: 3S–6S
- Weight: approx. 14.2g with cables
Pick this motor for lightweight 3-inch to 4-inch freestyle and toothpick builds where you want more low-end torque than a standard 1404 without moving up to a full 5-inch drivetrain.
| Stator Size | 1505 |
|---|---|
| Stator Diameter | 15mm |
| Stator Height | 5mm |
| KV | 3450 KV |
| Prop Mount | T-Mount, 1.5mm |
| Shaft | 1.5mm |
| Motor Mount | 12x12mm |
| Input Voltage | 3–6S |
| Weight | 14.2 g |
| Brand | Skystars |
| Made in India | No |
