SIYI MK15 /
SKU SIYI-MK15-MK32-PATCH-14DB
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

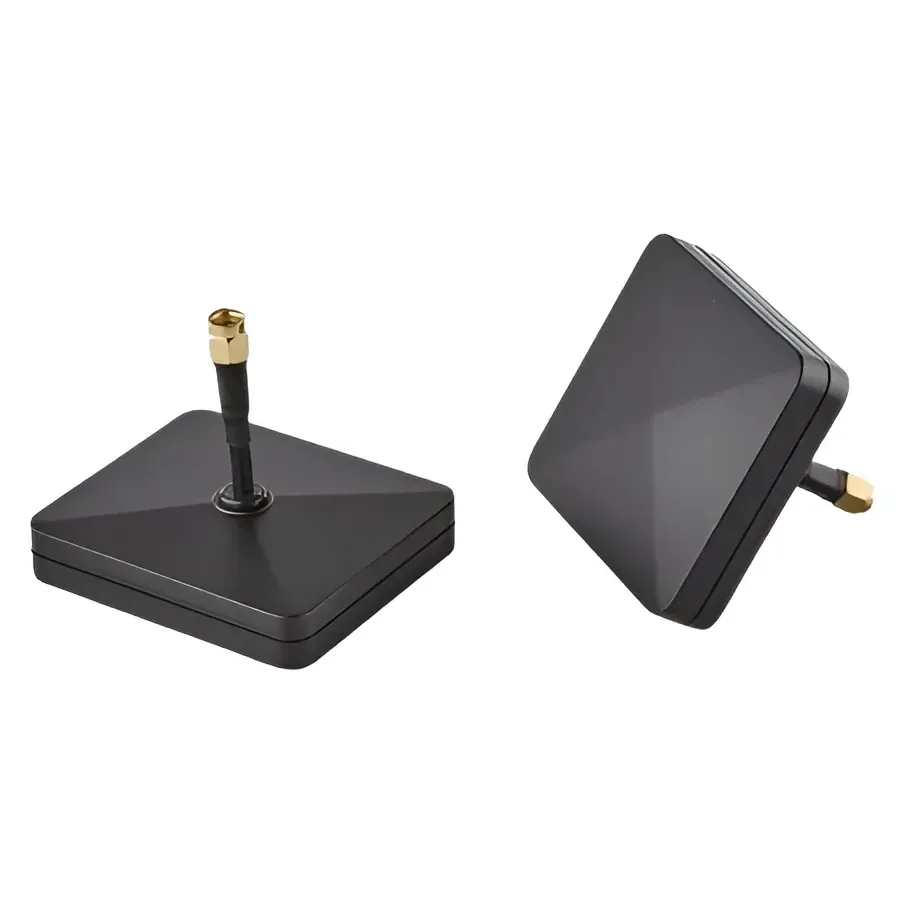

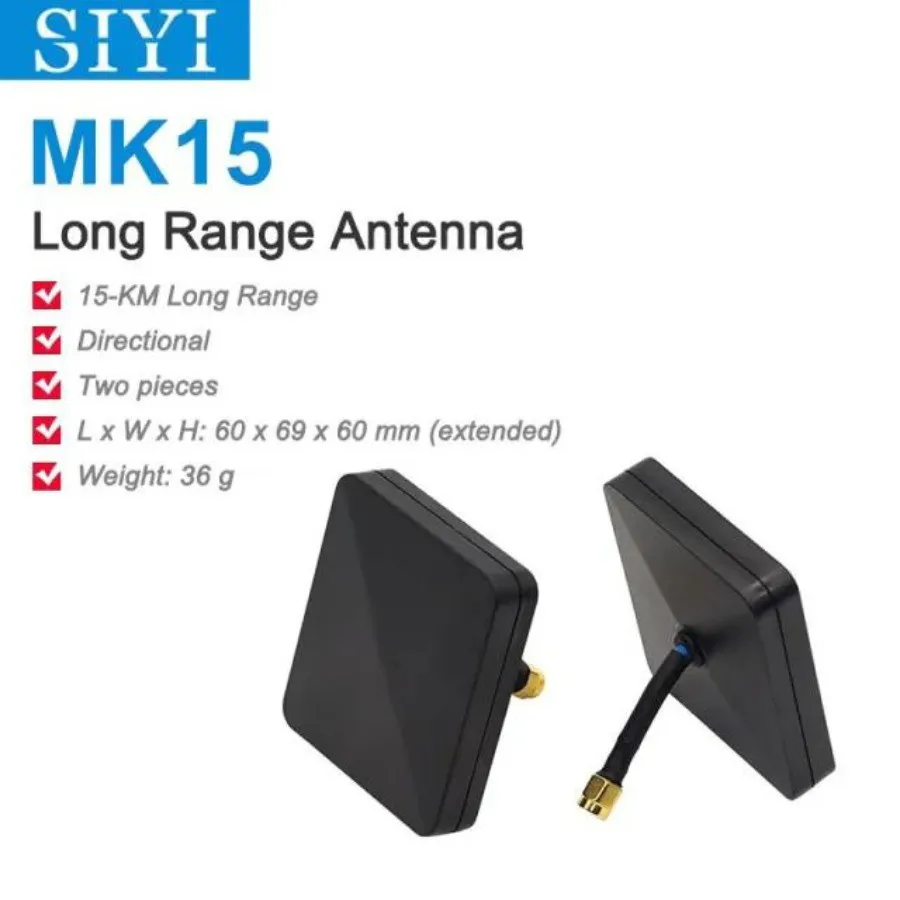

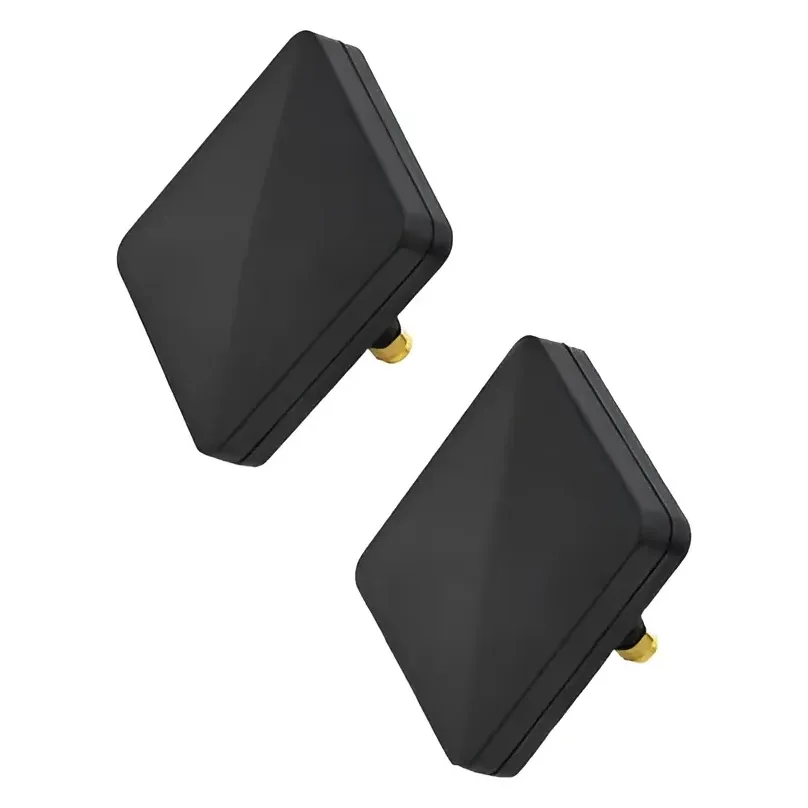

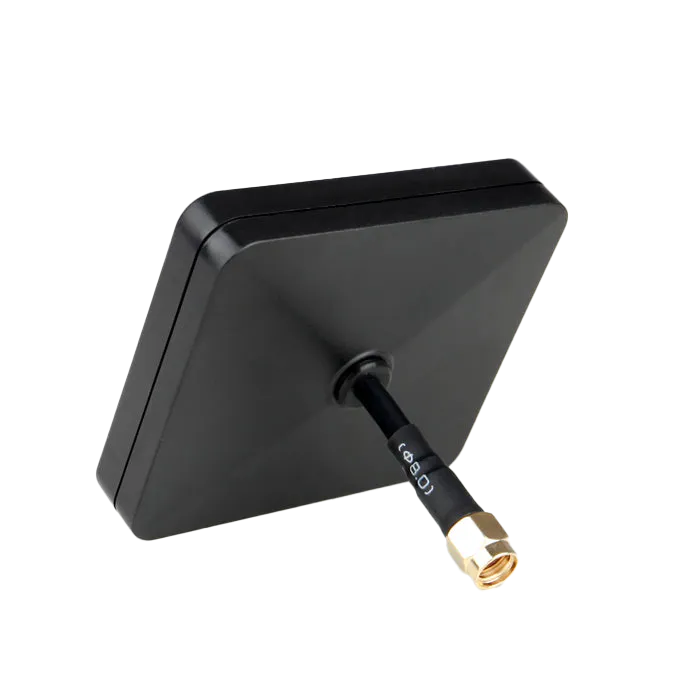

SIYI's 14dB directional patch antenna is a range upgrade for the MK15 and MK32 handheld ground stations, and it also fits SIYI antenna trackers. It concentrates gain in one direction, which extends the combined control, telemetry and video link on survey, inspection and agricultural flights where the aircraft works out in front of the operator.
Key features
- 14dB gain in a directional patch pattern, giving longer reach where the antenna points
- Better rejection of off-axis interference than an omni antenna, which helps near towns and other 2.4GHz traffic
- SMA connector with 50 ohm impedance for the MK15/MK32 antenna ports
- Tracker-ready: on a SIYI antenna tracker the patch stays aimed at the aircraft automatically
Specifications
- Antenna type: directional patch
- Gain: 14 dB
- Band: 2.4 GHz (MK15/MK32 link band)
- Connector: SMA
- Impedance: 50 ohm
- Compatibility: SIYI MK15, MK32 and SIYI antenna trackers
- In the box: 1 × antenna
A patch antenna trades coverage for reach. Aim it at the work area and keep the aircraft inside its beam. For flights that circle overhead or behind you, an omni antenna covers better.
| Antenna Connector | SMA |
|---|---|
| Frequency | 2.4GHz |
| Made in India | No |
| Brand | SIYI |
| Gain | 14 dBi |
| Antenna Type | Patch, Directional |
| Pack Size | 1 |
