SEQURE MSS12 Mini T12 Soldering Station

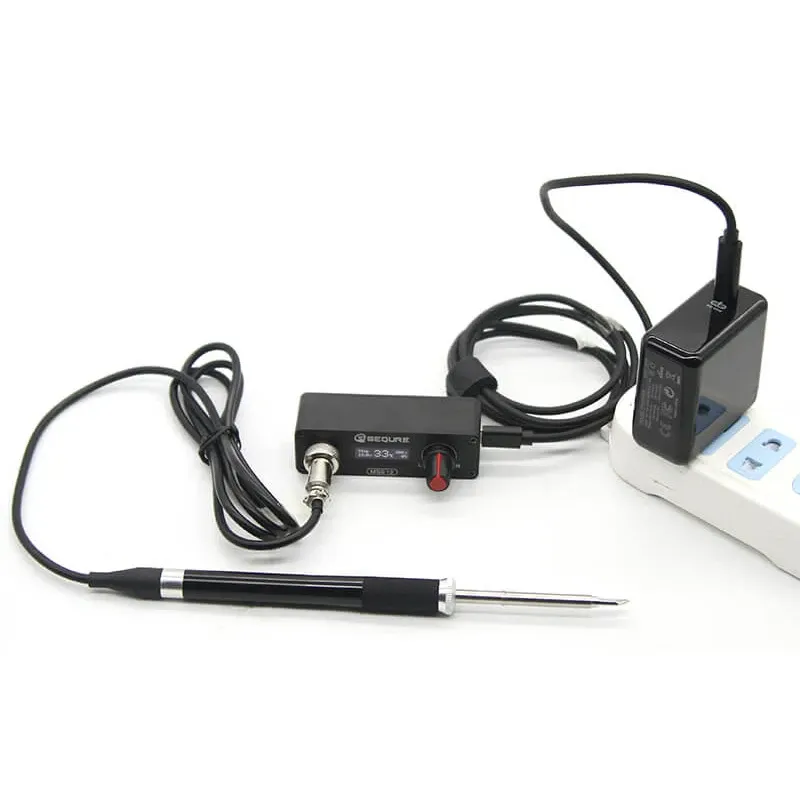

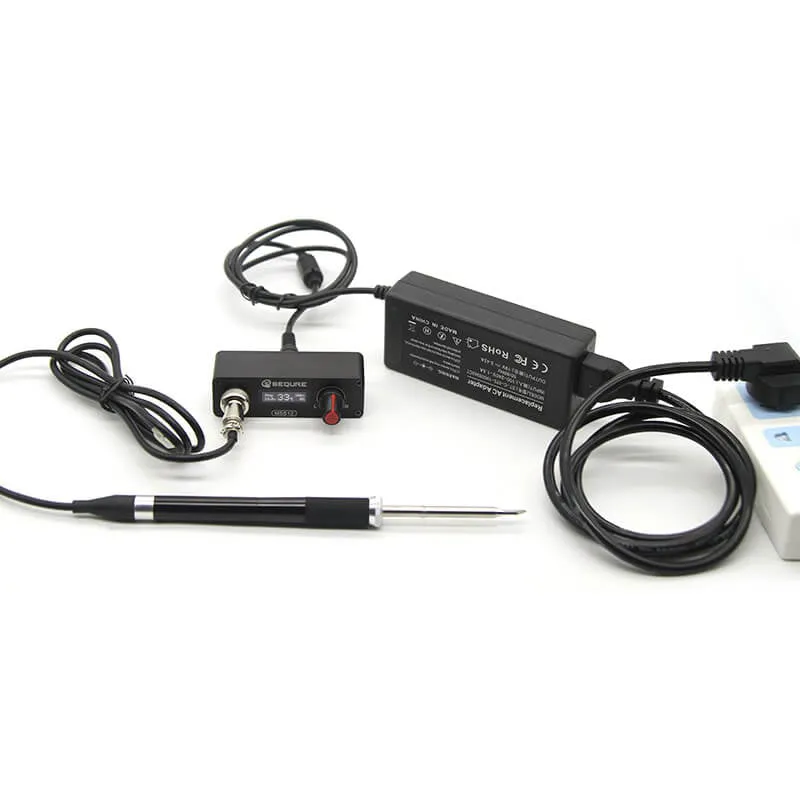

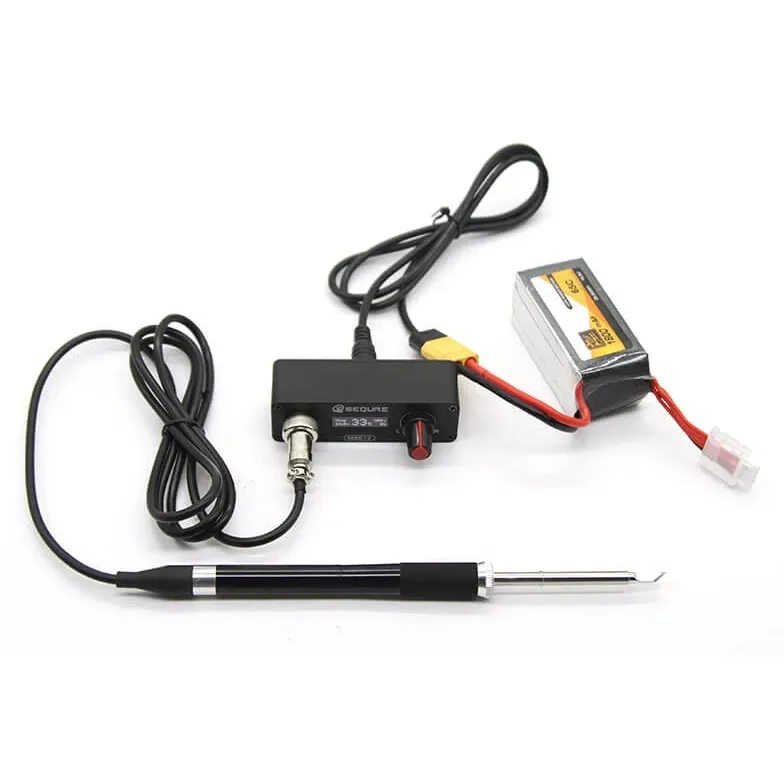

The Sequre MSS12 is a compact, 72W desktop soldering station tailored for FPV drone builders needing reliable heat management on the bench or at the flying field. Operating on either a DC5525 barrel jack or USB-C with PD/QC protocol support, it can easily be powered by a standard bench supply, a high-output power bank, or a 3S-6S LiPo battery via an adapter. The station uses widely available T12-style tips, heating up rapidly to provide enough thermal mass for thick 12AWG battery pigtails while maintaining the precision required for delicate UART pads on flight controllers.

Key features

• Dual power inputs supporting DC5525 (12-25V) and USB-C (PD3.0/QC2.0) for flexible bench or field use

• Integrated 0.91-inch OLED screen for precise real-time temperature monitoring and menu navigation

• Smart firmware featuring programmable sleep, auto-standby, and motion-activated wake functions to preserve tip lifespan

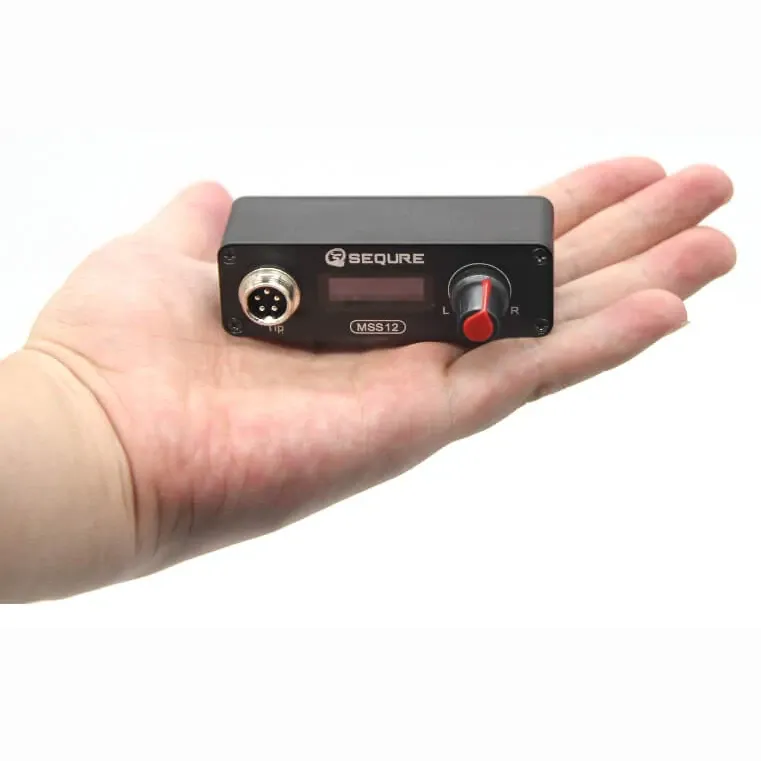

• Machined aluminium alloy body providing a rigid, space-saving footprint

• Accepts all standard Hakko-style T12 integrated heater cartridges

Specifications

• Maximum Power: 72W (DC) / 65W (PD)

• Input Voltage: 12-25V (DC5525) / 9-20V (USB-C)

• Temperature Range: 100°C - 450°C

• Display: 0.91" OLED

• Included Tip: T12-B2 (Conical)

• Chassis Material: Aluminium alloy

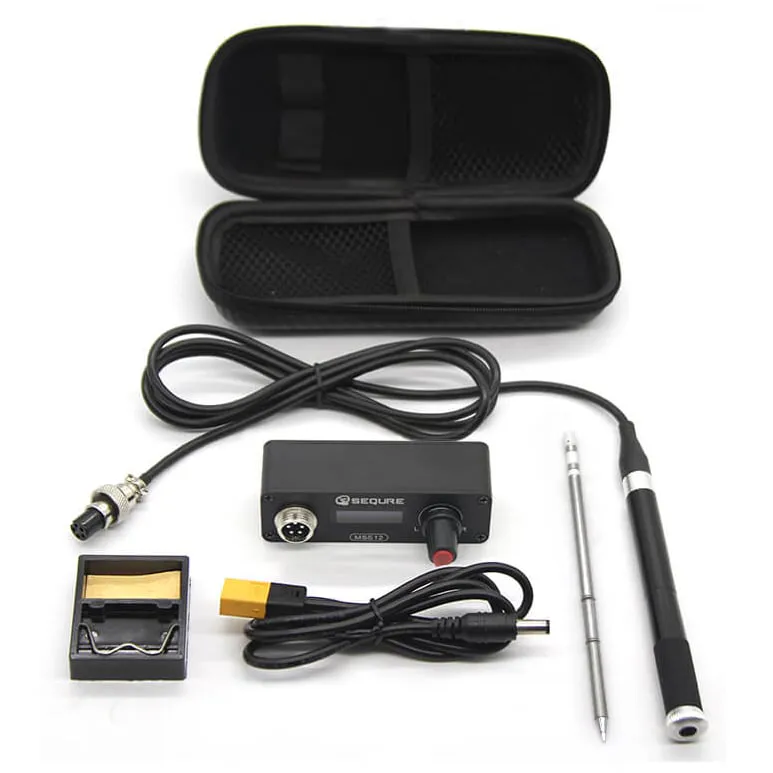

This station includes a general-purpose T12-B2 conical tip. Note that a power supply or XT60-to-DC5525 adapter cable is not included and must be sourced separately.
