SEQURE TS Series Soldering Iron Tips

These SEQURE TS-series replacement soldering tips feature an integrated ceramic heating core and temperature sensor for rapid heat transfer and precise thermal control. Designed as a direct fit for the SEQURE SQ-001 and SQ-D60, these active tips are also fully compatible with industry-standard TS100 and TS101 portable soldering irons.

Key features

• Integrated heating element and thermal sensor for fast temperature recovery on thick copper pads.

• Available in seven distinct geometries to cover everything from micro-soldering to heavy-gauge wire joining.

• Drop-in compatible with SEQURE SQ-001, SQ-D60, and Miniware TS100/TS101 irons.

Specifications

• Compatibility: SEQURE SQ-001, SQ-D60, TS100, TS101

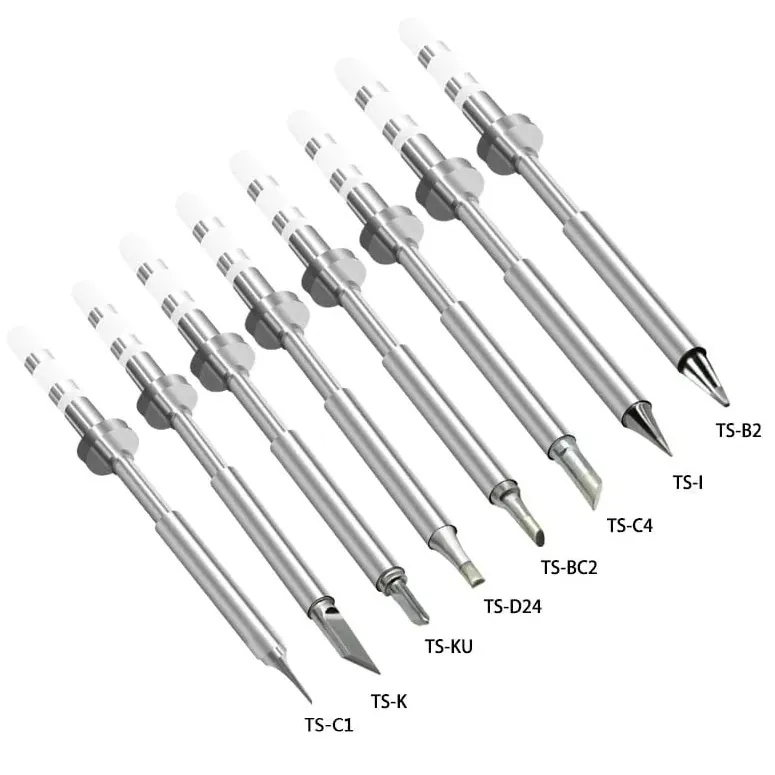

• Available profiles: B2 (Conical), BC2 / C4 (Bevel), D24 (Chisel), I (Fine point), K / KU (Knife)

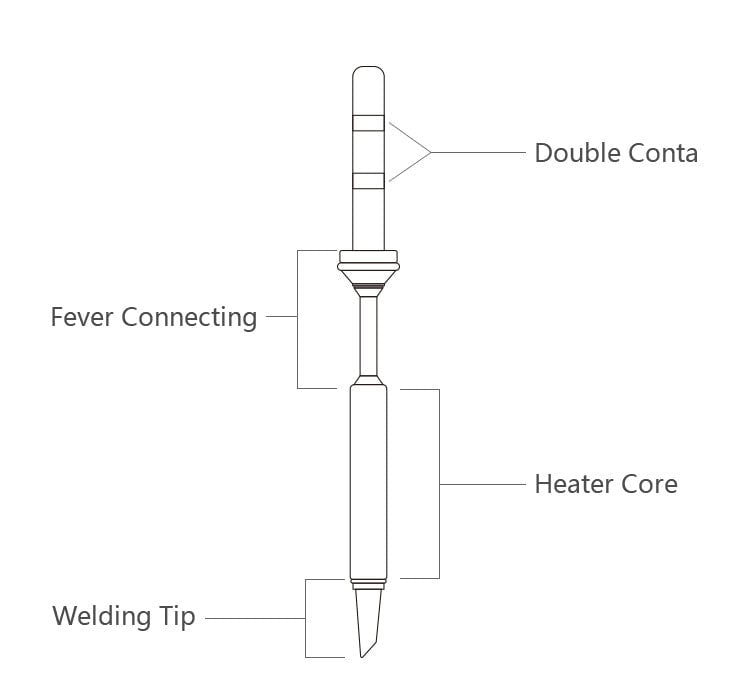

• Design: Active tip (integrated heater core)

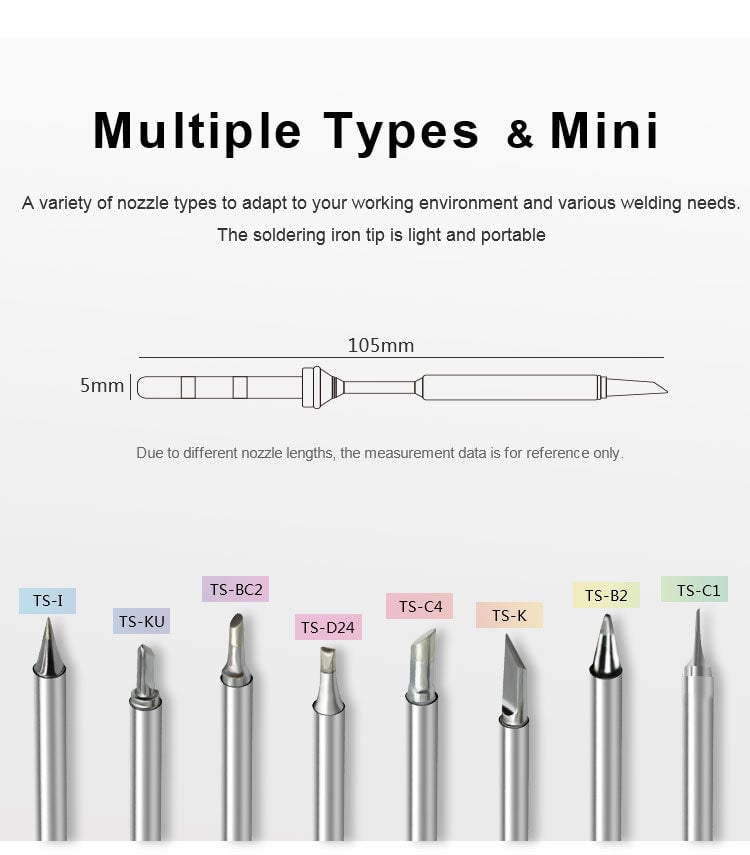

• Overall length: Approx. 105mm (varies slightly by profile)

For FPV drone builders, the heavy-duty C4 bevel or K knife tips are ideal for soldering XT60 pigtails and thick ESC battery leads, while the fine-tipped I or B2 profiles excel at delicate receiver and flight controller wiring.
