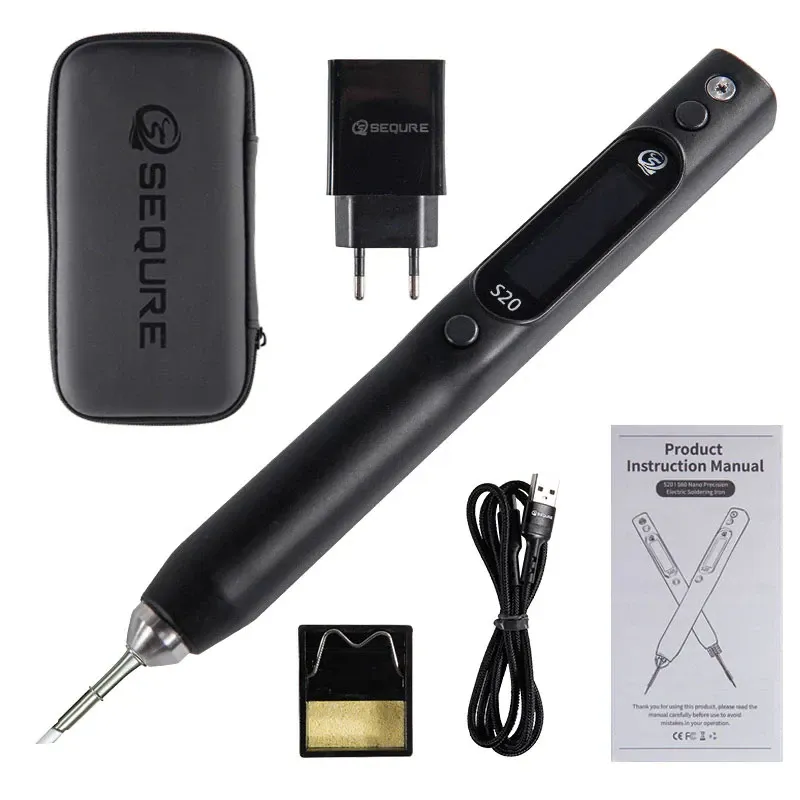

SEQURE S20 Nano Soldering Iron Kit

The SEQURE S20 Nano is a pen-sized USB-C soldering iron built for FPV field repairs and close-up bench work on delicate flight-controller and VTX pads.

Key features

• Runs from any USB-C PD or QC power supply up to 9V, so a phone charger or power bank is enough to get soldering.
• Wide 50-500°C adjustable range with intelligent temperature compensation and self-calibration for consistent tip heat under load.
• 0.91-inch OLED screen with a left/right-hand flip and °C/°F switching, plus a buzzer to confirm working temperature is reached.
• Anti-static, high-temperature-resistant shell keeps the iron safe to handle around sensitive electronics.
• Supplied with the K-style (knife) tip from the C115 tip family, good for drag soldering and general wire work.

Specifications

• Power input: USB-C, PD2.0/3.0 and QC2.0/3.0, up to 9V
• Temperature range: 50-500°C
• Tip compatibility: C115 series
• Included tip: C115-K (Knife)
• Display: 0.91in OLED
• Iron size: 120 x 10 x 12 mm

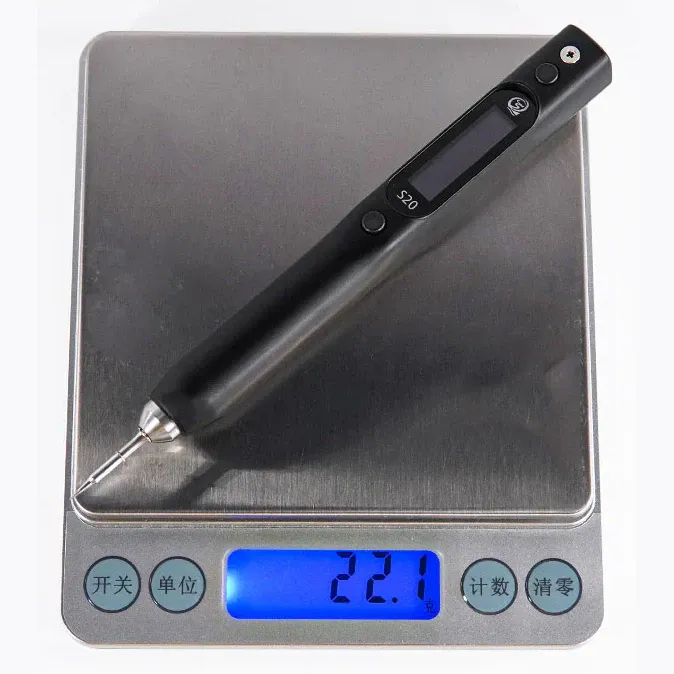

• Weight: approx. 22 g (iron only)

Its small diameter and light weight make it easy to keep in a field kit alongside a USB-C power bank, ready for quick connector and pad repairs between packs.
