SEQURE T12 Soldering Iron Tip

The Sequre T12 tip range is a drop-in cartridge for T12-compatible soldering irons and stations, integrating the heating element and temperature sensor into the tip for fast heat-up and steady recovery between joints.

Key features

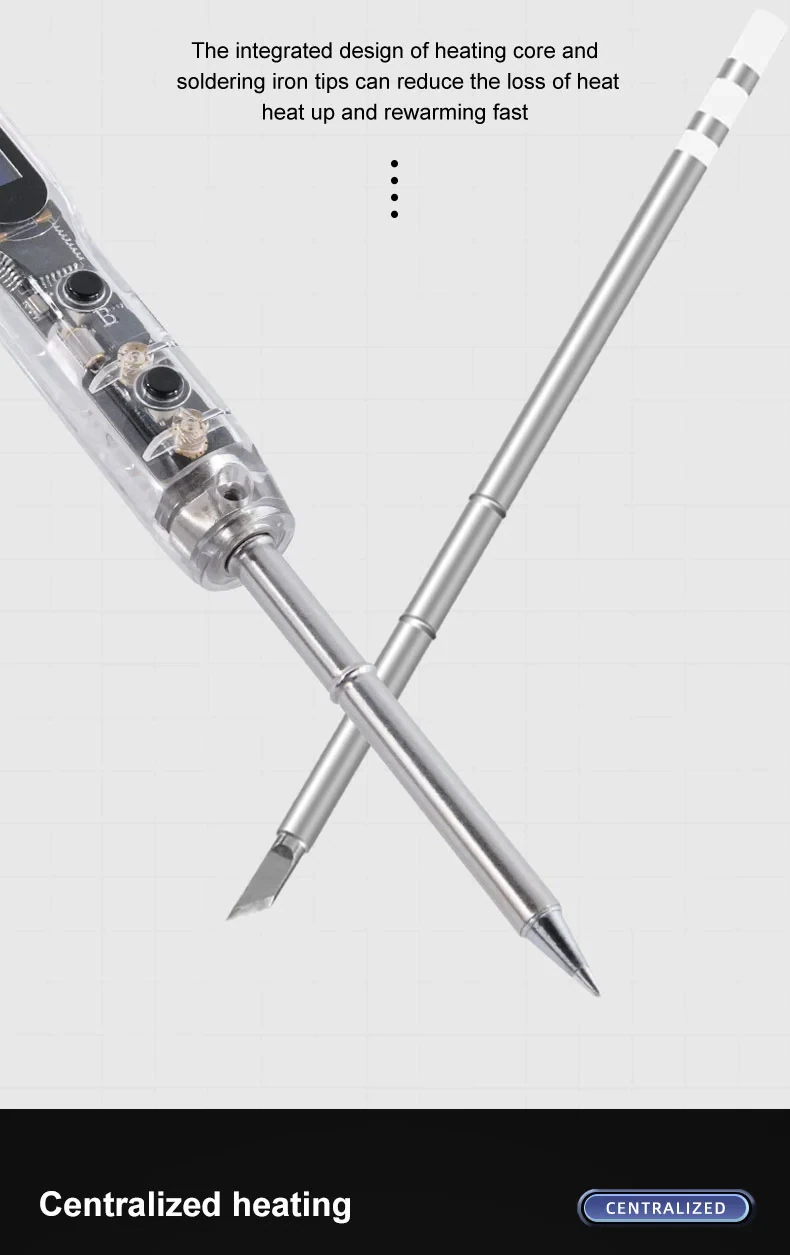

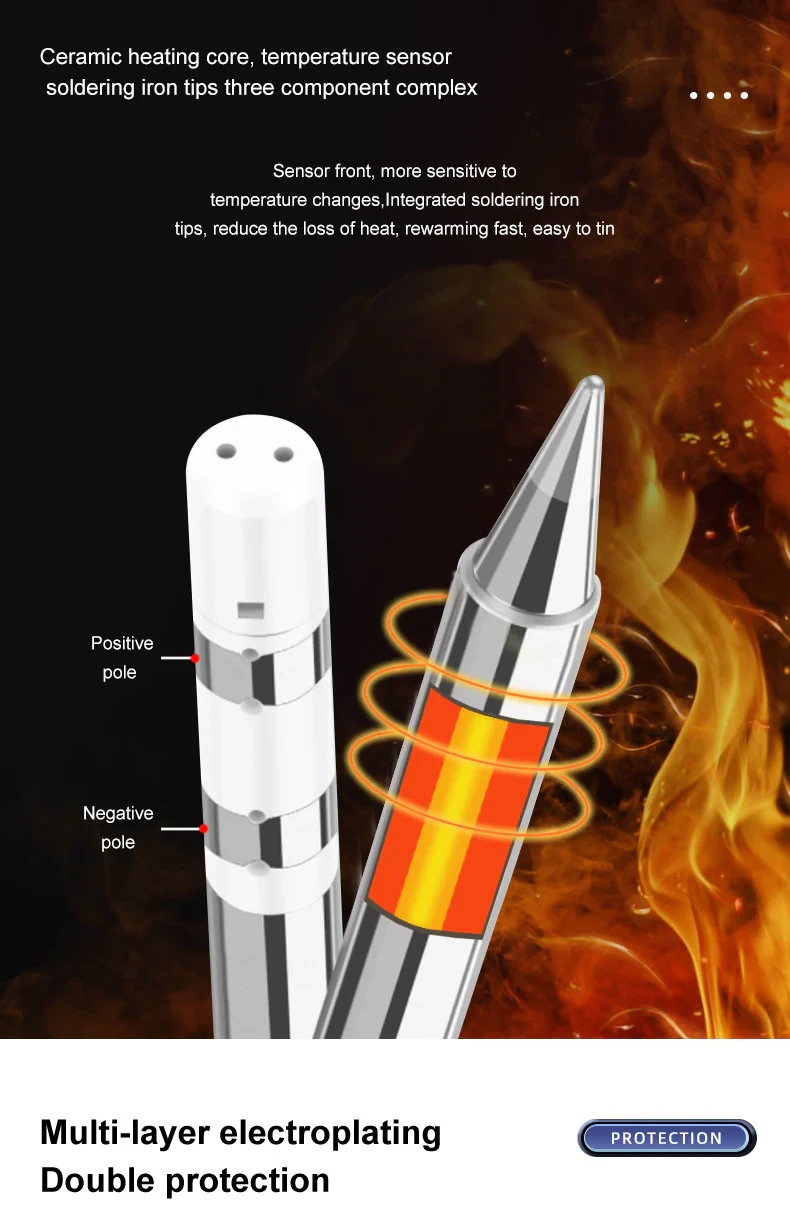

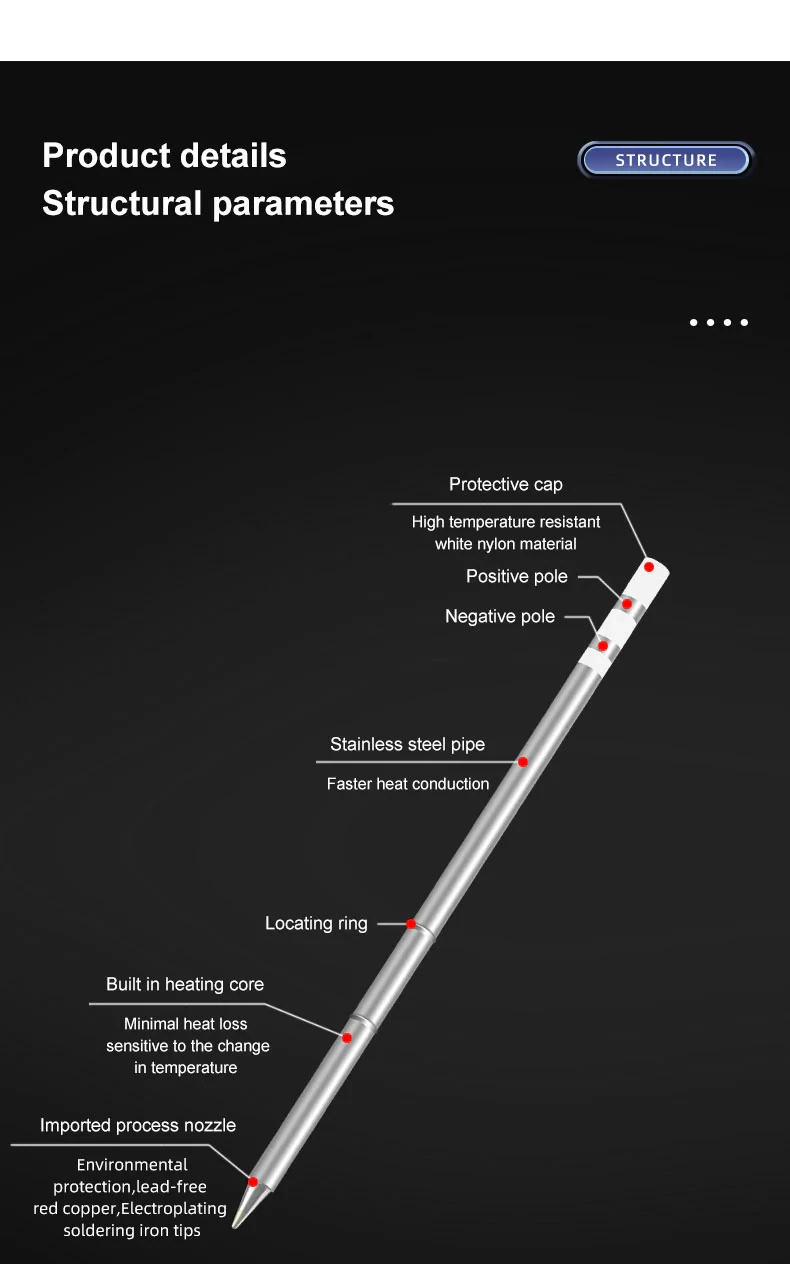

• All-in-one cartridge design combines the tip, heating element and temperature sensor in a single 155mm unit.

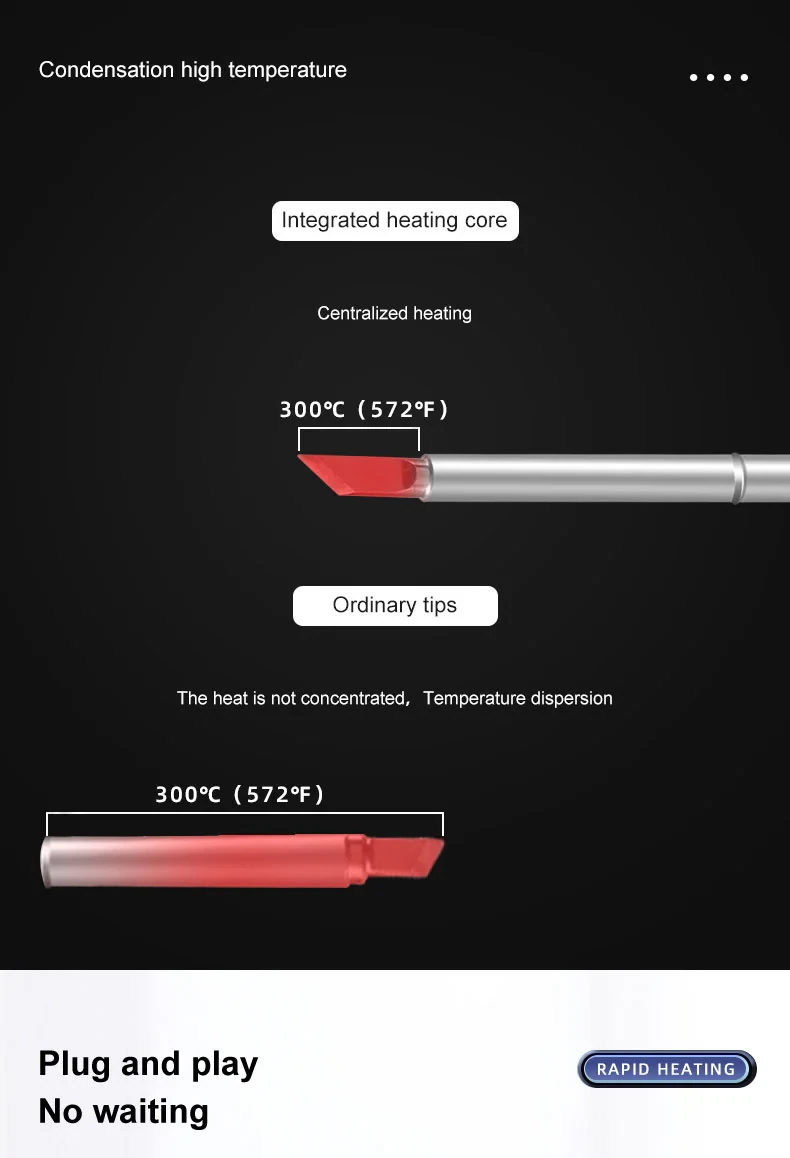

• Reaches 450°C from cold in around 8 seconds, so temperature does not sag through a run of consecutive joints.

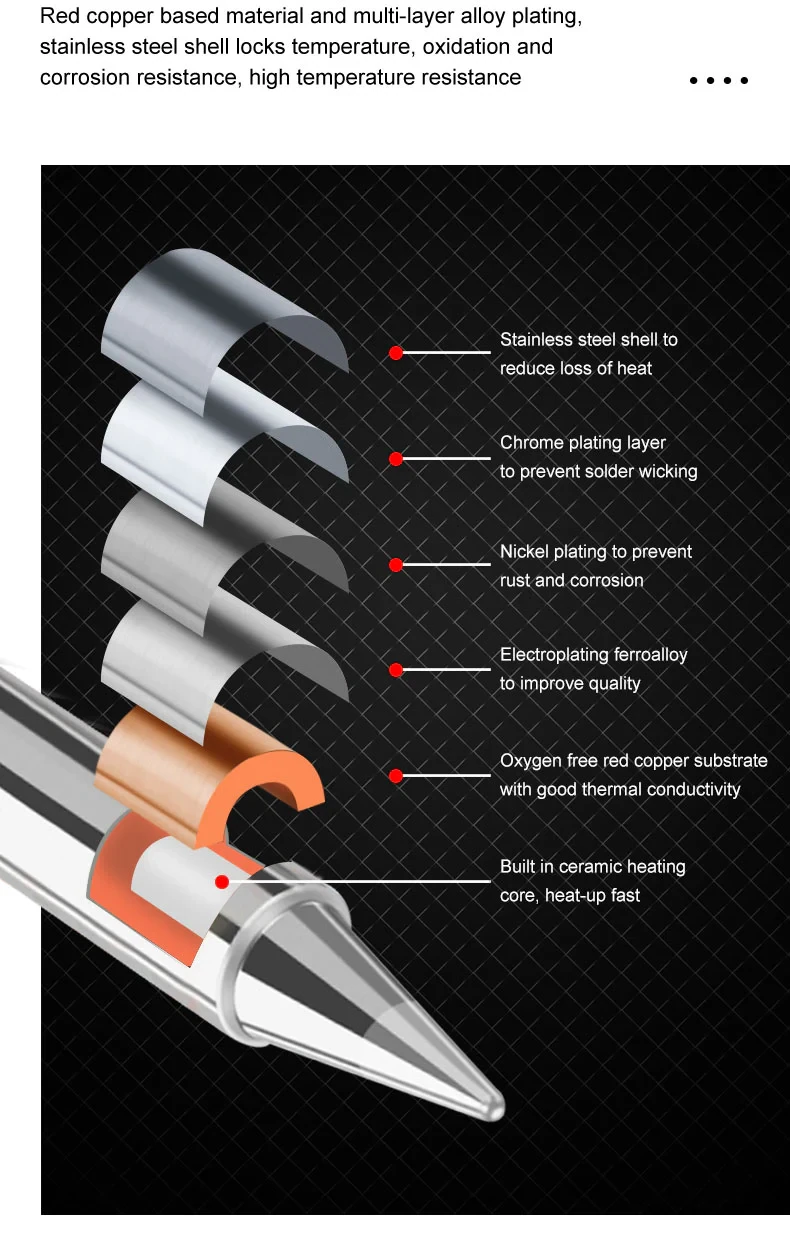

• A copper tip base with multi-layer alloy plating resists oxidation and holds its edge over repeated use.
• Stainless steel casing cuts heat loss along the shaft and improves durability.

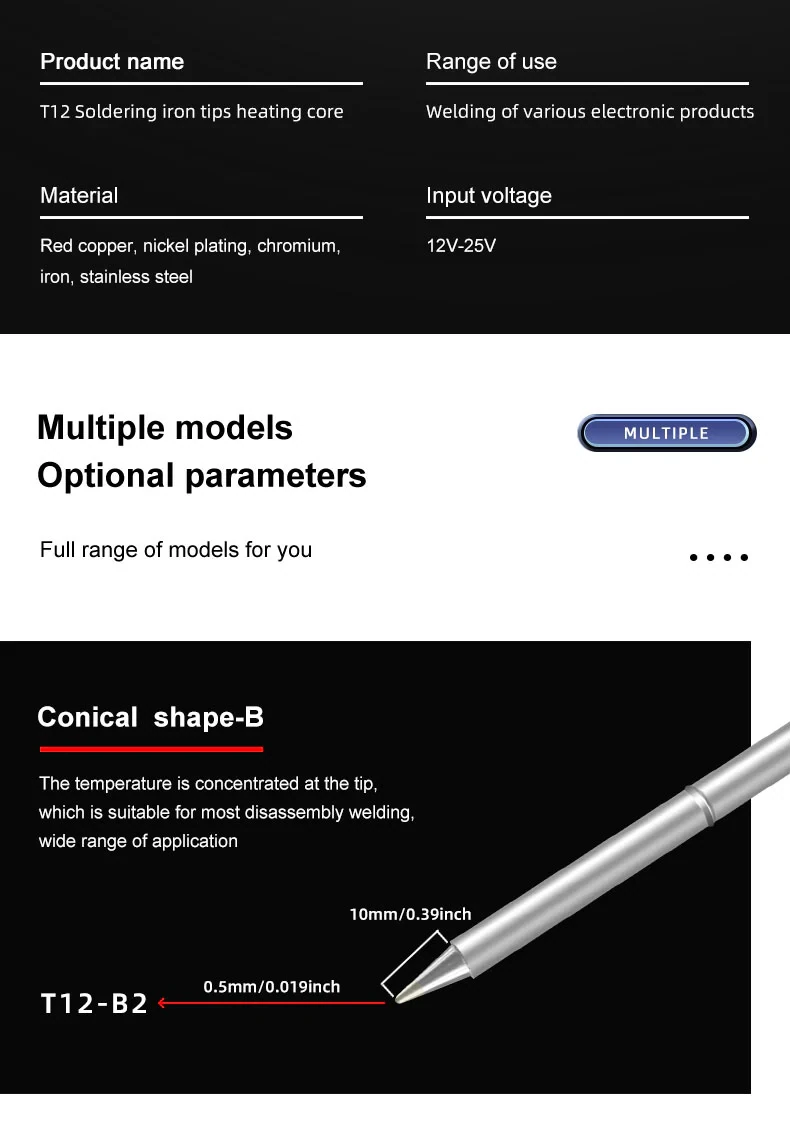

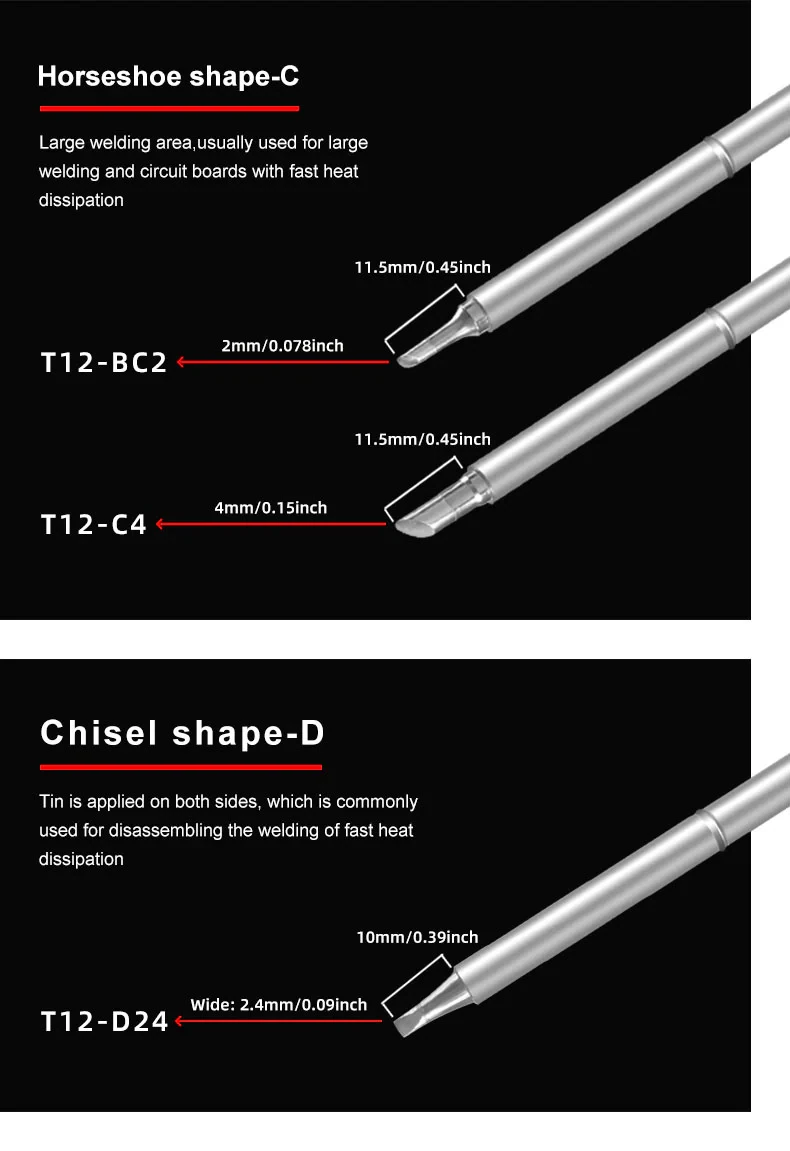

• B2 gives a fine conical point for FPV electronics and PCB work; D24 gives a larger chisel-style point for bulkier joints and wire tinning.

Specifications

• Cartridge style: Standard T12

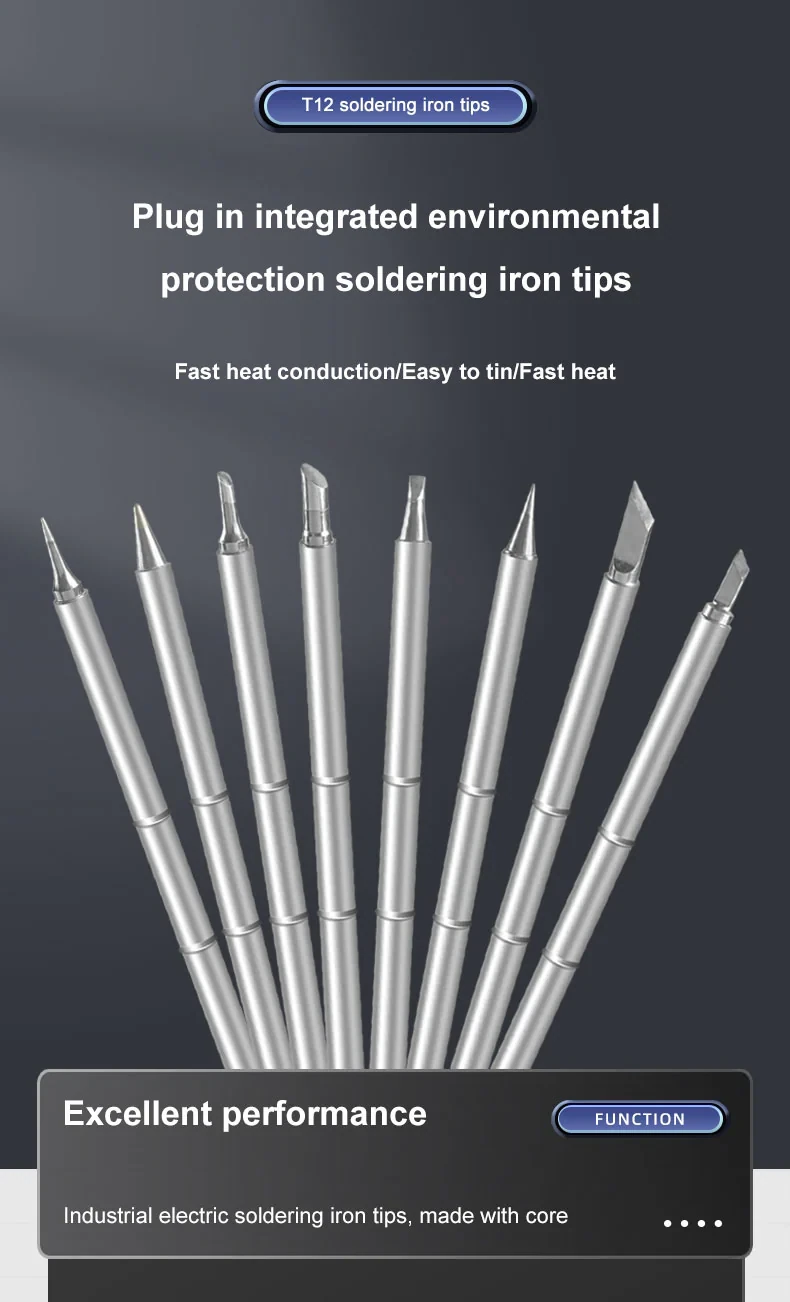

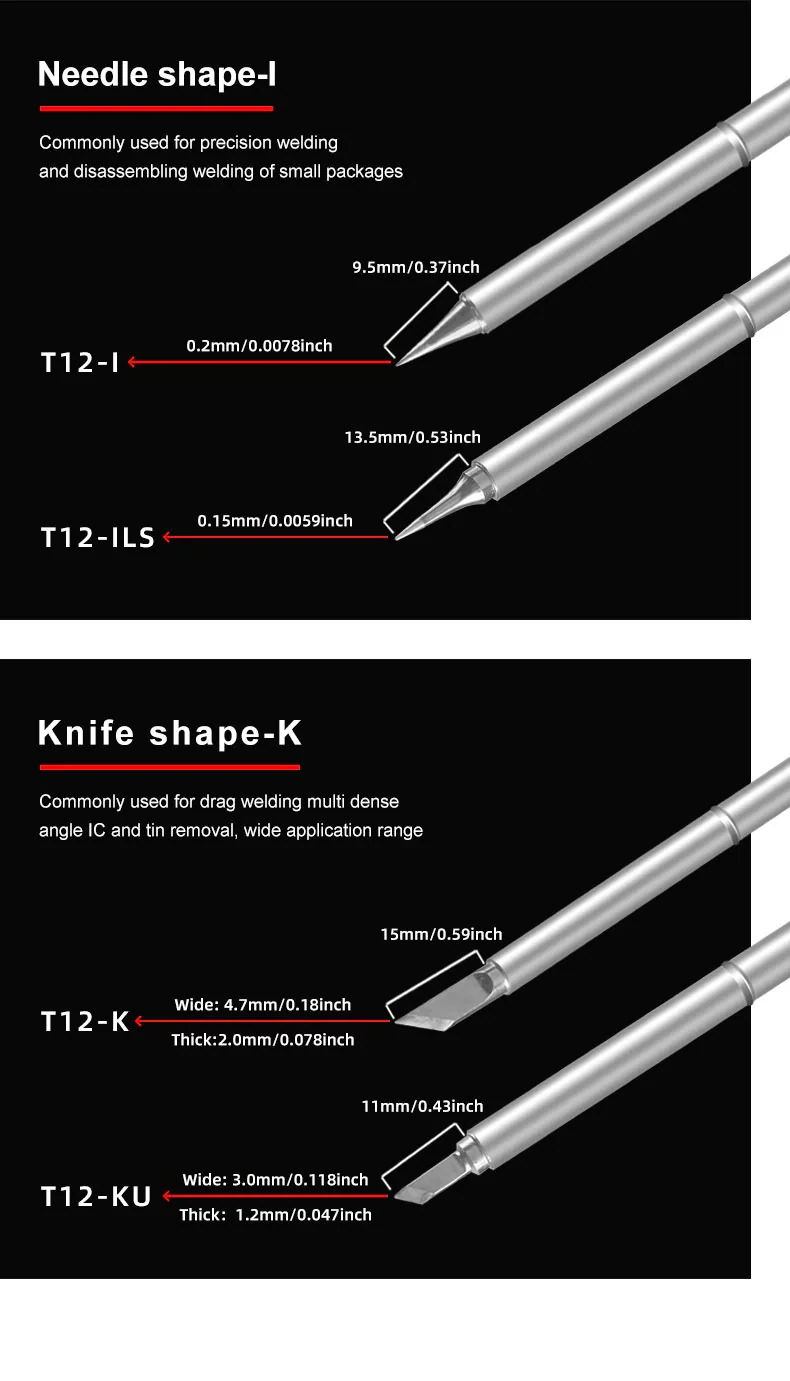

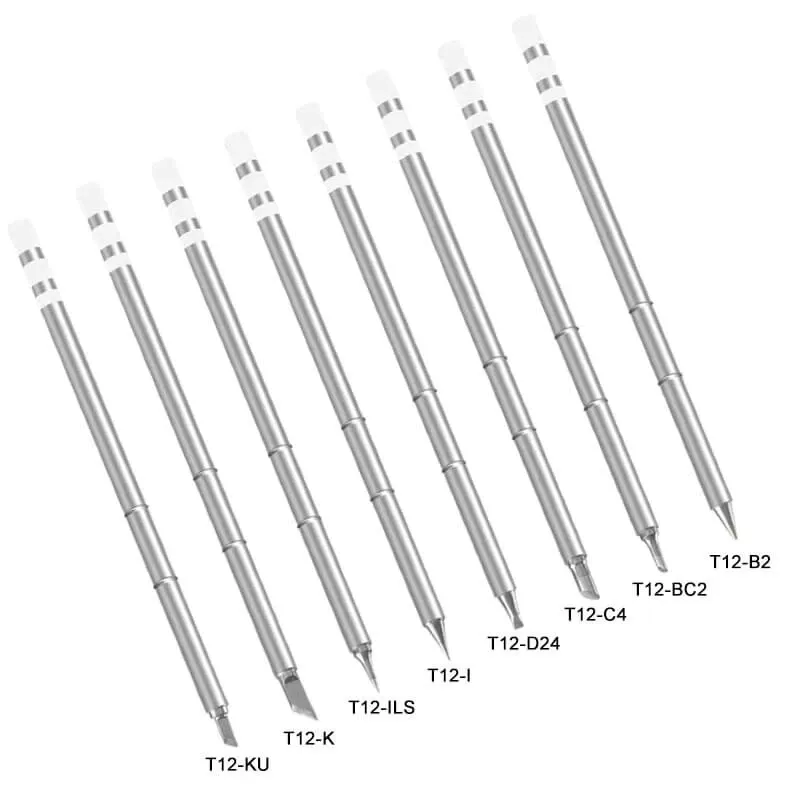

• Available tips: B2, BC2, D24, I, ILS, K
• Length: 155 mm
• Diameter: 6.2 mm
• Weight: 8 g
• Maximum power: 72W (at 24V)
• Heat-up time: ~8 seconds to 450°C

Pick B2 for delicate flight-controller UARTs and small pads, or D24 when you need more thermal mass for wire joints and general-purpose work.
