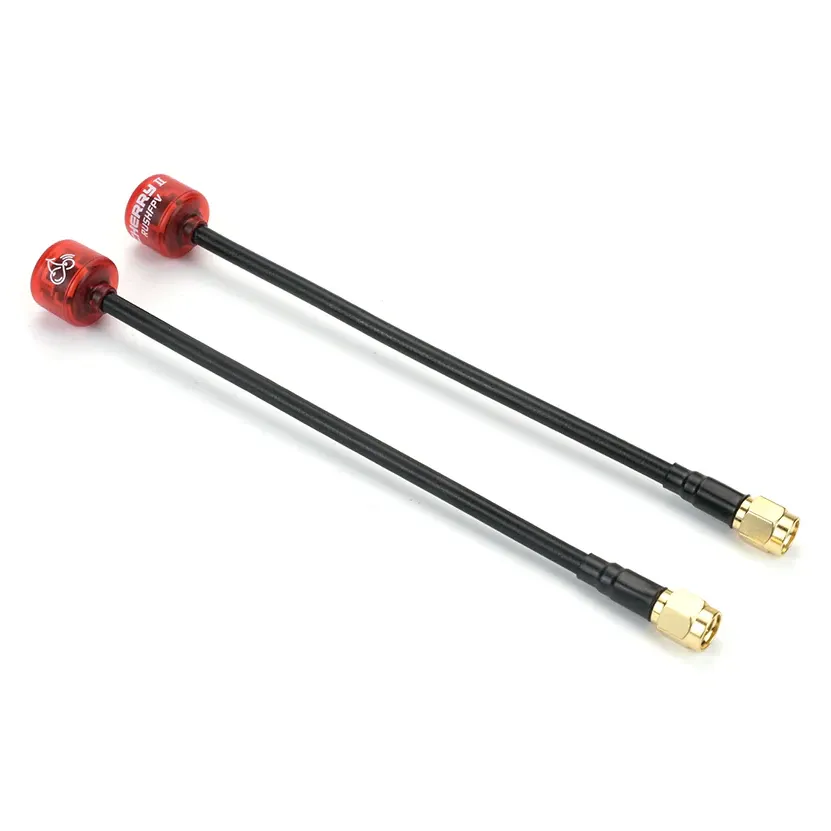

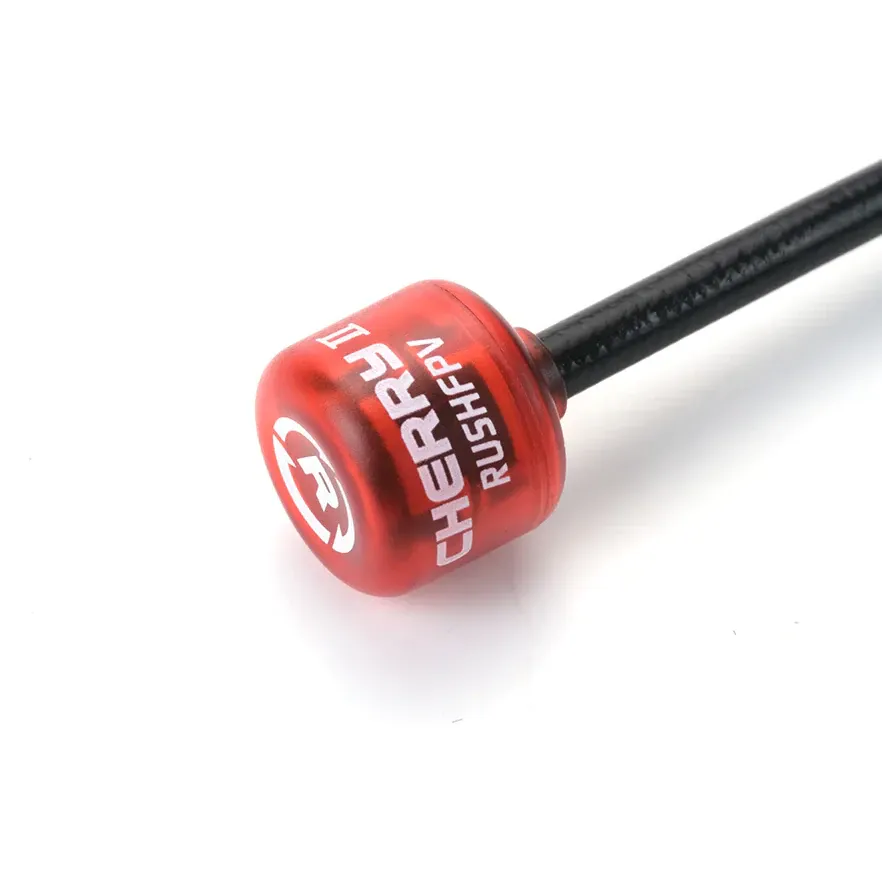

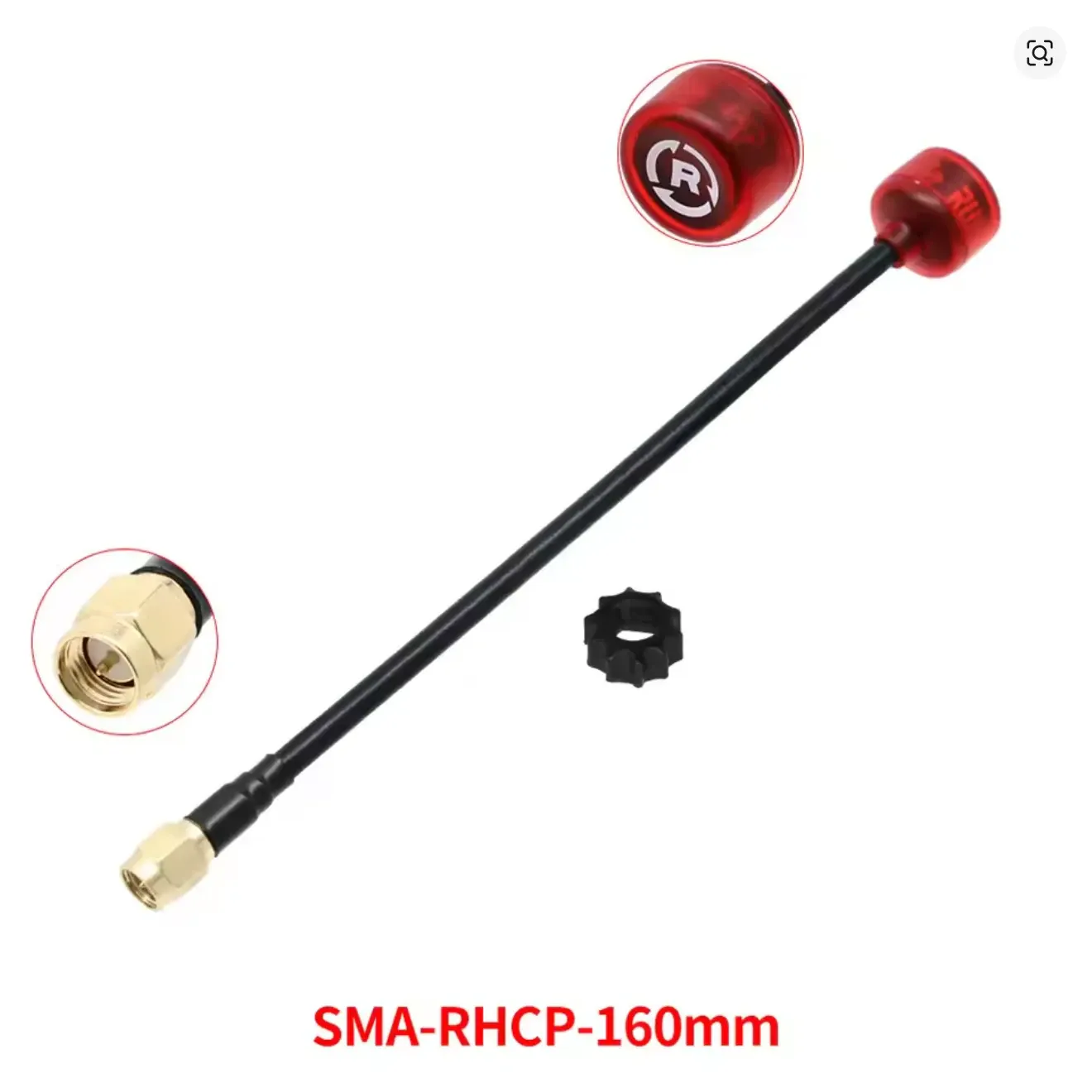

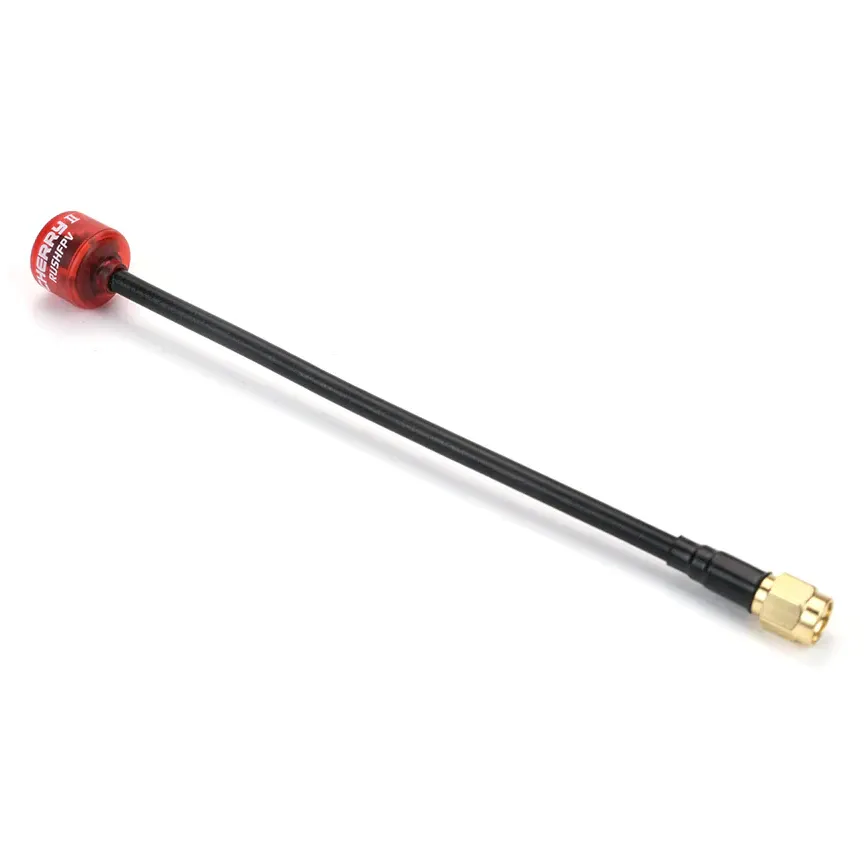

RushFPV Cherry Ultra Extended 5.8GHz SMA Antenna 160mm
SKU RUSH-CHERRY-ULTRA-160-SMA
Free shipping. Pan India delivery from Gurugram, Haryana.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The RushFPV Cherry Ultra Extended is a high-performance 5.8GHz omnidirectional antenna designed for long-range, freestyle, and cinematic FPV drones. Featuring a 160mm extended coax, this antenna ensures the active element clears your carbon fibre frame and battery payload, significantly reducing signal shadowing and dead zones for a more reliable video link.
Key features
- Extended 160mm length to elevate the active element above large batteries and frame plates.
- High 98% radiation efficiency for consistent, deep-penetrating 5.8GHz signal coverage.
- Durable, impact-resistant outer housing protects the delicate internal elements from crash damage.
- Semi-rigid coaxial cable holds its precise mounting angle during aggressive flight manoeuvres.
Specifications
- Operating frequency: 5.6-6.0GHz
- Gain: 1.2 dBi
- Polarisation: RHCP
- Axial ratio: approx. 1.0
- VSWR: 1.1-1.4 (below 1.2 from 5650-5950MHz)
- Radiation efficiency: 98%
- Connector: SMA
- Length: 160mm (140 mm from the end of the SMA to the base of the antenna)
With its robust construction and extended clearance, this antenna is an essential upgrade for analogue or digital video transmitters requiring an SMA connection, particularly on 5-inch to 8-inch builds where optimal antenna placement is critical.
| Polarization | RHCP |
|---|---|
| Antenna Connector | SMA |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | RushFPV |
