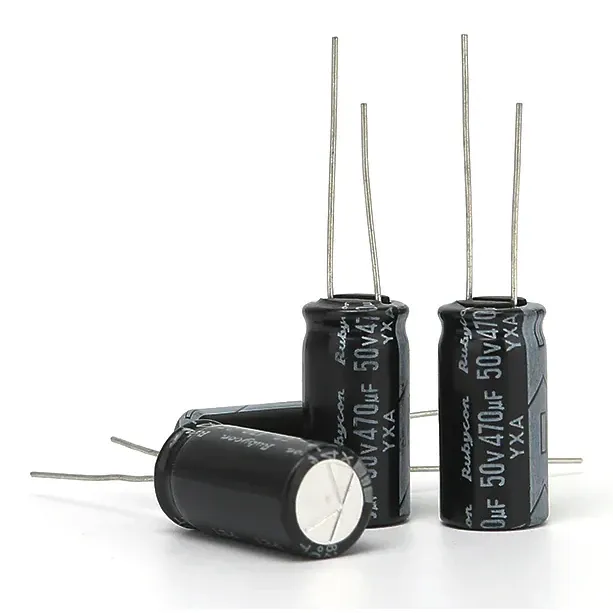

Rubycon 50V 470µF Capacitor (10×22mm)

The Rubycon 50V 470µF electrolytic capacitor is a standard protective component for 6S FPV drones, designed to filter out severe voltage spikes and electrical noise. Soldered directly to the main power pads of your ESC, this low-ESR capacitor absorbs the aggressive surges generated by motor active braking. This prevents blown ESCs and flight controllers while heavily reducing diagonal lines and interference in your analog or digital video feed.

Key features

• High Voltage Overhead: At 50V, this capacitor easily handles the extreme voltage spikes typical of 25.2V (6S) powertrains, where 35V caps risk failure.
• Low ESR: Ensures rapid discharging and highly efficient noise filtering for cleaner VTX signals and smoother gyro performance.
• Frame Friendly: Measuring 10×22mm, the radial footprint tucks easily behind the camera or alongside the stack in 5-inch freestyle and racing frames.

Specifications

• Capacitance: 470µF
• Voltage Rating: 50V
• Type: Radial Aluminium Electrolytic (Low ESR)
• Dimensions: 10 × 22 mm
• Lead spacing: 5 mm
• ESR: 27 mOhm
• Ripple current: 2.05 A
• Tolerance: +/-20%
• Rated life: 10,000 hours
• Maximum operating temperature: 105 degC

Note: Always observe correct polarity when soldering. The negative terminal is marked by a stripe along the side of the casing.
