iFlight Anti Spark Filter

The iFlight Anti Spark Filter protects your drone's electronics and battery connectors from the voltage spikes and arcing that occur when plugging in a LiPo. Ideal for 3S to 6S freestyle quads, heavy-lift cinelifters and macro builds, this filter extends the lifespan of your XT60 connectors while shielding your ESC and flight controller from surges caused by inrush current.

Key features

• Eliminates plug-in arcing to prevent connector pitting, carbon build-up and increased electrical resistance.
• Absorbs transient voltage spikes generated during battery connection and ESC active braking.
• Rated for 3-6S (9-26V) input and 30A continuous overcurrent for up to 60 minutes.
• Available in two footprints (18x16mm at 2.4g, 25x18mm at 2.6g) to match your build scale and wire gauge.

Specifications

• Input voltage: 3-6S (9-26V)
• Continuous overcurrent: 30A for 60 minutes
• Peak current: 35 A for 10 s

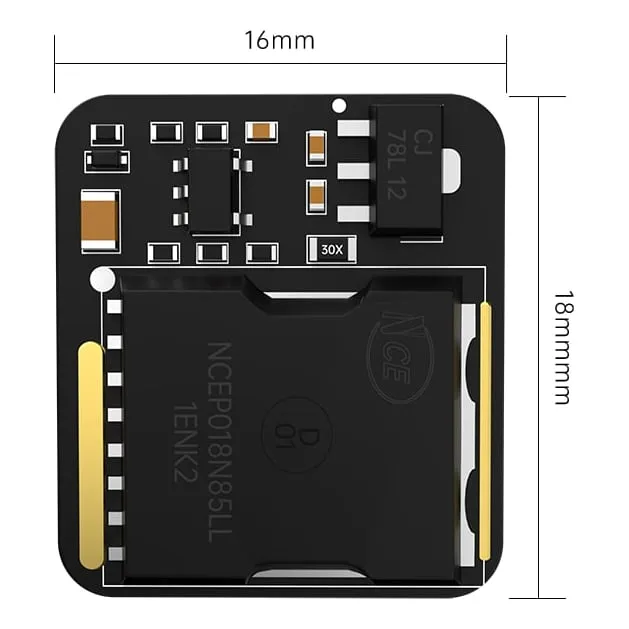

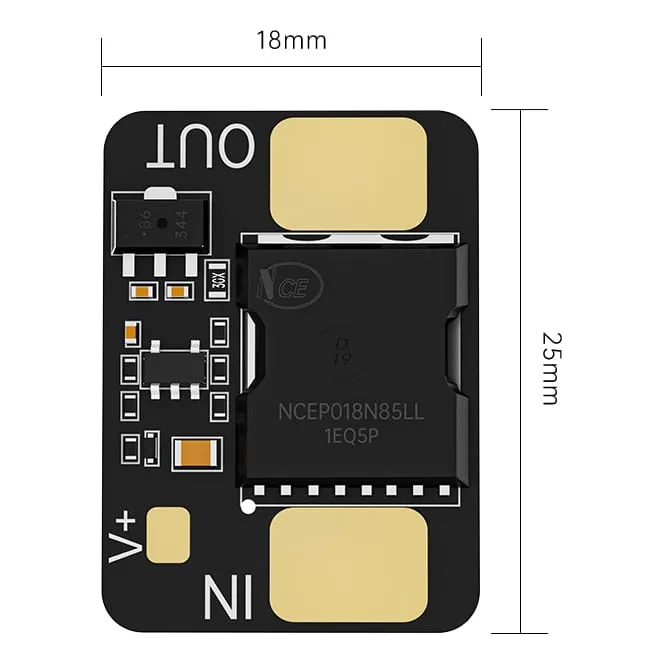

• Dimensions: 18x16mm or 25x18mm (variant dependent)
• Weight: 2.4g (18x16mm) or 2.6g (25x18mm)
• 18x16mm version fits: Nazgul5 V3 / Nazgul XL5 V3, Nazgul DC5 and BOB57 frames
• 25x18mm version fits: Nazgul Evoque F4, Evoque F5 V2, Evoque F6 V2 and SH CineFlow 5 frames

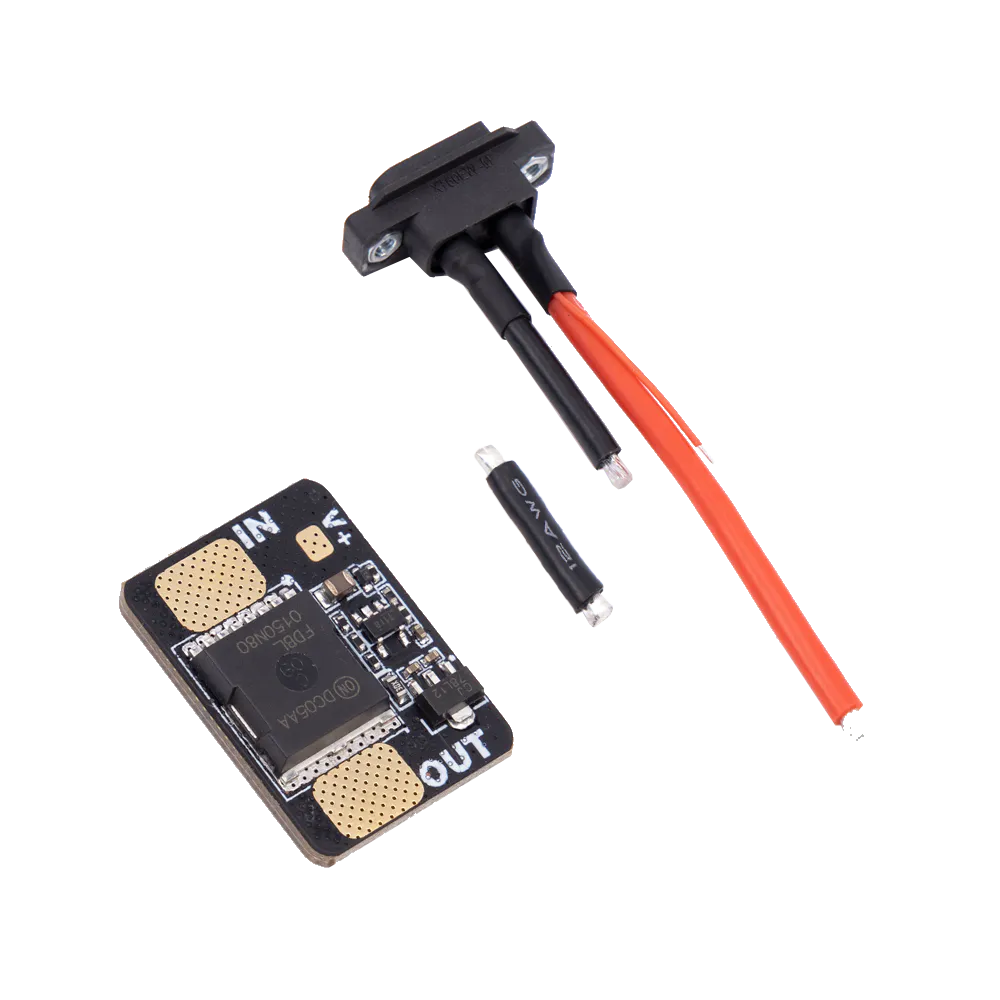

• In the box: anti-spark filter, cable set, XT60E-M plug

For the most effective protection on high-cell-count setups, solder the filter directly to your ESC battery pads or inline with your main power lead alongside a standard low-ESR capacitor.
