Rekon FPV Rekon35 Nano LR 3.5" 2S Frame Kit — HD Vista
SKU REKON-35-NANO-LR-VISTA
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

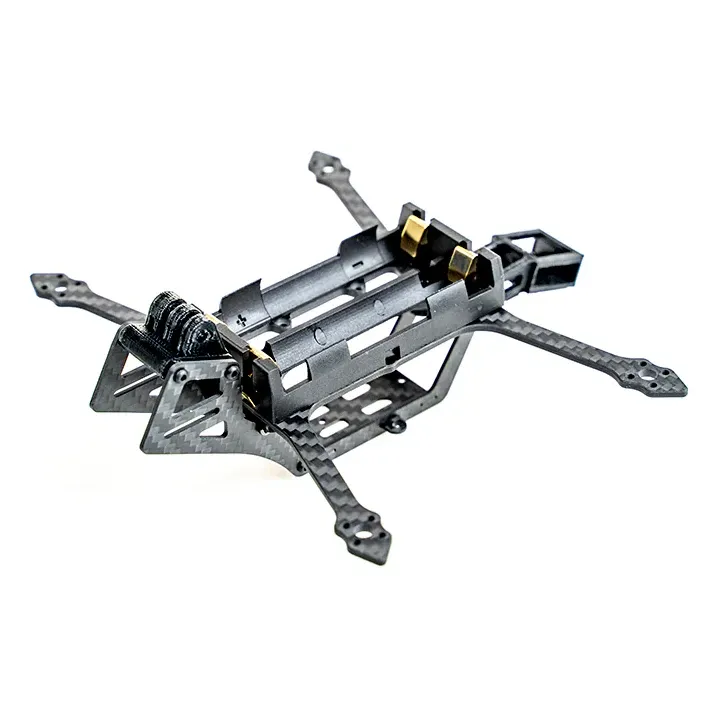

The Rekon FPV Rekon35 Nano LR is a sub-250g, 3.5-inch micro long-range frame kit purpose-built to house a Caddx Vista or RunCam Link digital HD system. Designed by Dave_C FPV, this chassis leverages 3.5-inch propellers to provide noticeably better wind resistance and cruising efficiency than traditional 3-inch micro builds, while keeping the overall mass low enough for efficient 2S power plants.
Key features
- Dedicated mounting geometry and clearance for a Vista/Link HD VTX and antenna
- Expanded 3.5-inch prop footprint for increased payload capacity and cruising stability
- Optimised for lightweight 2S Li-Ion or LiPo long-range power delivery
- Minimalist carbon fibre layout designed to easily stay below the 250g weight limit
Specifications
- Wheelbase: 160mm
- Outer size: 150 x 150 mm
- Material: 3K carbon fibre

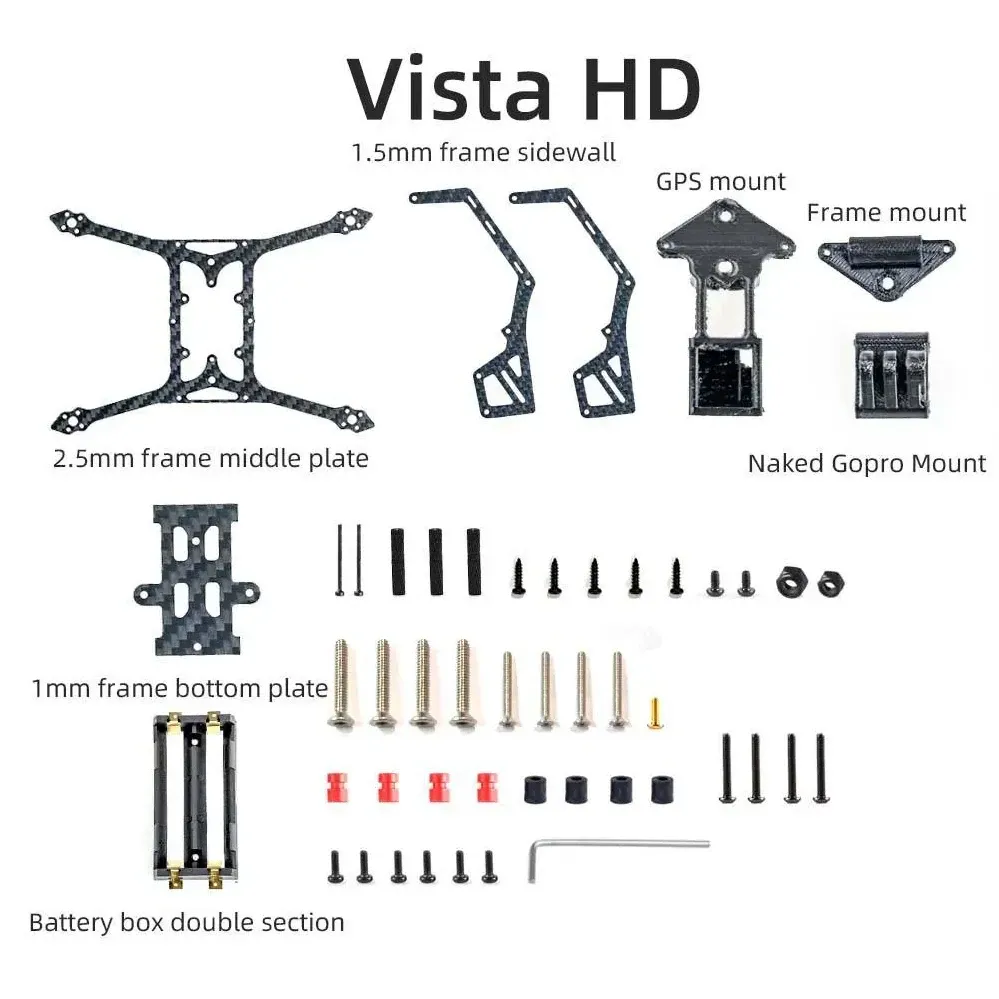

- Plate thickness: 2.5 mm middle plate/arm, 1.5 mm side arms, 1 mm floor
- Propeller support: 3.5 inch
- Flight controller mounting: 25.5x25.5mm
- Motor mounting: 9x9mm
- Camera size: 19 mm
- Battery: 2S 18650 battery tray
- Supported VTX: Caddx Vista, RunCam Link
- Action camera: carries a Naked GoPro or Insta360 while staying under 250 g
- Weight: 46.4 g
- Recommended parts: 10-25 A AIO flight controller, 13xx/14xx motors, 3-3.5 inch props
For the longest flight times and optimal balance, pair this frame kit with 1303.5 or 1404 motors, an ultralight AIO flight controller, and an efficient 2S Li-Ion battery pack.
| Prop Size | 3.5" |
|---|---|
| Wheelbase | 160 mm |
| Camera Size | 19mm |
| Made in India | No |
| Brand | Rekon |
| Weight | 46.4 g |
| Material | Carbon Fiber |
| Arm Thickness | 2.5 mm |
| Mounting Size | 25.5x25.5 |
| Motor Mount | 9x9mm |
