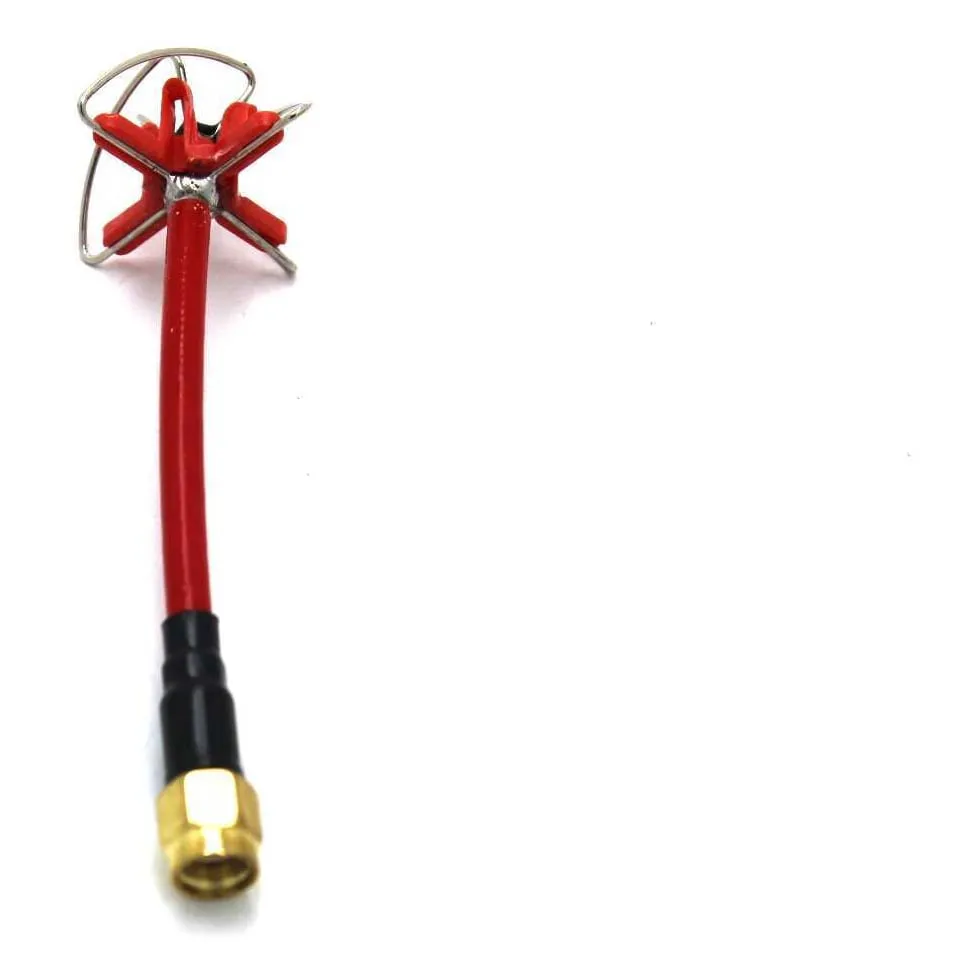

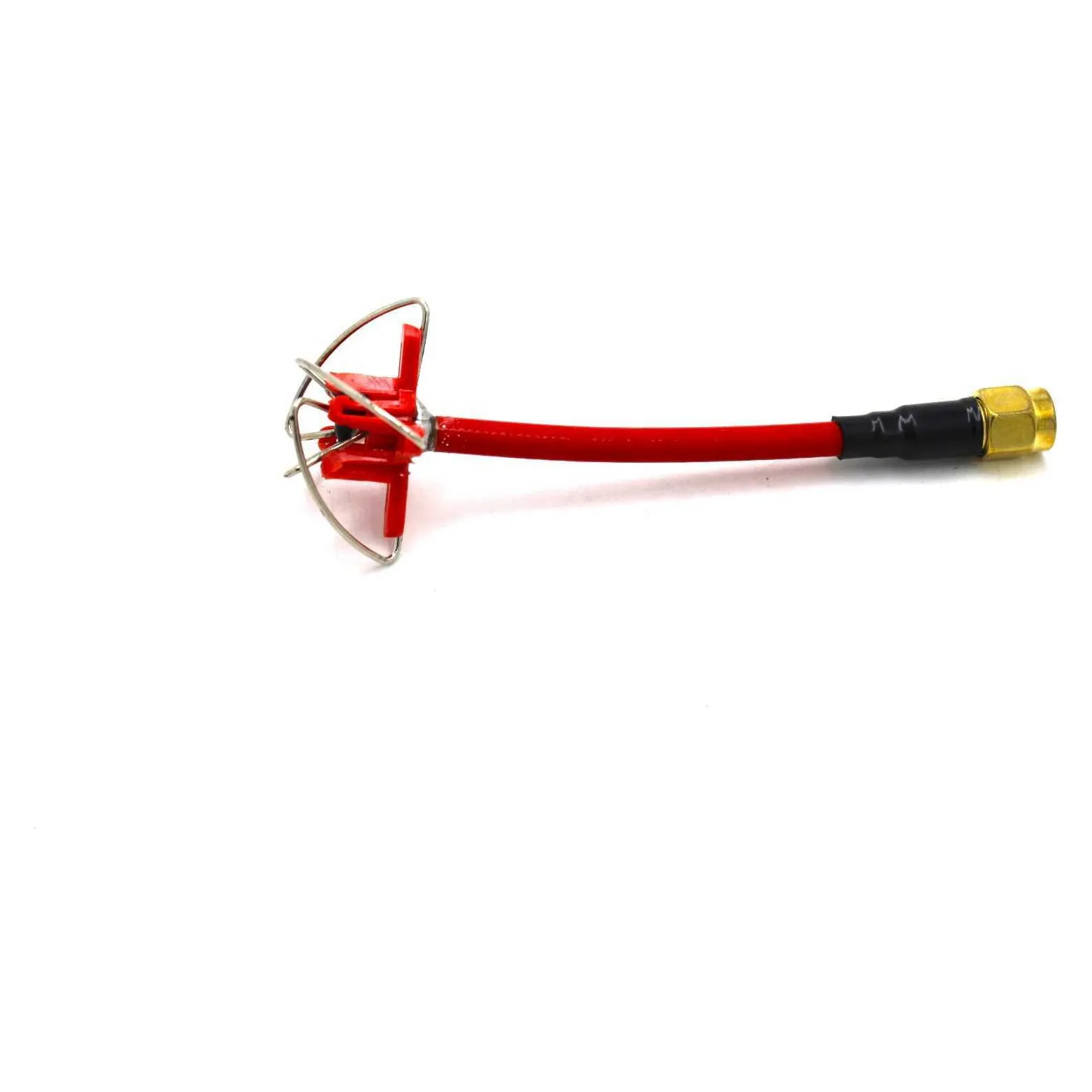

ReadyToSky 4 Leaf Clover 5.8GHz RHCP Antenna, RP-SMA Male
₹419Incl. GST
SKU RTS-CLOVER-RHCP-RPSMA
Polarization: RHCPAntenna Connector: RP-SMAFrequency: 5.8GHzMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
ReadyToSky's four-leaf cloverleaf antenna covers the 5.8 GHz FPV video band with right-hand circular polarisation and an omnidirectional pattern. Its RP-SMA male plug suits video transmitters, goggles and receivers fitted with RP-SMA female jacks.
Key features
- 5.725–5.875 GHz coverage with SWR below 1.5 and 3 dBi gain
- RHCP rejects much of the reflected signal that causes multipath breakup; pair it with RHCP antennas at the other end of the link

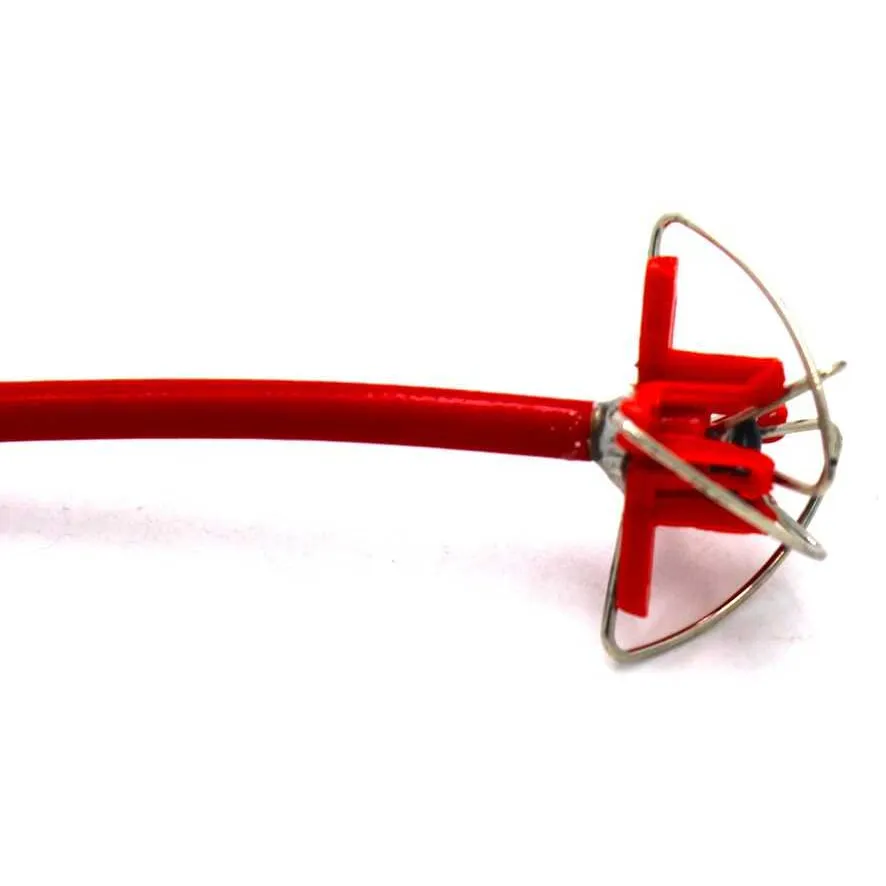

- Omnidirectional four-leaf element with reinforced construction
- 50 Ω impedance, 88 mm long and about 10 g
Specifications
- Frequency: 5.725–5.875 GHz
- Gain: 3 dBi
- SWR: below 1.5
- Impedance: 50 Ω
- Polarisation: RHCP
- Connector: RP-SMA male
- Length: 88 mm
- Weight: 10 g

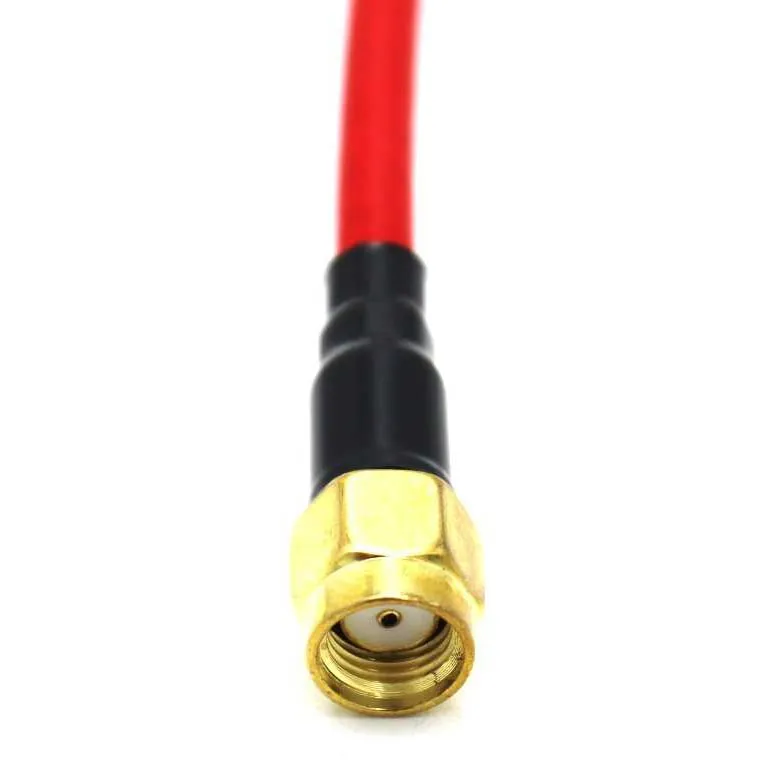

SMA and RP-SMA plugs look almost identical but do not mate: an RP-SMA male has a centre socket, an SMA male a centre pin. Check the jack on your VTX or goggles before ordering.
| Polarization | RHCP |
|---|---|
| Antenna Connector | RP-SMA |
| Frequency | 5.8GHz |
| Made in India | No |
| Brand | ReadyToSky |
| Gain | 3 dBi |
| Antenna Type | Omni |
