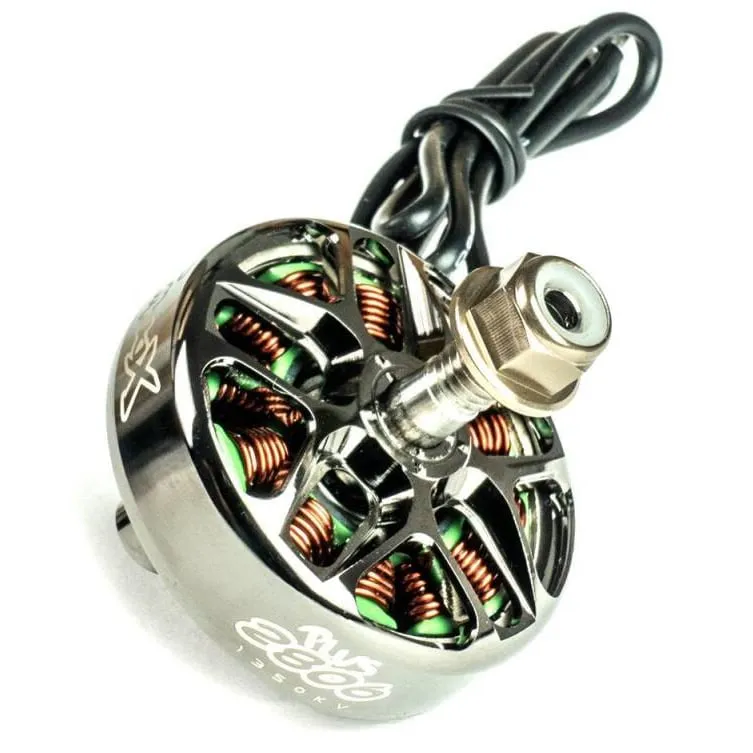

RCINPower SmooX 2806.5 Motor (1350KV, Gun Metal)

The RCINPower SmooX 2806.5 1350KV is a high-torque motor engineered specifically for 7-inch long-range builds, macroquads, and mid-sized cinelifters. With its wide 28mm stator and 6.5mm height, it generates the sustained torque required to swing heavy 7-inch propellers without bogging down or overheating. The 1350KV rating is the standard choice for 6S LiPo setups, striking an ideal balance between cruising efficiency for mountain surfing and the low-end authority needed to carry larger batteries or action cameras.

Key features

• Wide 2806.5 stator delivers massive low-end torque for 7-inch bi-blade and tri-blade propellers.

• 1350KV is optimised for 6S voltage, ensuring efficient long-range cruising and responsive throttle control.

• Machined unibell design in a stealthy gun metal finish for improved crash resilience.

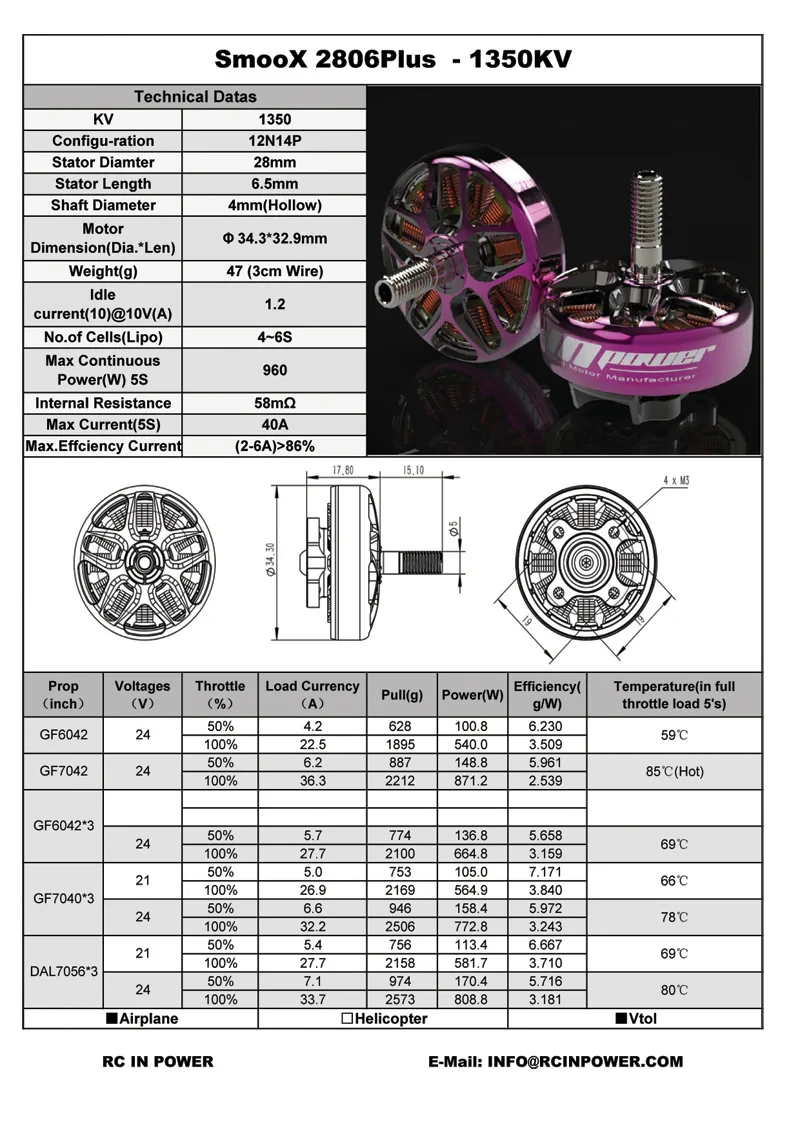

Specifications

• KV: 1350

• Stator Size: 2806.5

• Configuration: 12N14P

• Shaft Diameter: 4 mm (hollow)

• Mounting Pattern: 19x19mm (M3)

• Input Voltage: 4-6S LiPo

• Motor Dimensions: 34.3 x 32.9 mm

• Magnets: N52H arc

• Bearings: 624ZZ (4 x 13 x 5 mm)

• Max Current (5S): 40 A

• Max Continuous Power (5S): 960 W

• Internal Resistance: 58 mOhm

• Weight: 47 g (with short wire)

For optimal reliability and throttle response on a 6S build, pair this motor with a 50A or higher ESC and 7-inch propellers like the HQProp 7x4x3 or Gemfan 7040.
