NewBeeDrone Hummingbird 305 4-in-1 ESC 80A 3-8S AM32
NewBeeDrone Hummingbird 305 4-in-1 ESC 80A 3-8S AM32
NewBeeDrone
4-in-1 ESCs

NewBeeDrone Hummingbird 305 4-in-1 ESC 80A 3-8S AM32

₹7,599Incl. GST

SKU NBD-HUMMINGBIRD-305-80A

Mounting Size: 30.5x30.5ESC Current: 80 AInput Voltage: 3–8SESC Firmware: AM32

Ships within 3–4 business days — quality-checked in Gurugram before dispatch

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

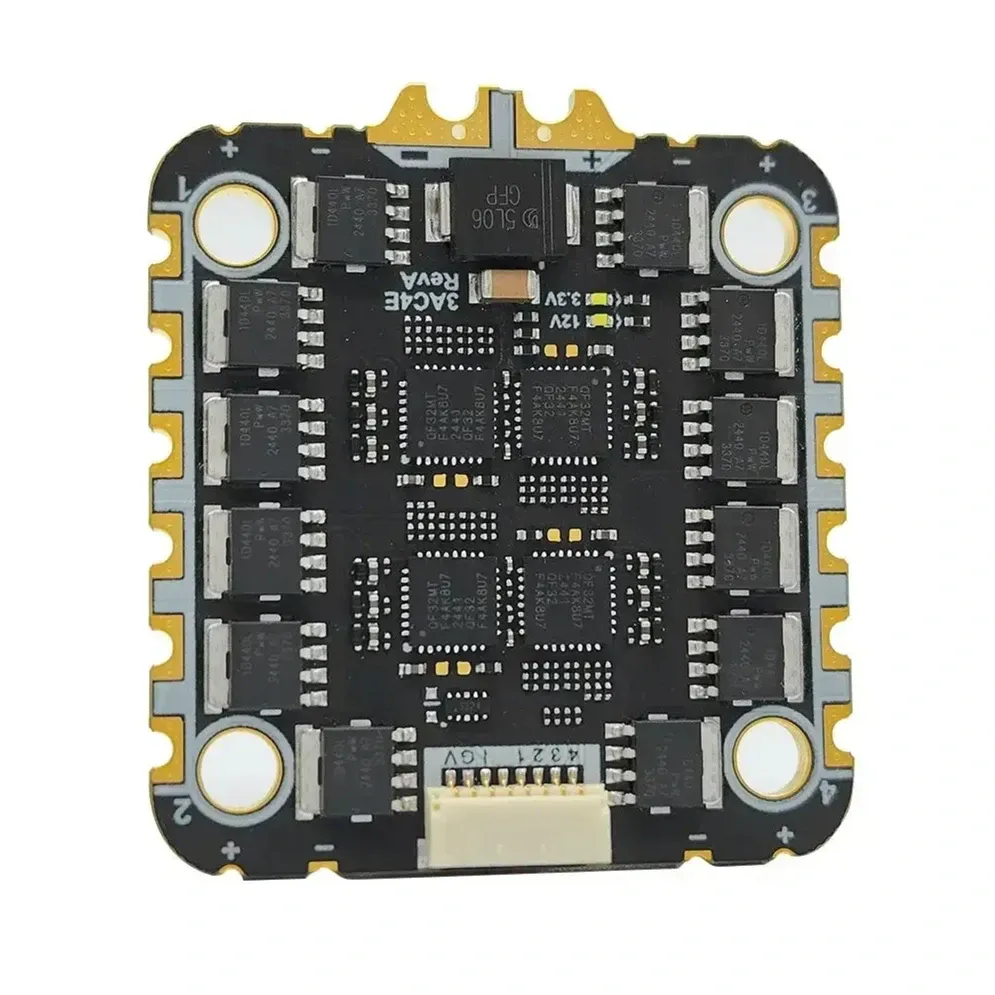

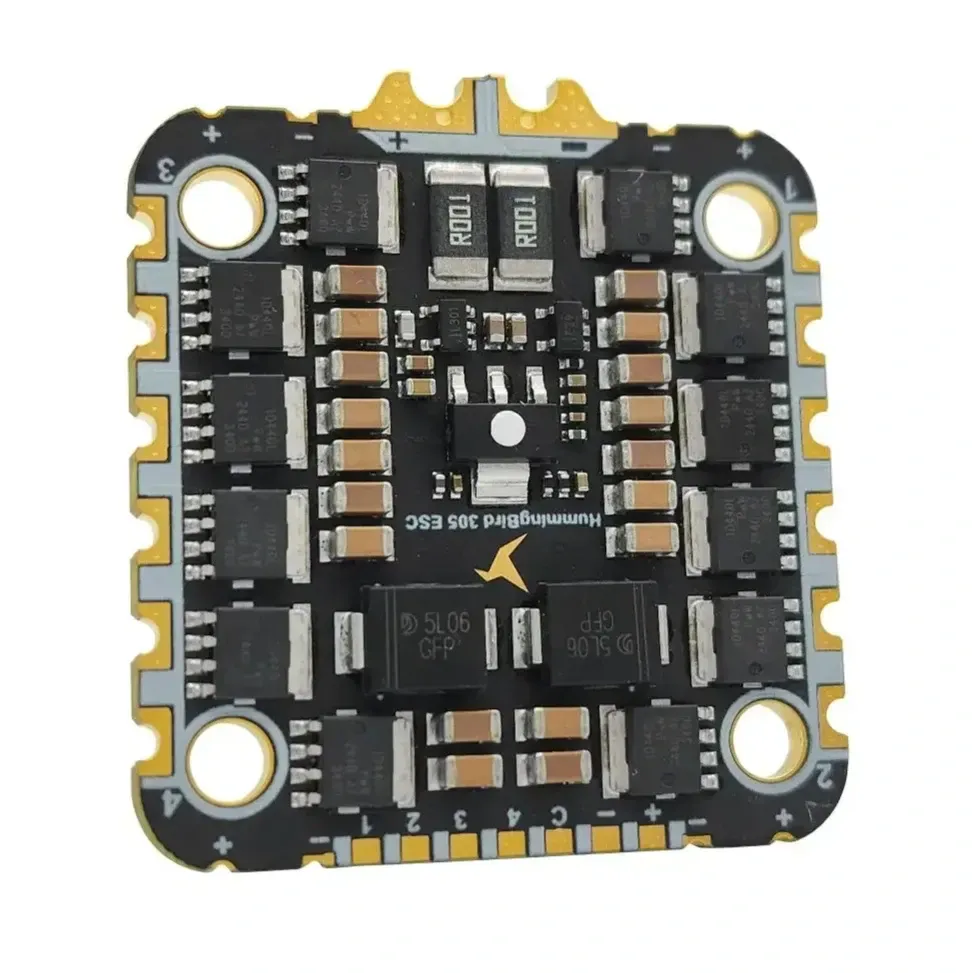

The NewBeeDrone Hummingbird 305 is an 80A 4-in-1 ESC built for high-power 5-inch to 10-inch FPV builds running 3-8S LiPo, with a 6-layer, 3oz-copper PCB and onboard TVS surge protection for durability under hard use.

Key features

  • Rated 80A continuous for 10 seconds per channel with a 100A/3-second burst, comfortably covering large-prop freestyle and long-range setups.
  • Three onboard TVS diodes rated for over 1.5kW peak protect the board from voltage spikes without needing external capacitors.
  • Runs open-source AM32 firmware, with corner-mounted capacitor pads for adding extra filtering on 7-inch and 10-inch builds.
  • Nano-coated 6-layer, gold-plated PCB is built to shrug off moisture and field abuse.

Specifications

  • Continuous current: 80A (10s per channel)
  • Burst current: 100A (3s)
  • Input voltage: 3-8S LiPo
  • Firmware: AM32
  • Mounting: 30.5x30.5mm (M3)

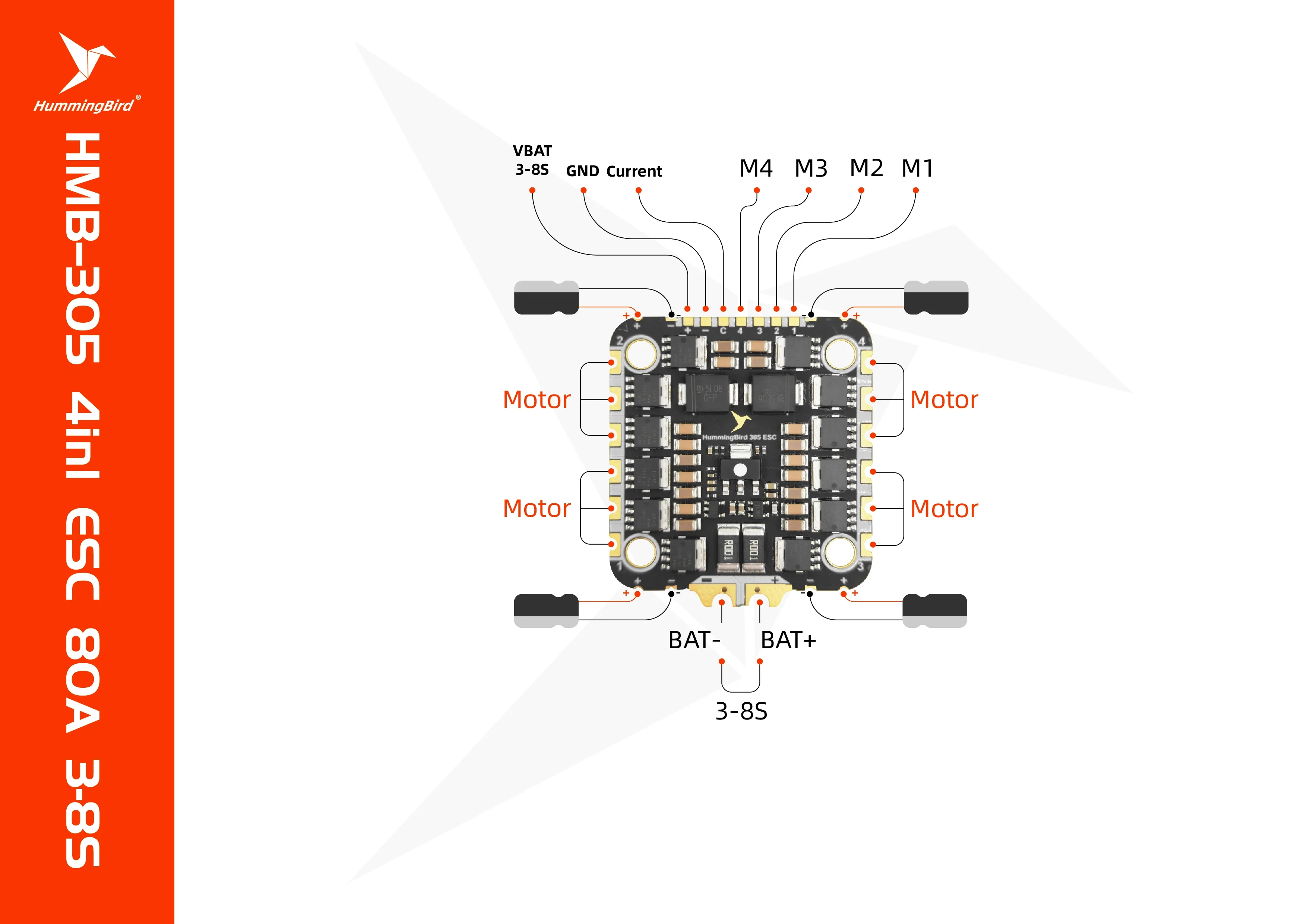

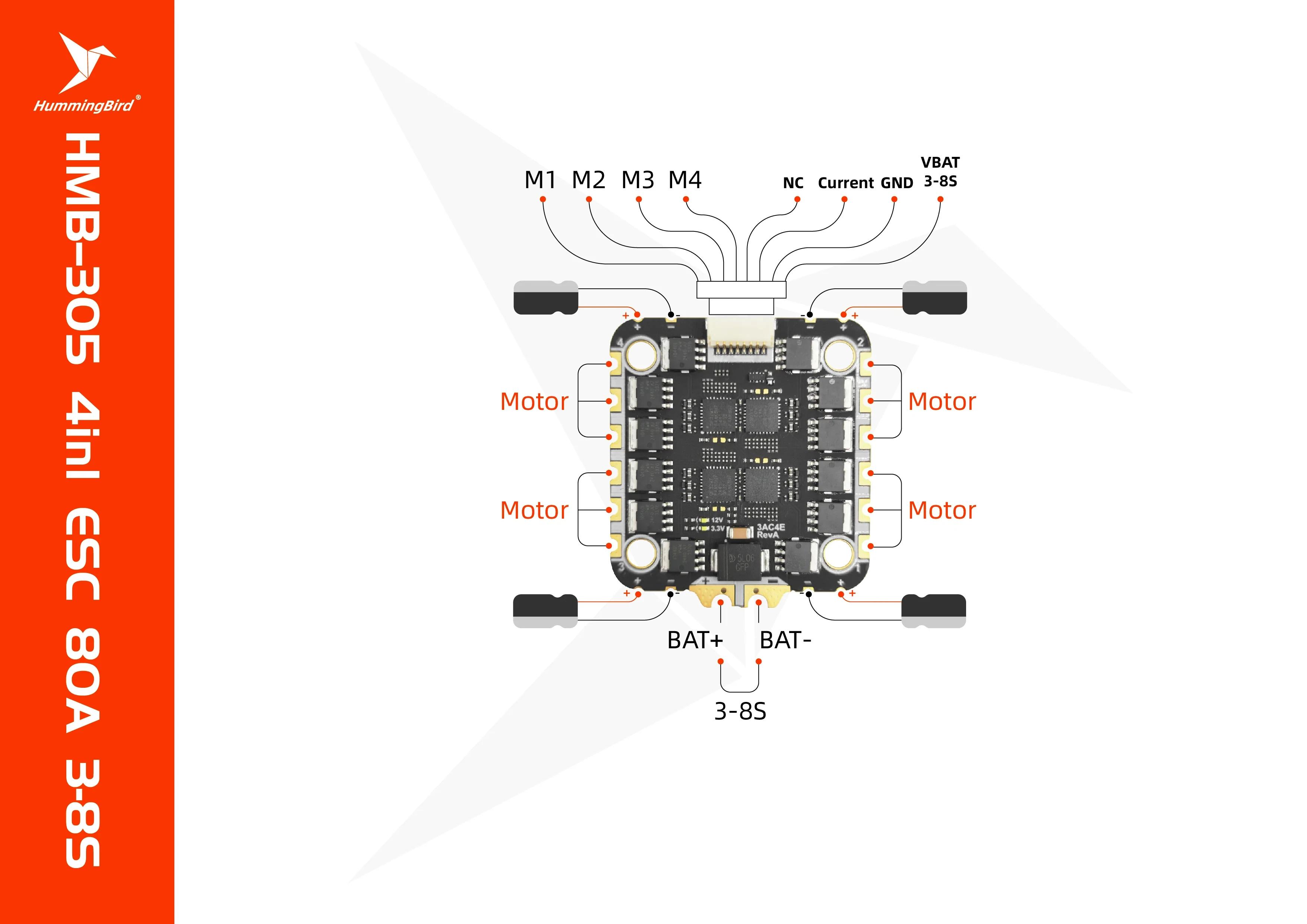

  • Connector: 8-pin JST-SH1.0
  • Dimensions: 43 x 43 mm (including pads)
  • Weight: ~14.5 g (bare board)

The box includes a 14AWG power cable, an XT60 plug, a 1000uF capacitor with heat-shrink, and mounting grommets, so a large-build filtering setup is ready to wire straight out of the bag.
