NewBeeDrone AcroBee75 BLV5 BNF ELRS 2.4G 2S Outdoor Whoop

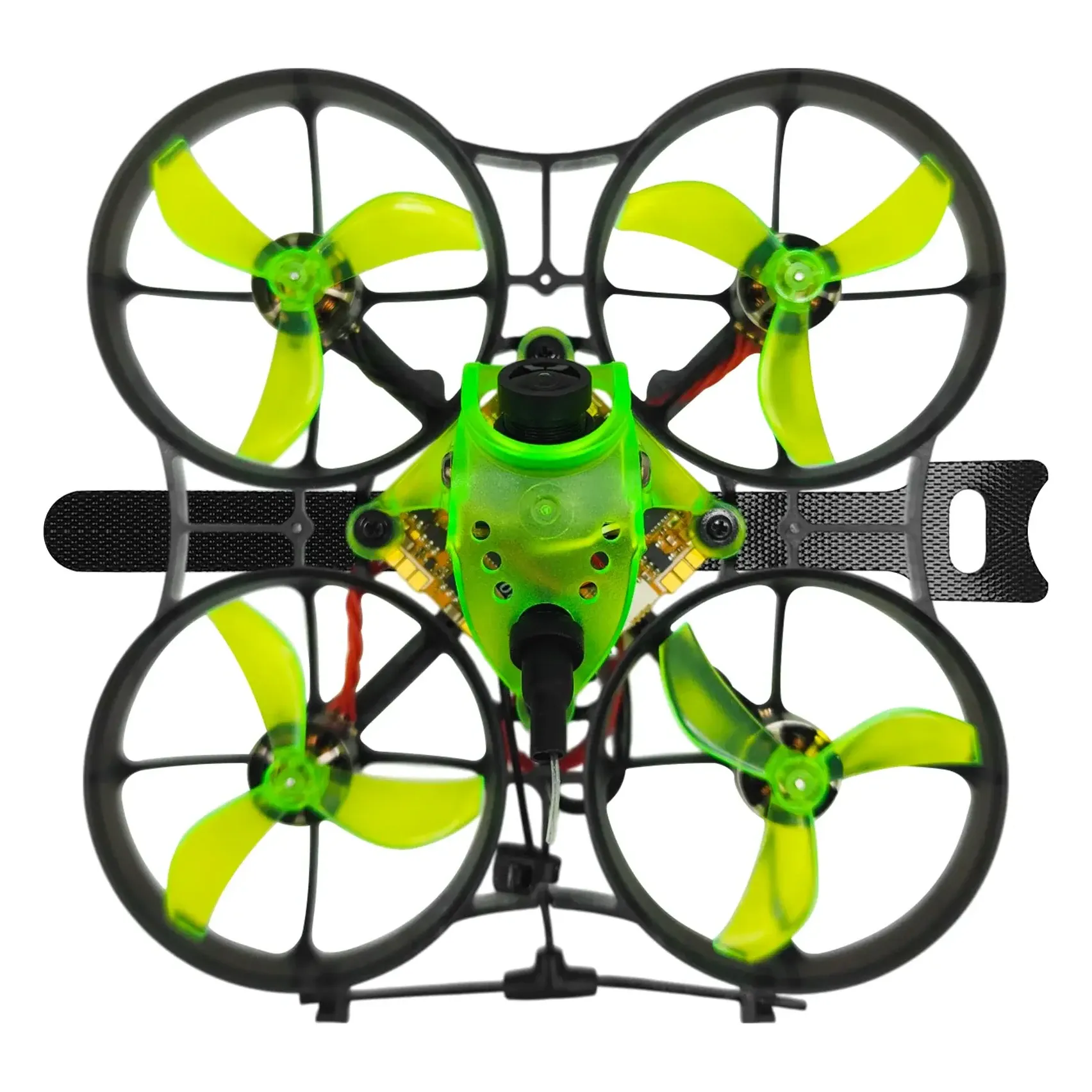

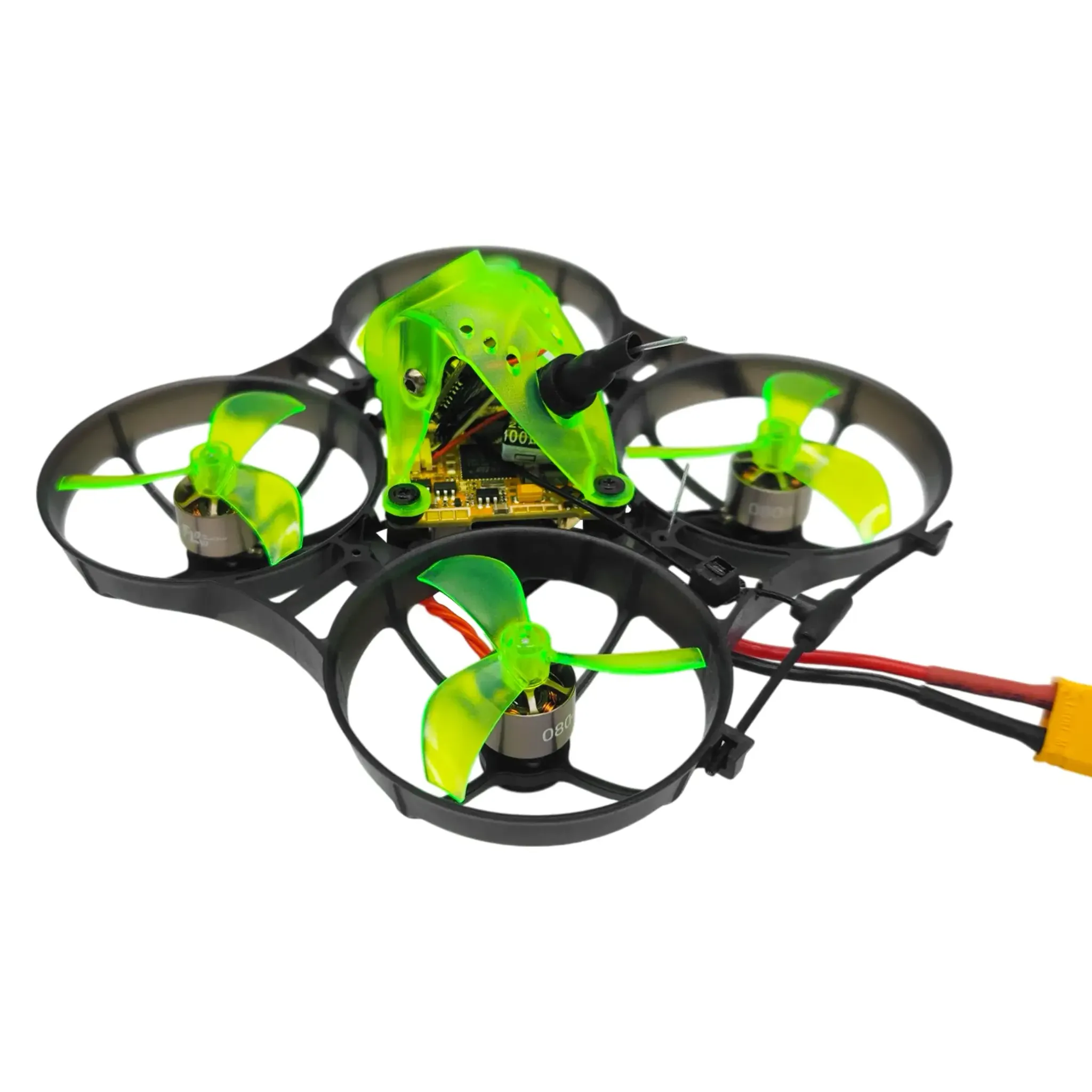

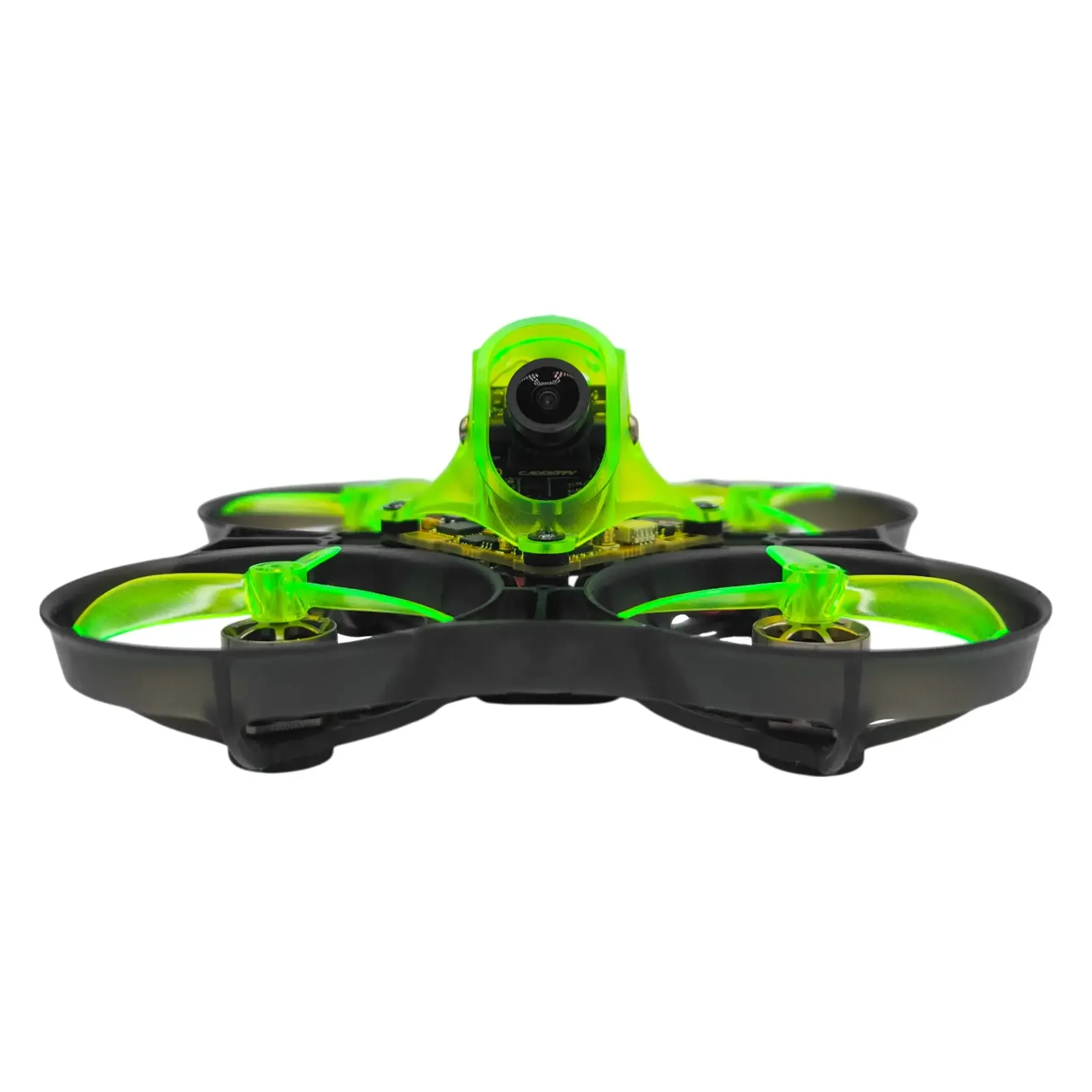

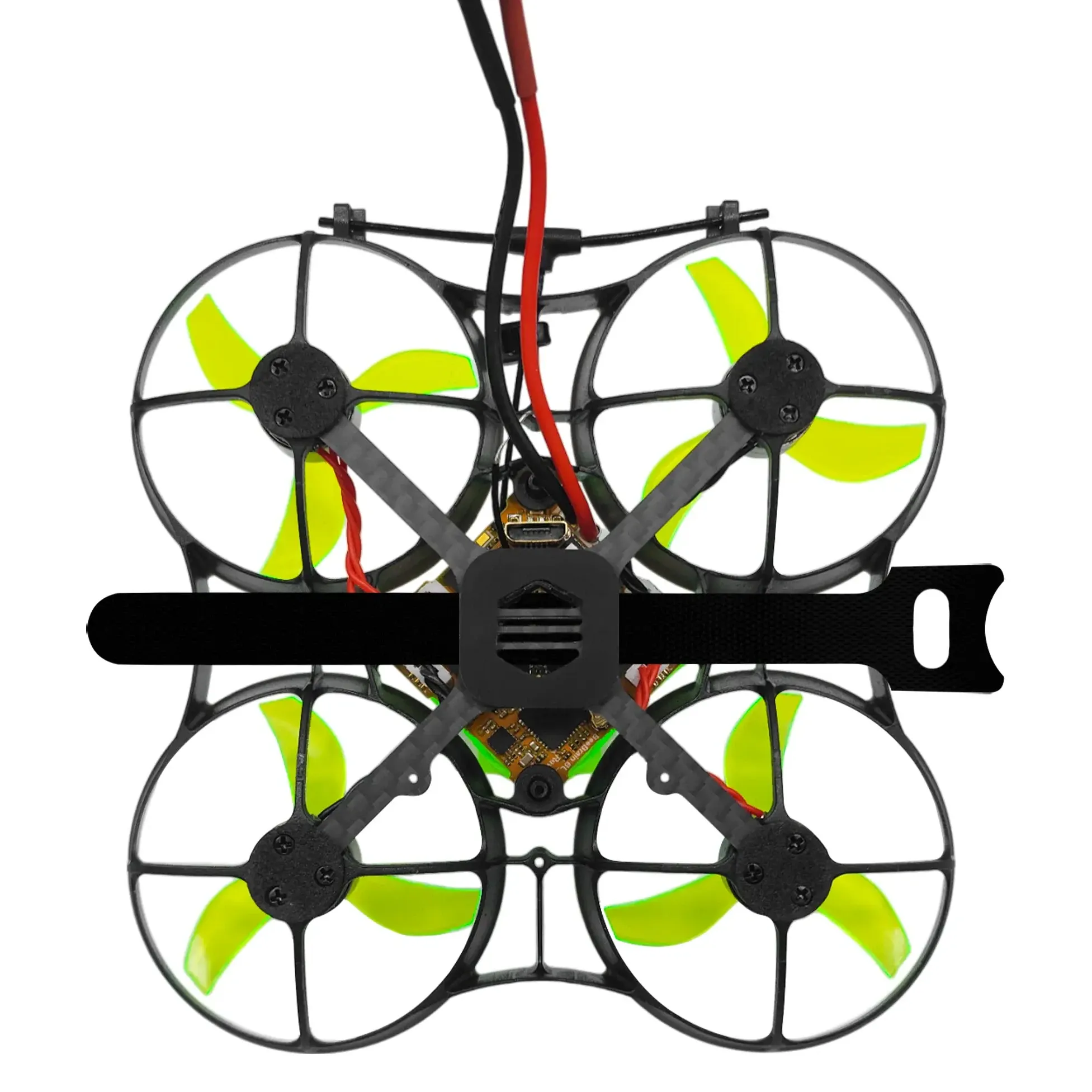

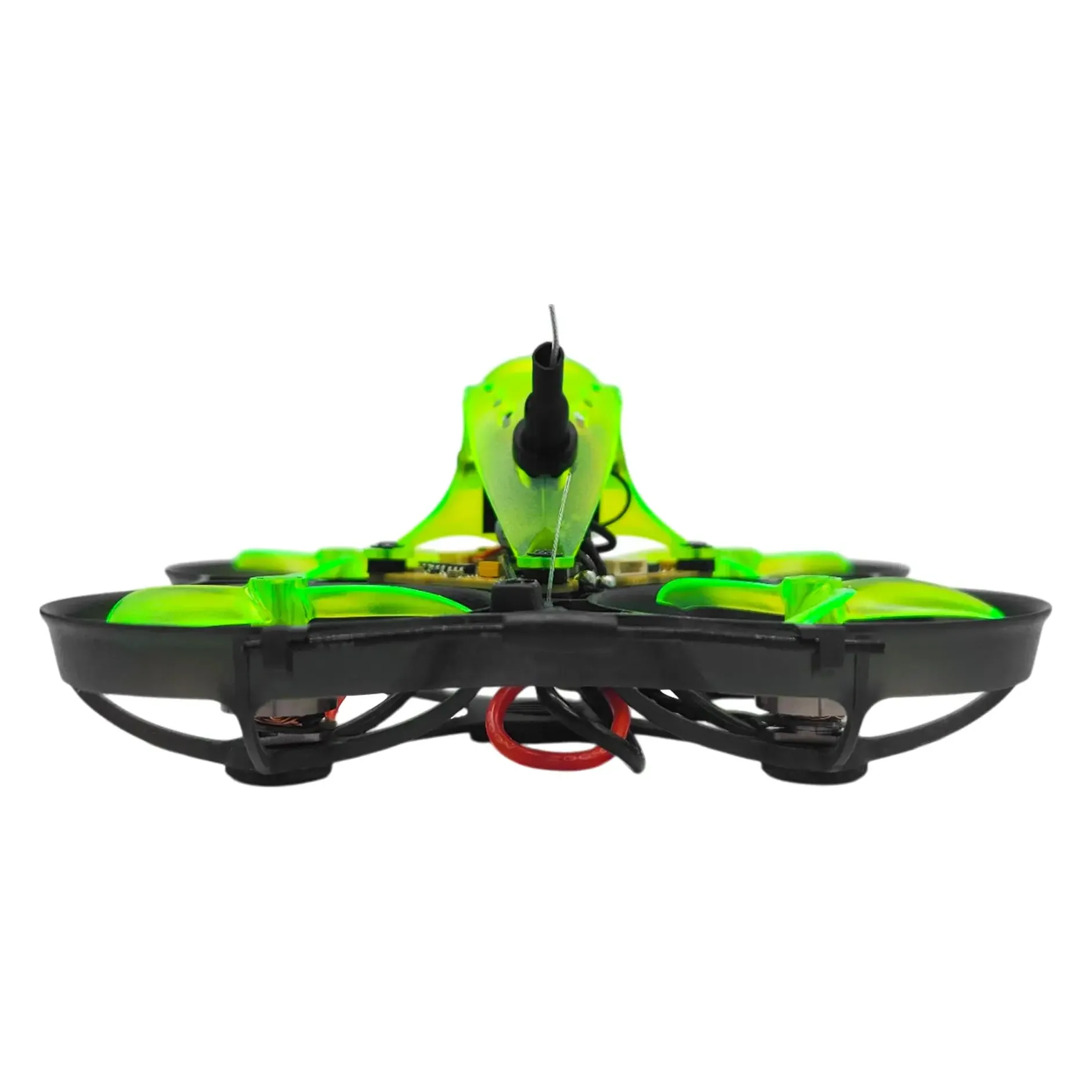

The AcroBee75 BLV5 is a 75 mm, 2S analog whoop built around NewBeeDrone's fifth-generation BeeBrain BLV5 flight controller. With 0804 14000KV motors on 2S it has the punch for outdoor freestyle and park flying while staying small enough for indoor gaps, and it arrives bind-and-fly with an ELRS 2.4 GHz diversity receiver.

Key features

• BeeBrain BLV5 AIO: STM32G474 processor, MPU6000 gyro and 18A ESCs running Bluejay 0.19.2 at 48 kHz
• UART-based ELRS 2.4 GHz diversity receiver with a TCXO crystal oscillator for a stable, longer-range link
• Smart-Max VTX: 25 mW, 100 mW, or temperature-managed output up to 400 mW
• About 4:30 of freestyle or 6:30 of hover on a 450 mAh 2S pack
• Ships with a Caddx Ant Nano 1200TVL camera

Specifications

• Size: 75 mm
• Motors: 0804 14000KV
• Flight controller: BeeBrain BLV5, STM32G474, MPU6000
• ESC: 18A, Bluejay 0.19.2, 48 kHz
• Receiver: UART ELRS 2.4 GHz diversity, TCXO
• VTX: 25 / 100 mW, Smart-Max up to 400 mW
• Camera: Caddx Ant Nano 1200TVL
• Battery: 2S (board input 1S–2S), 450 mAh 2S recommended
• Board: 29 × 29 × 7.6 mm, 25.5 × 25.5 mm mounting, 5.8 g
• Motor plugs: JST 1.0 mm 3-pin
• Weight: approx. 36 g without battery

Pair it with an ELRS 2.4 GHz radio and analog 5.8 GHz goggles. The motors plug into the board with JST 1.0 3-pin connectors, so replacement motors with matching plugs swap in without soldering.
