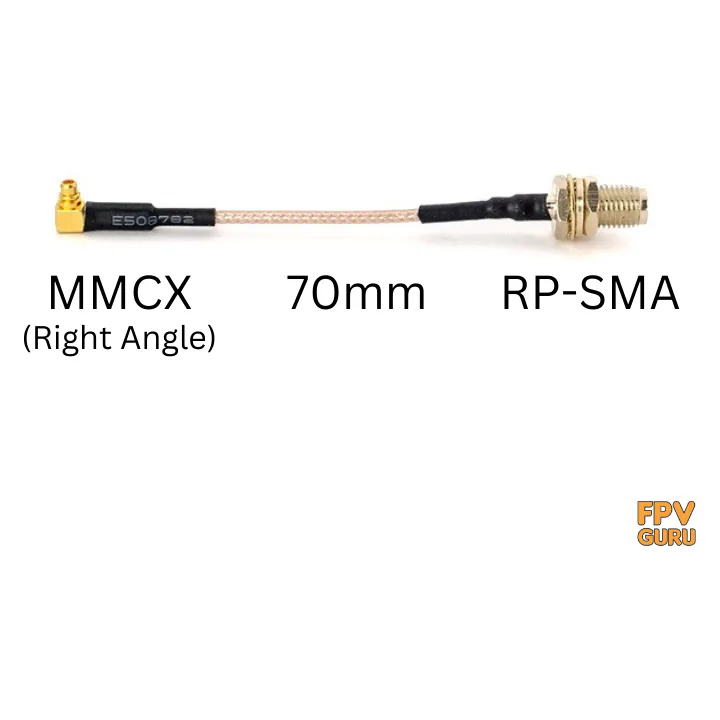

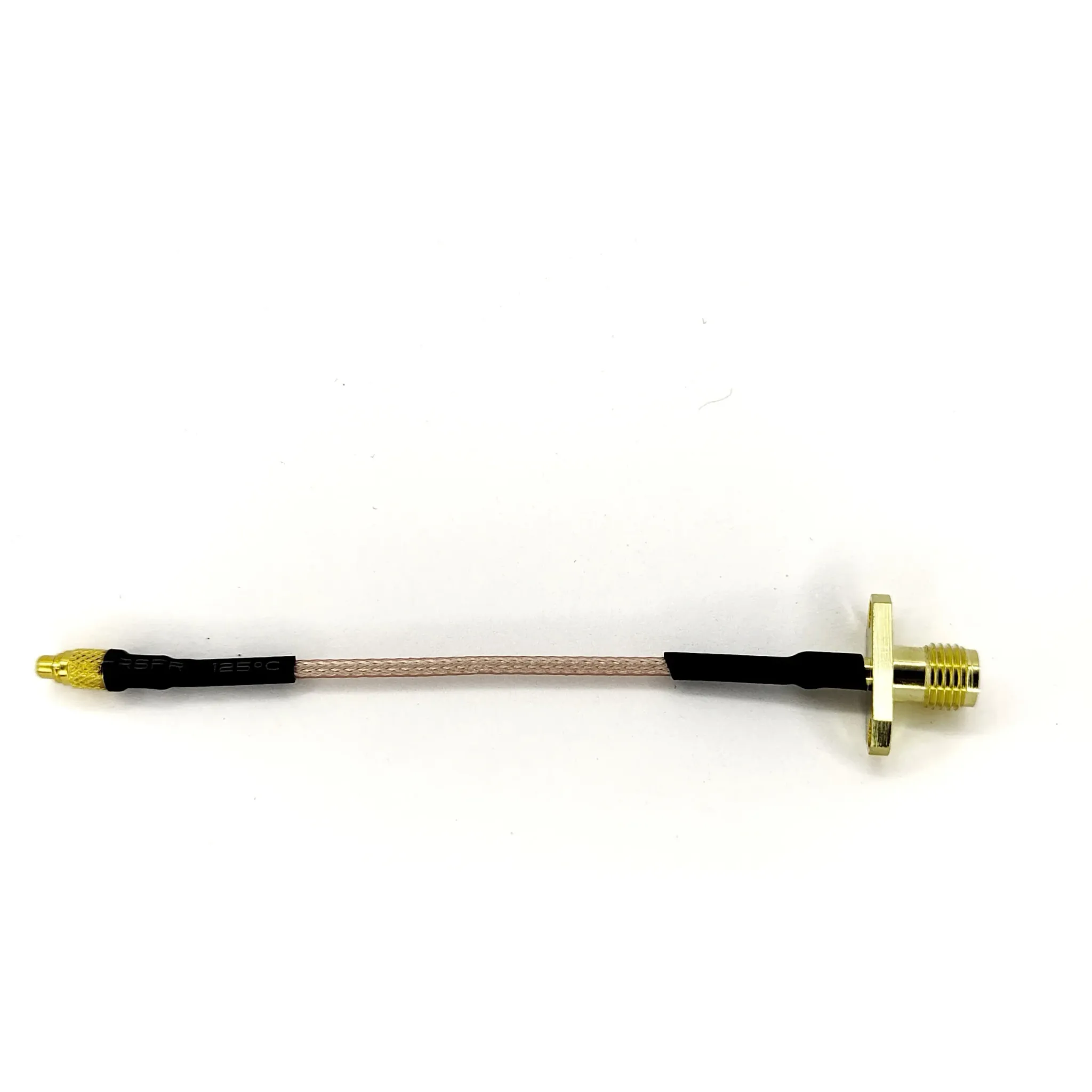

MMCX to SMA/RP-SMA Pigtail 70mm (2-Hole Flange Mount)

This 70mm MMCX to SMA or RP-SMA pigtail connects your video transmitter to an external antenna while providing a secure, hard-mounted connection point. The two-hole flange design allows you to bolt the antenna connector directly to carbon fibre frame plates, custom 3D-printed TPU mounts, or ground station enclosures. Hard-mounting your antenna connection isolates impact forces during crashes, preventing mechanical stress from tearing the delicate MMCX port off your VTX.

Key features

• 70mm cable length allows for clean wire routing from a central VTX to a rear frame mount.
• Two-hole flange provides a rigid, bolt-on panel mounting solution for frames and enclosures.
• Isolates the VTX from crash impacts by anchoring the heavy antenna to the frame structure.

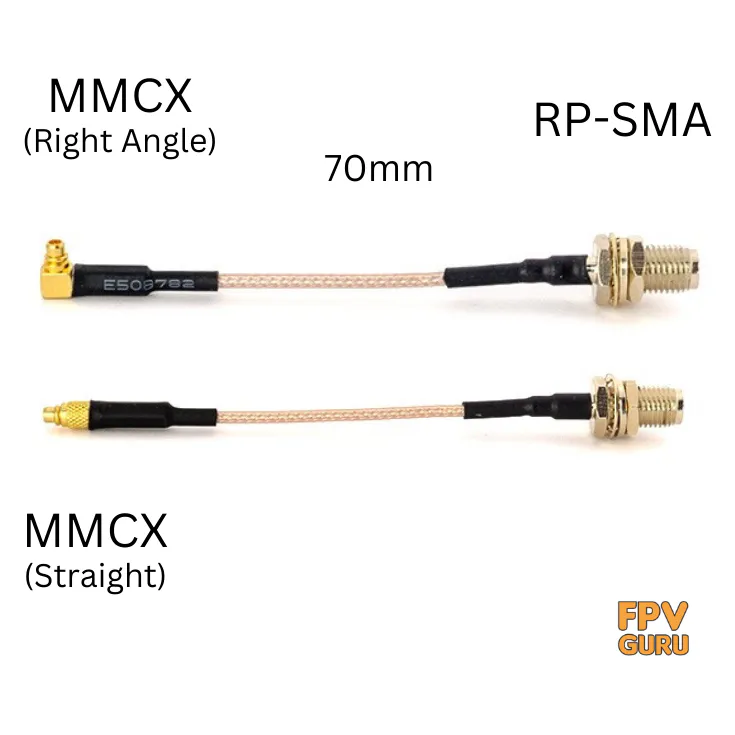

• Available in both SMA and RP-SMA configurations to match your existing antenna ecosystem.

Specifications

• VTX Connector: MMCX Male
• Antenna Connector: SMA Female or RP-SMA Female (flange mount)
• Cable Length: 70mm
• Mounting Style: 2-hole panel flange
• Impedance: 50 Ohms

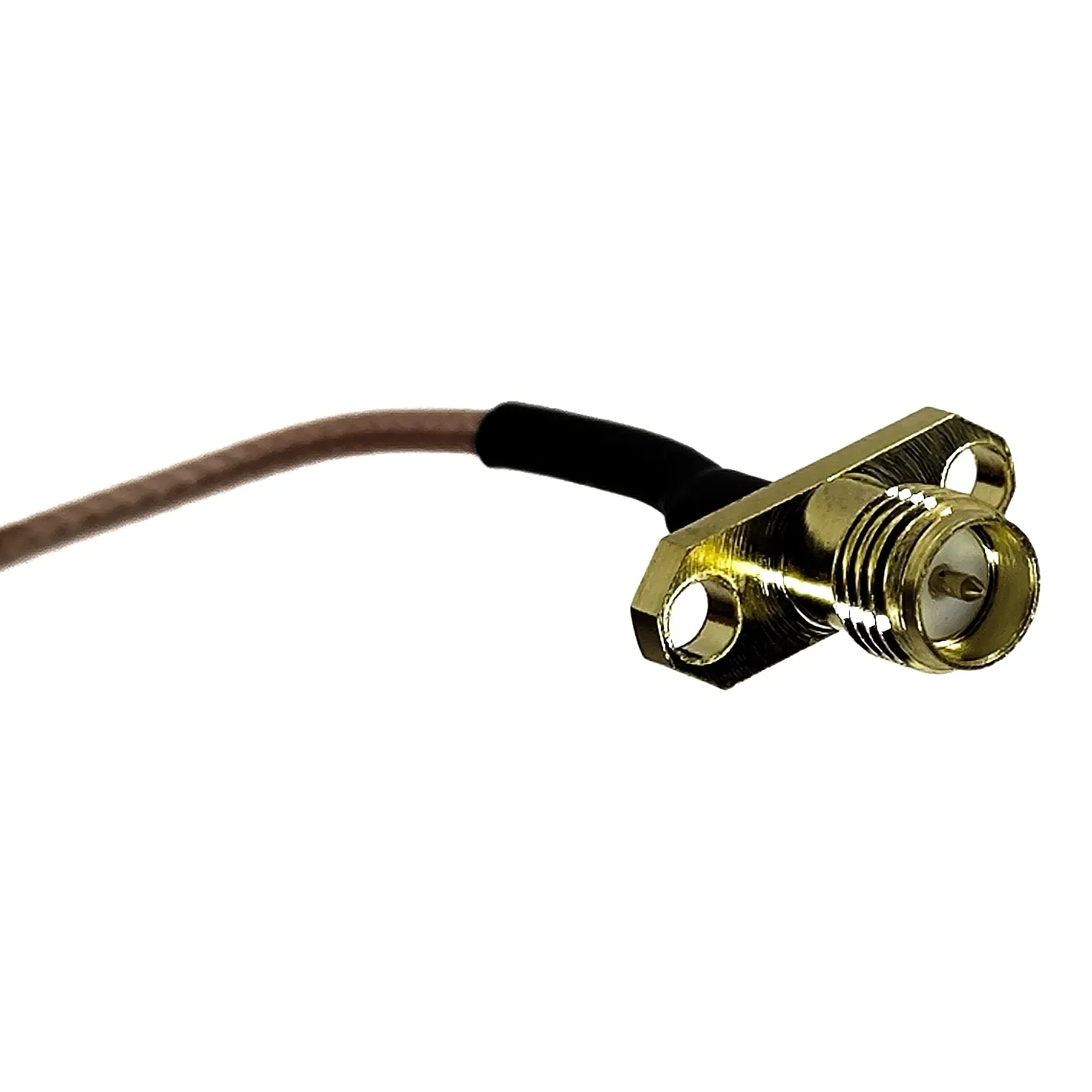

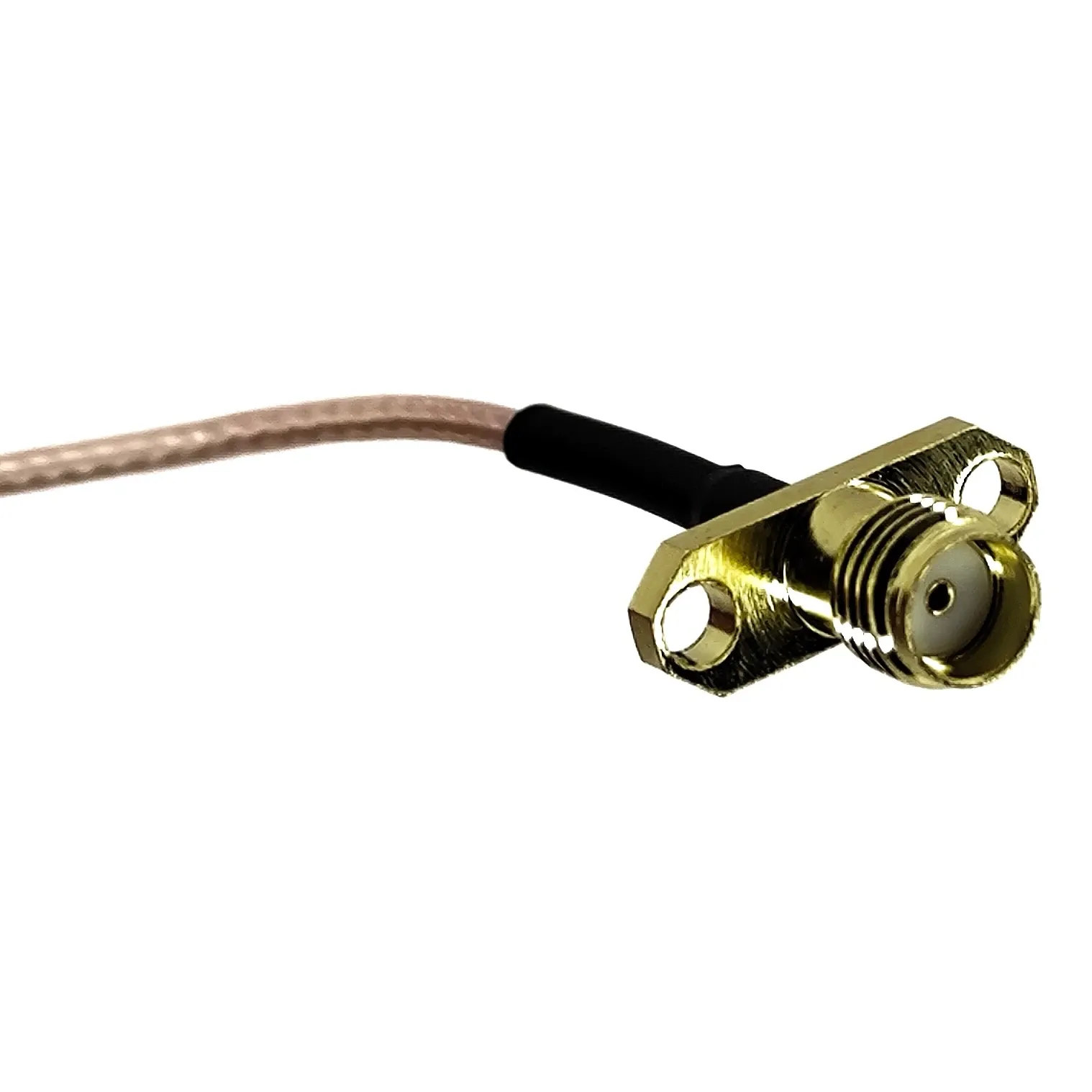

Note: The flange mount incorporates a female jack (with external threads). Verify your antenna connector type before selecting your variant; most standard analogue builds use SMA, while some specific ground station components and older links require RP-SMA.
