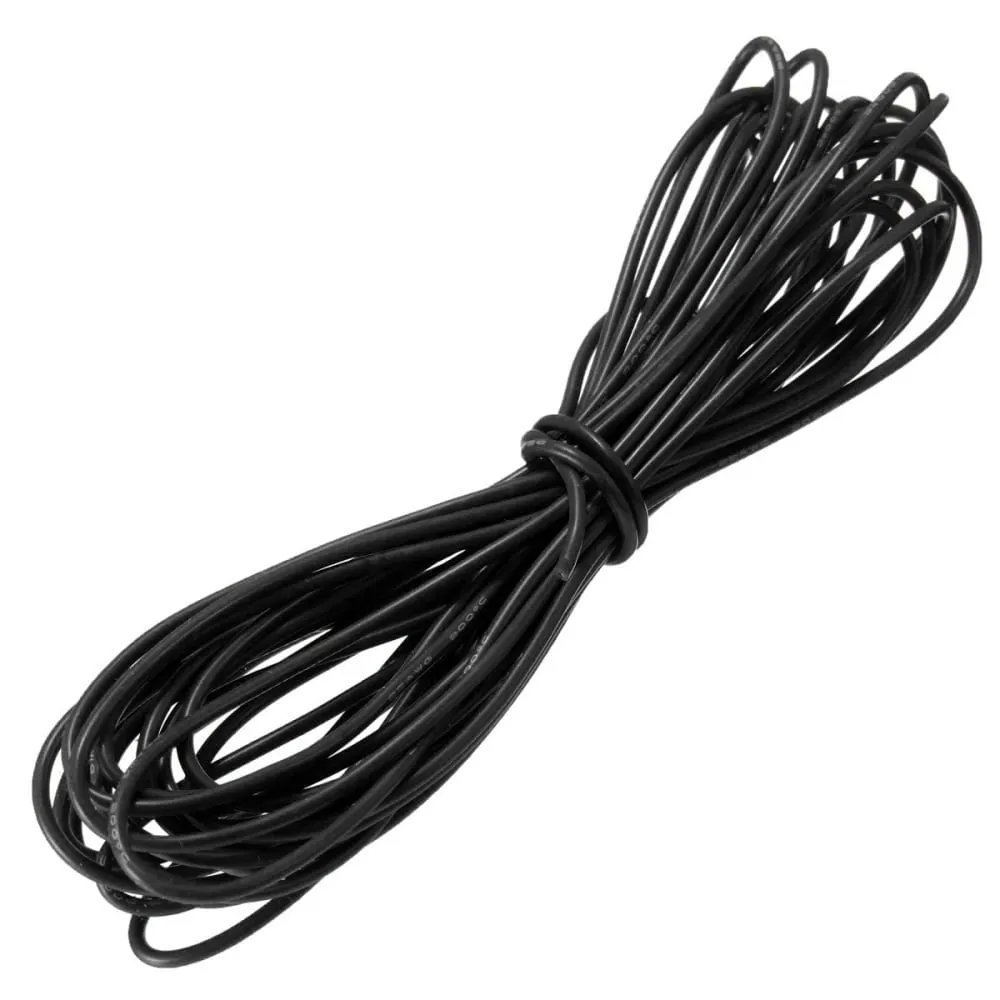

Silicone Wire 22AWG (Black 1M)

This 22AWG silicone-insulated wire provides the flexibility and thermal resilience required for custom FPV drone builds. Measuring 1 metre in length and finished in a black jacket for colour-coded ground paths or uniform wiring runs, this gauge is heavily utilised for mid-current drone electronics. It serves as an excellent choice for micro drone (2-inch to 3-inch) motor wires, robust power leads for high-output 5.8GHz video transmitters, and powering dense LED arrays. The highly pliable nature of the wire allows builders to navigate dense flight controller stacks and weave through tight carbon fibre frame standoffs without putting strain on delicate solder pads.

Key features

• Ultra-flexible core constructed from multiple fine tinned-copper strands, significantly reducing the risk of wire fatigue from high-frequency frame vibrations.
• High-temperature silicone insulation easily withstands direct soldering iron contact up to 200°C, eliminating jacket melt-back and exposed shorts during assembly.
• Optimal gauge for extending micro brushless motors, wiring heavy-draw peripherals, or creating low-current XT30 battery pigtails on sub-250g builds.

Specifications

• Wire Gauge: 22 AWG
• Insulation Material: Silicone
• Conductor: Tinned copper
• Length: 1 metre
• Colour: Black

Sold as a single 1-metre continuous length. To maintain peak conductivity and prevent pad tearing during crashes, always ensure your wire runs have a slight amount of slack and secure them to the drone frame using heat shrink, zip ties, or fabric tape.
