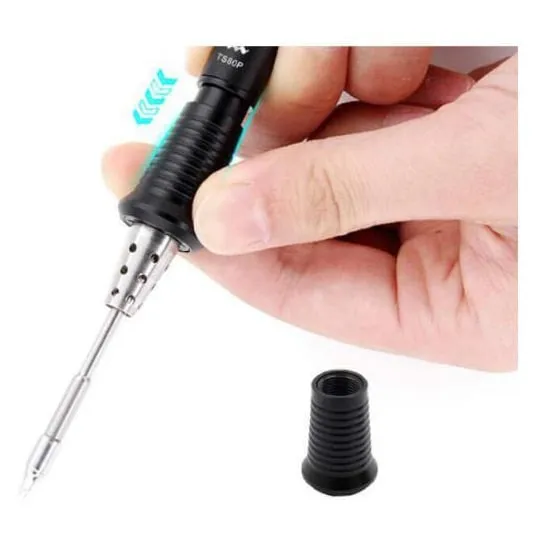

MINIWARE TS80P Soldering Iron (EU Plug) with B02 Tip

The Miniware TS80P is a compact, smart soldering iron powered by USB-C, designed for quick FPV field repairs and precision bench work. Operating on PD2.0 or QC3.0 protocols, it delivers up to 30W of power, capable of reaching 300°C in just eight seconds. This package includes a fine B02 conical tip and a compatible EU wall adapter, providing the hardware required to wire up flight controllers, receivers, and delicate components.

Key features

• Up to 30W output via USB-C (PD2.0 12V/3A or QC3.0 9V/2A)
• Rapid 8-second heat-up time to reach 300°C
• Built-in OLED display for real-time monitoring and precise temperature adjustment
• Smart firmware with sleep mode, auto power-off, and port protection
• Ergonomic CNC-machined aluminium alloy handle with a fast-swap tip fastener

Specifications

• Maximum power: 30W
• Power port: USB Type-C
• Supported protocols: PD2.0, QC3.0
• Temperature range: 100°C to 400°C
• Temperature stability: ±3%
• Length: 96 mm controller, 100 mm tip (60 + 40 mm)
• Included tip: TS-B02 (Conical)
• Plug type: EU Plug (Power supply included)
• Weight: 38 g controller, 14 g B02 tip

The included B02 conical tip is ideal for fine through-hole and micro-soldering tasks on modern whoop and toothpick AIO boards. For soldering heavy-gauge battery leads to XT60 pigtails, pair this iron with a heavier chisel tip (such as the TS-D25) and ensure your power source can deliver the full 12V/3A PD2.0 output to maintain adequate thermal mass.
