FNIRSI HS-01 Intelligent Soldering Iron

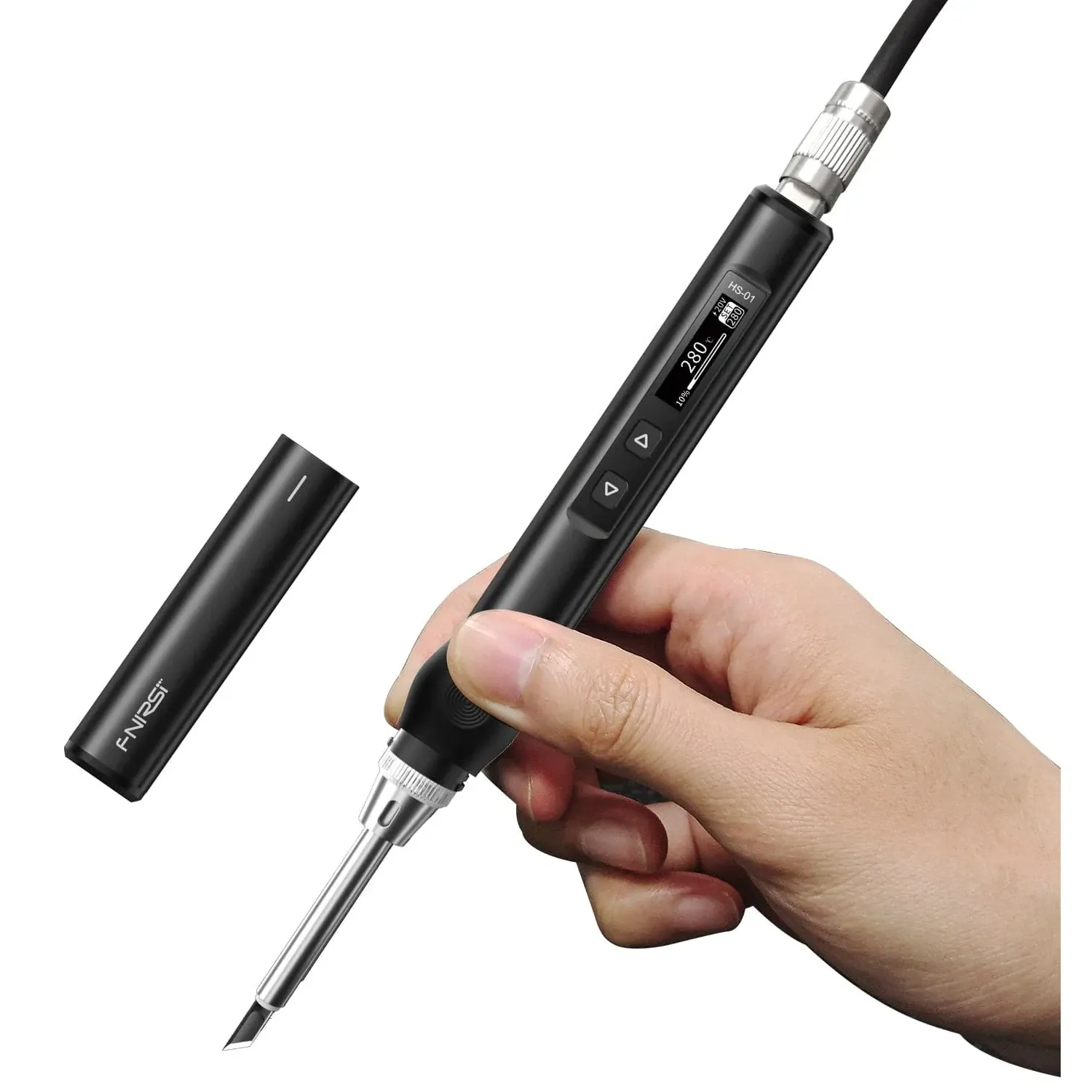

The FNIRSI HS-01 is a 65W portable smart soldering iron designed for both precision bench builds and trackside FPV repairs. Powered via a USB Type-C PD interface or DC input, it reaches operating temperature in under ten seconds, making it ideal for quick motor swaps or battery lead re-soldering in the field. Its CNC-machined aluminium chassis includes a protective travel cap, ensuring it cools safely and will not melt or damage other components in your gear bag.

Key features

• Powered by 65W USB-C Power Delivery or 9-24V DC input for rapid 8-second heat-up.
• 0.87-inch OLED display for real-time monitoring and exact temperature adjustments.
• Integrated intelligent controller with sleep, standby, and safety cut-off functions to preserve tip life.
• Comes equipped with the versatile HS01-BC2 bevel tip, sized well for both delicate flight controller pads and heavier XT60 wiring.
• Black anodised aluminium housing with an anti-slip silicone grip and secure threaded tip retention.

Specifications

• Input voltage: 9-20V (USB-C PD) / 9-24V (DC)
• Maximum power: 65W (PD) / 96W (DC at 24V)
• Temperature range: 80°C to 420°C

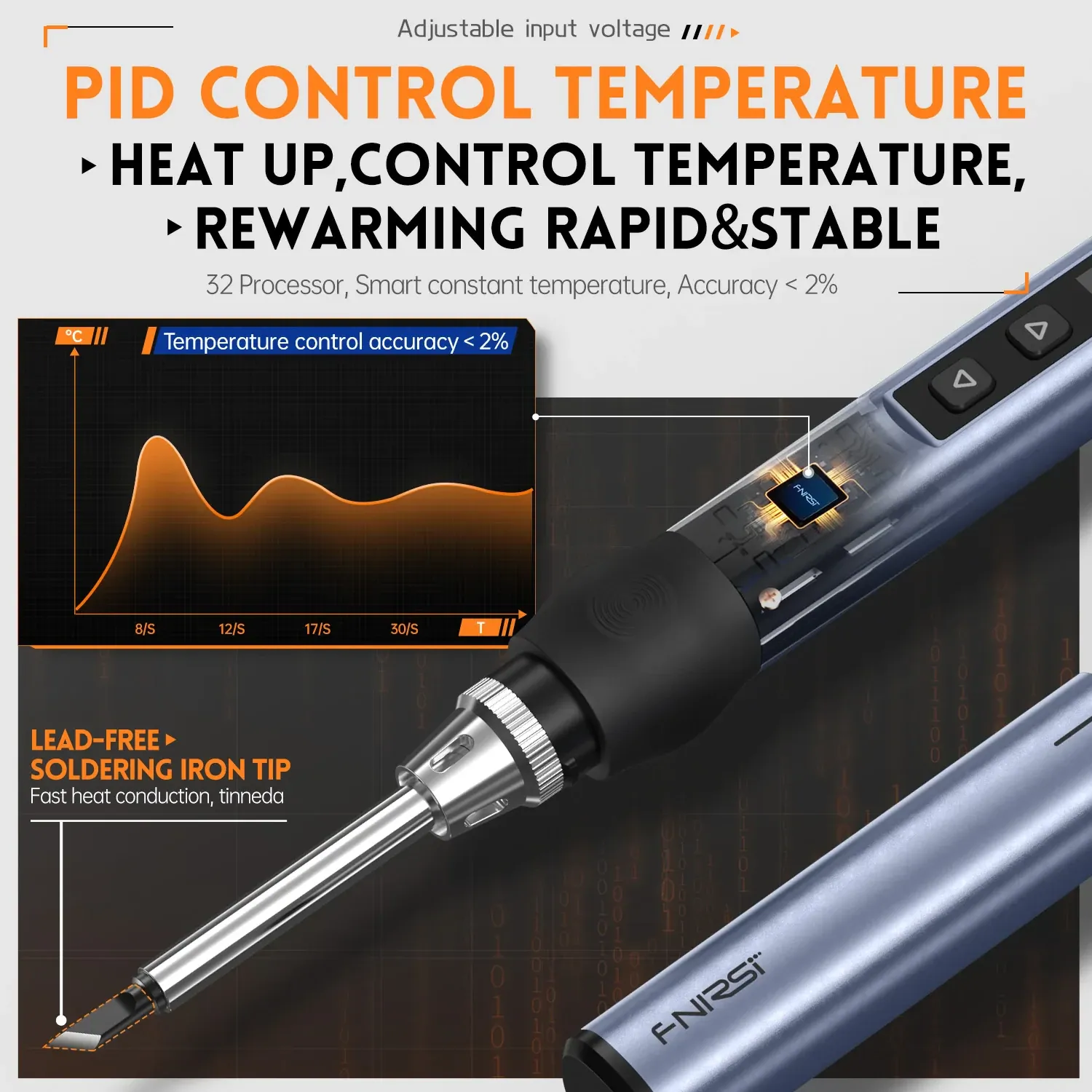

• Temperature accuracy: better than 2% (PID control)
• Display: 0.87-inch OLED
• Chassis material: CNC Aluminium alloy

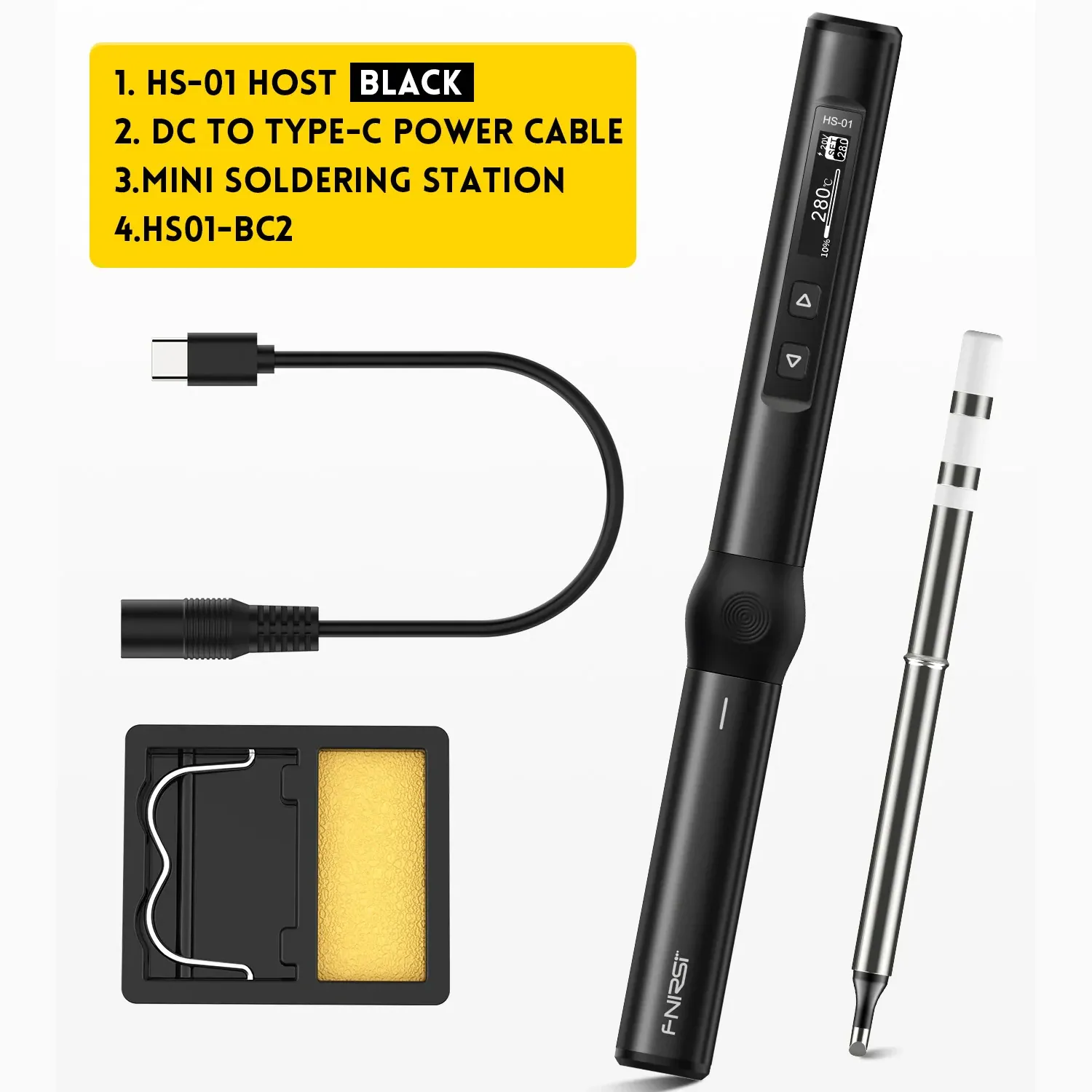

• Included tip: HS01-BC2 (2mm Bevel)

For field repairs, pair the HS-01 with a 65W-capable USB-C power bank or use an XT60-to-USB-PD adapter to run it directly from your 4S or 6S flight LiPos.
