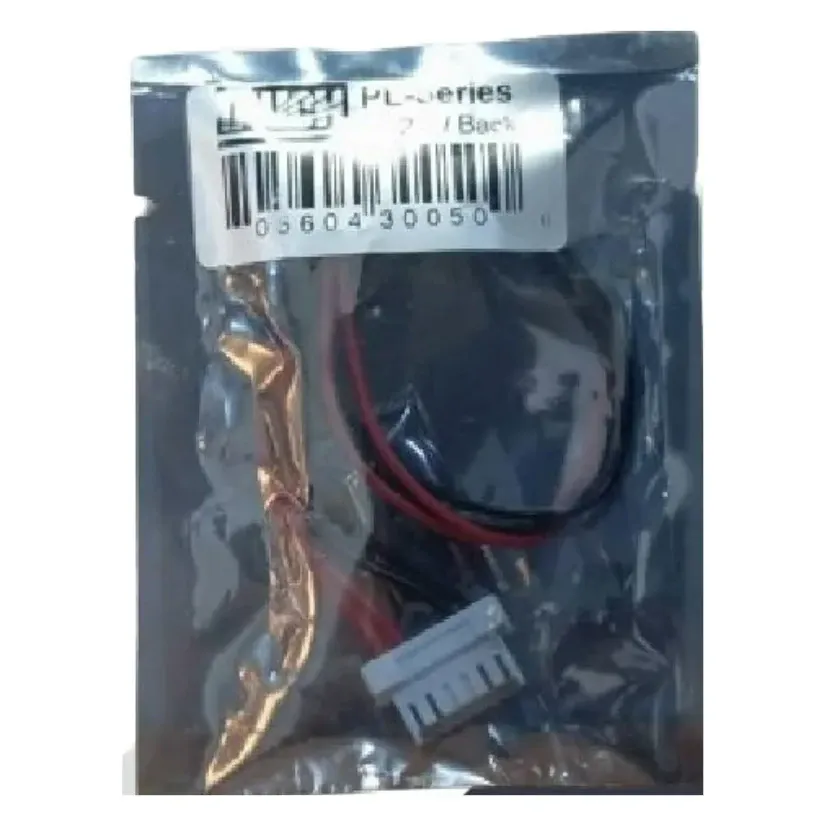

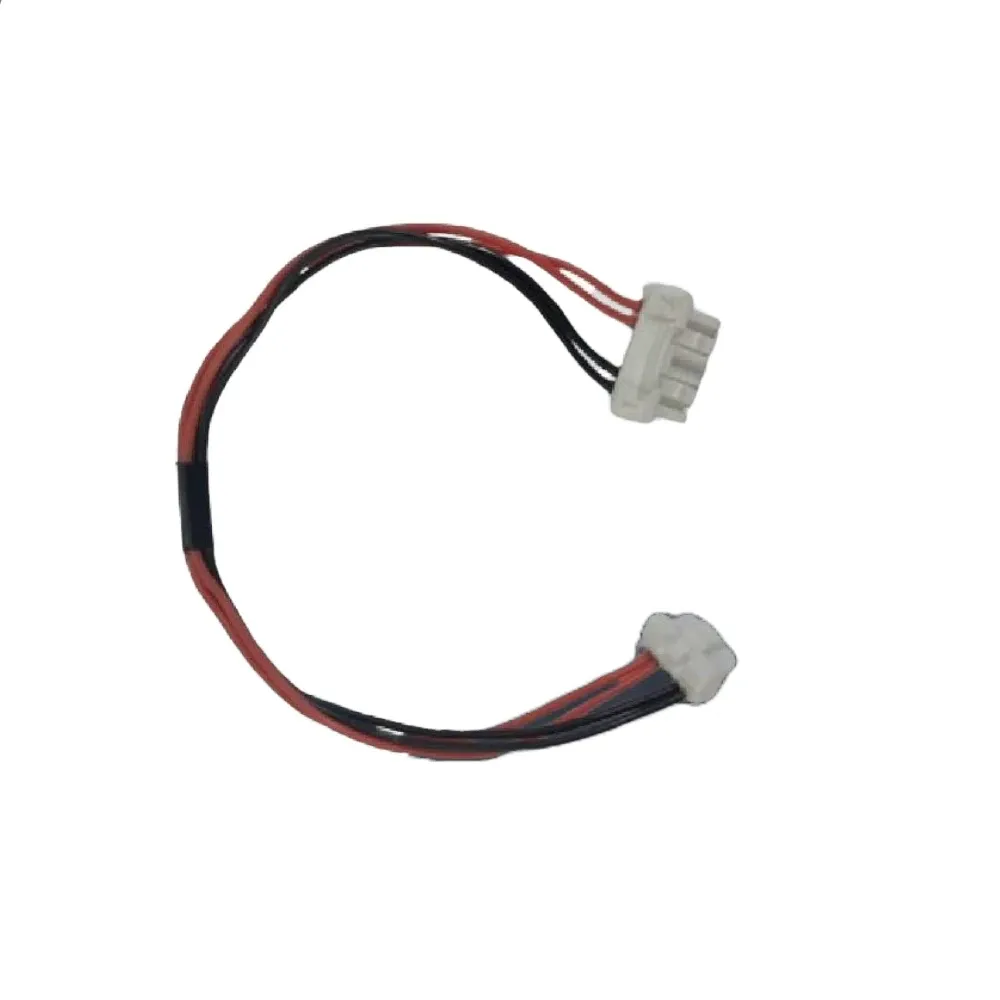

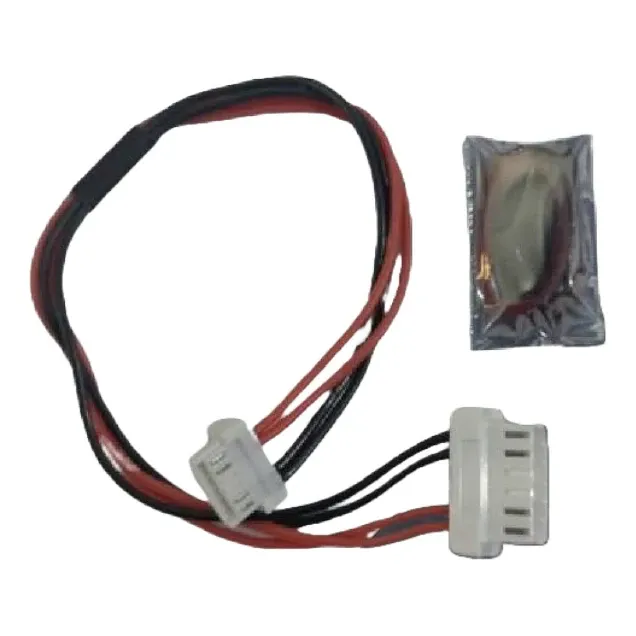

Mauch 050 PL-PX2.1 Back-Up Power Cable for Pixhawk 2.1 Cube

Mauch part 050 links a Mauch PL-series BEC to the POWER2 input of a Pixhawk 2.1 (Cube) flight controller, giving the autopilot a second, independent supply alongside its main feed. It is a 150 mm lead with a 6-pin Molex CLIK-Mate 2.0 mm plug for the Cube's power port, made for Mauch PL power systems on survey, mapping and heavy-lift ArduPilot or PX4 builds.

Key features

• Redundant autopilot power — feeds POWER2 from a PL BEC, so the Cube keeps running if the primary supply drops out.
• Cube-ready connector — 6-pin Molex CLIK-Mate 2.0 mm, matching the Pixhawk 2.1 power inputs.
• 150 mm length keeps the run short and tidy between a frame-mounted BEC and the autopilot.
• Plug-and-play — no crimping or re-pinning, and a light cable for field use.

Specifications

• Mauch part number: 050
• Connects: Mauch PL BEC to Pixhawk 2.1 (Cube) POWER2

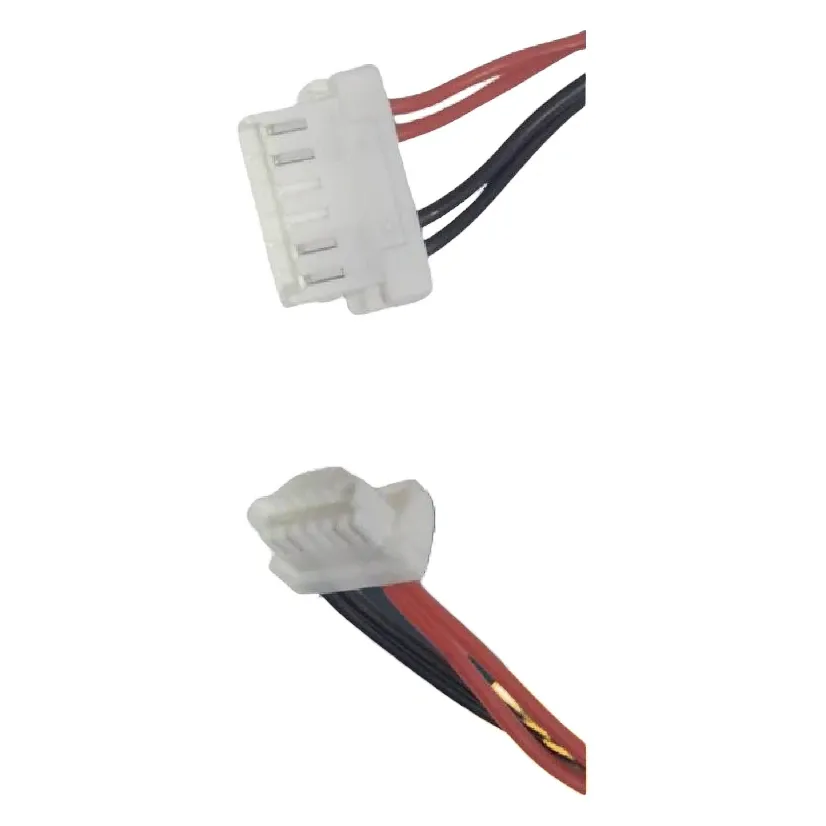

• Flight controller connector: Molex CLIK-Mate 2.0 mm, 6-pin
• Length: 150 mm

The primary feed from a Mauch PL sensor board to a Pixhawk 2.1 runs through Mauch's separate 042 FC cable; this 050 lead adds the backup path. If your power system is a Mauch Power-Cube rather than PL-series, the matching Pixhawk 2.1 backup lead is Mauch part 061.
