MATEKSYS PM12S-4A Power Module
₹3,799Incl. GST
SKU MATEK-PM12S-4A
Input Voltage: 3–12SMade in India: NoBrand: MATEKSYSWeight: 18 g
Dispatched within 3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

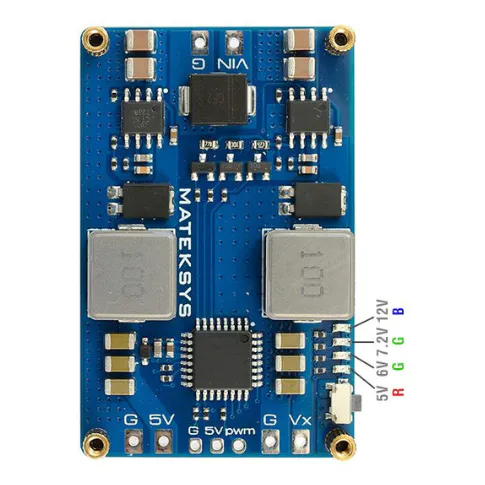

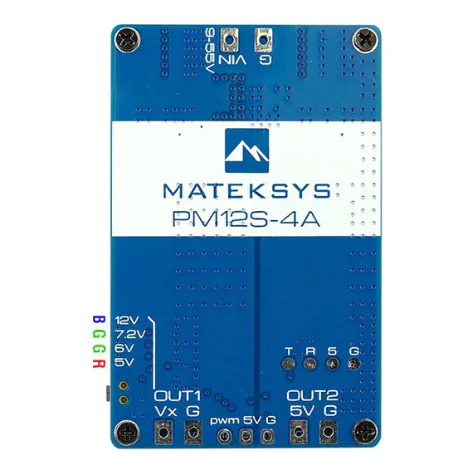

The Mateksys PM12S-4A is a dual-output BEC module built for high-voltage autopilot and cinelifter builds, stepping battery voltage down to safe, regulated power for the flight controller and peripherals.
Key features
- Wide 9V–55V input range (roughly 3S to 12S LiPo) with TVS protection against voltage spikes.
- Two independent step-down regulators: OUT-1 is switchable between 5V, 6V, 7.2V and 12V, OUT-2 is a fixed 5V rail — both rated 4A continuous, 5A peak.
- OUT-1 can be toggled on and off remotely via a PWM signal from a spare receiver or flight-controller channel.
- Compact bare-board design with no wires attached, so it solders straight into an existing power harness.
Specifications
- Input voltage: 9–55V (approx. 3–12S LiPo)
- OUT-1: 5/6/7.2/12V selectable, 4A continuous / 5A peak
- OUT-2: 5V fixed, 4A continuous / 5A peak

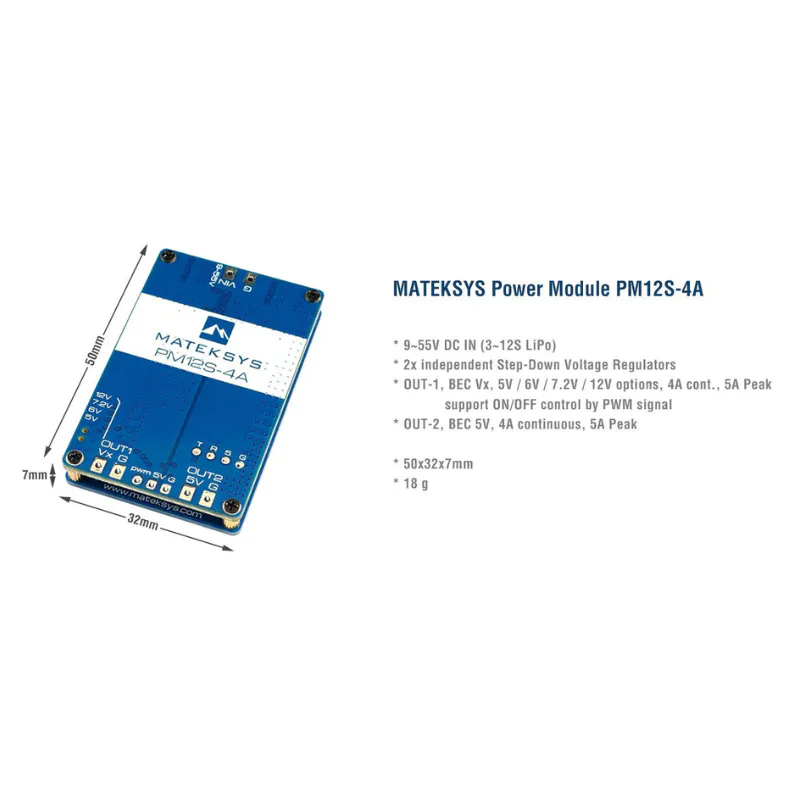

- Size: 50 x 32 x 7 mm
- Weight: 18 g
Tap this module off the main battery supply to feed clean, selectable-voltage power to the flight controller, VTX or other peripherals on large ArduPilot or heavy-lift builds — note it is a BEC module and does not provide current/voltage telemetry sensing.
| Input Voltage | 3–12S |
|---|---|
| Made in India | No |
| Brand | MATEKSYS |
| Weight | 18 g |
| Output Voltage | 5V, 12V, 6V, 7.2V |
| Output Current | 4 A |
