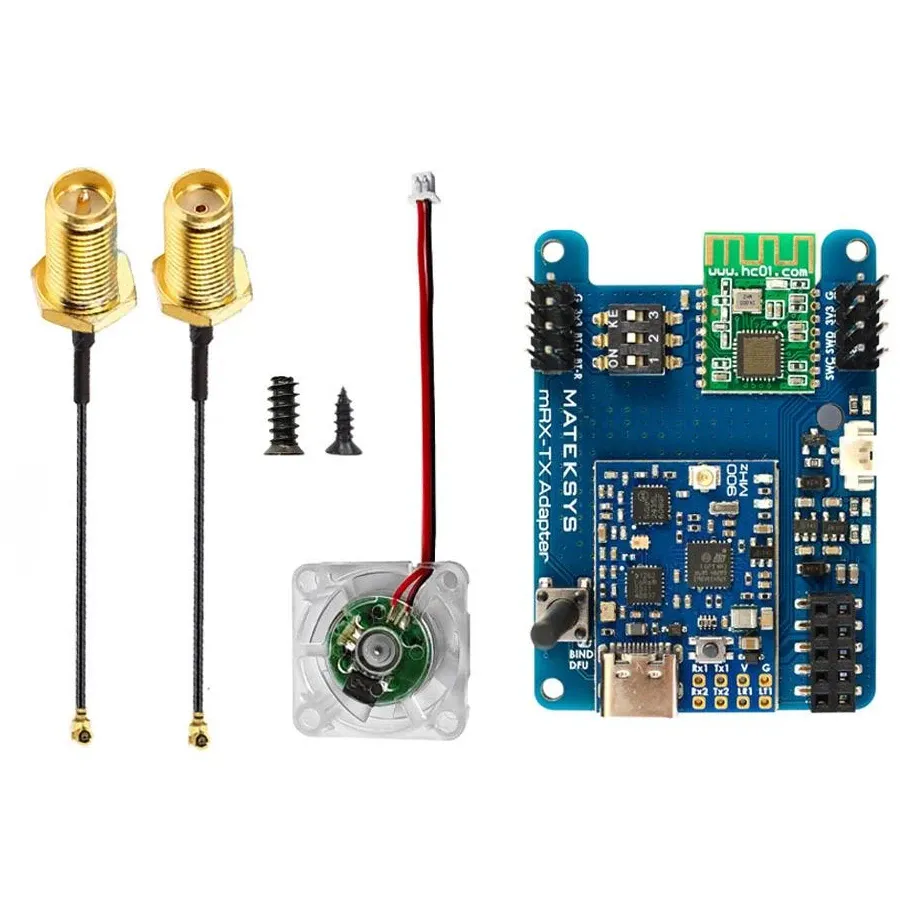

Matek mLRS MR900-30 TX Module Kit (900MHz)
SKU MATEK-MR900-30-TX-KIT
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The MATEKSYS mR900-30 TX Module Kit is built for long-range ArduPilot builds and autonomous UAVs requiring robust control and high-bandwidth bidirectional telemetry. Running the open-source mLRS (Mavlink LRS) protocol, this 900MHz transmitter handles both RC commands and full Mavlink data over a single LoRa link, eliminating the need for a separate telemetry radio on your ground station.
Key features
- Outputs up to 1000mW (30dBm) of RF power for extended range and signal penetration in challenging environments
- Built around the Semtech SX1262 LoRa transceiver for high-sensitivity 868/915MHz operation
- Native mLRS firmware provides simultaneous, low-latency RC control and full Mavlink telemetry integration
Specifications
- Protocol: mLRS
- Operating frequency: 868MHz / 915MHz
- RF chip: Semtech SX1262
- Max transmission power: 1000mW (30dBm)
- MCU: STM32G431KB
- PA/LNA: SKY68383-11
- Antenna connector: IPEX MHF1, with 5 cm MHF1-to-SMA and MHF1-to-RP-SMA adapter cables
- Power input: 5-13 V DC via the JR bay
- Bluetooth: built-in HC-04 module
- Cooling: 5 V 25 x 25 x 10 mm fan (included), runs at 500 mW output and above
- Not included: SMA antenna and case
Ideal for fixed-wing platforms, mapping drones, and heavy-lift multicopters where uninterrupted ground-station telemetry is a strict requirement for autonomous missions.
| RC Protocol | mLRS |
|---|---|
| Module Bay | JR |
| Made in India | No |
| Brand | MATEKSYS |
| Frequency | 868/915MHz |
