Maple Wireless 4.9G Strigiformes Antenna 10.5dB RHCP SMA Kit

₹5,899Incl. GST

SKU MAPLE-STRIGFORMES-49G-105DB

Polarization: RHCPAntenna Connector: SMAFrequency: 4.9GHzMade in India: No
Dispatched within 2–3 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

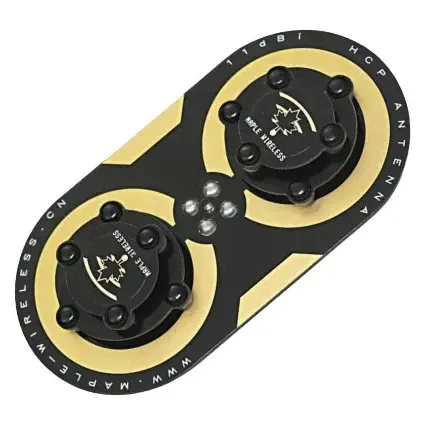

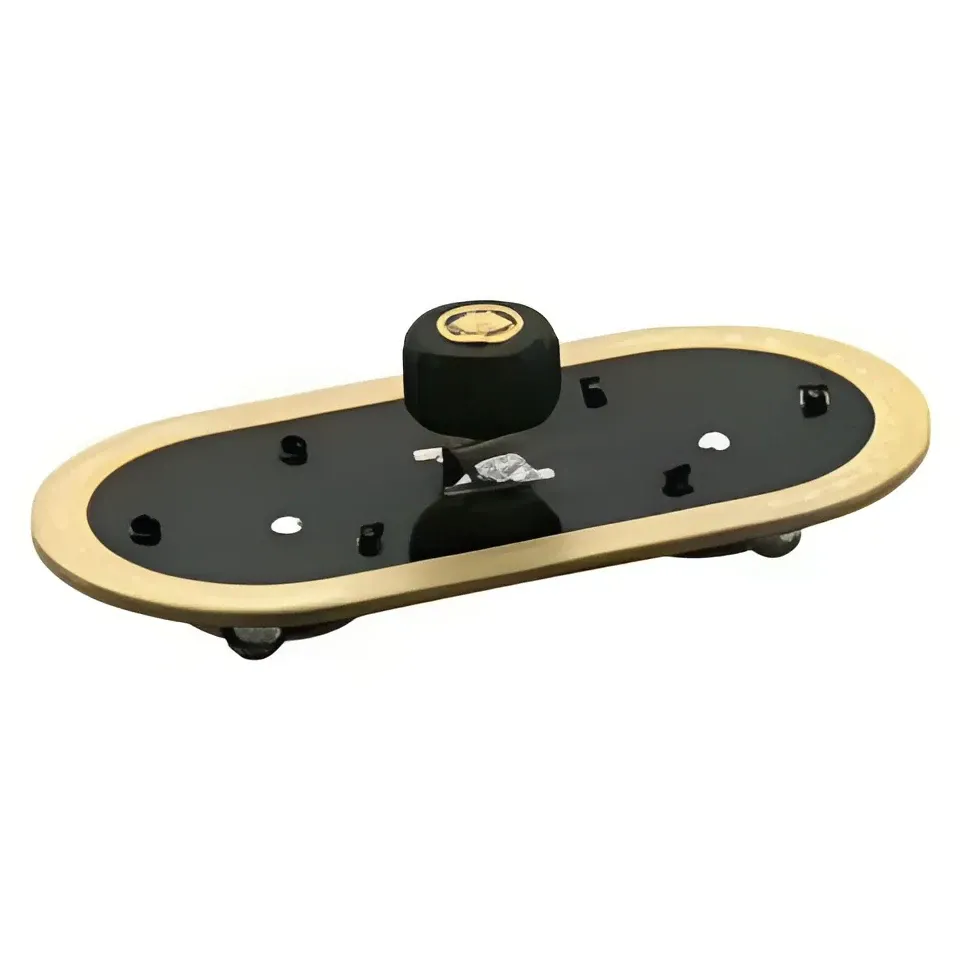

The Maple Wireless Strigiformes 4.9G is a directional antenna kit for FPV video links on the 4.9 GHz band, with 10.5 dB gain, right-hand circular polarisation and an SMA connector. Fit it on the ground side — goggles, a video receiver or a ground station — to extend range on 4.9 GHz systems.

Key features

  • 10.5 dB gain concentrated in a forward beam for long-range reception.
  • RHCP reduces multipath interference; match it with RHCP antennas on the transmitter.
  • SMA connector for goggles, receivers and ground stations with SMA ports.

Antennas are band-specific: this one is specified for 4.9 GHz, so confirm your video transmitter operates in that band — standard 5.8 GHz equipment needs the 5.8 GHz version. Check that your device port is SMA rather than RP-SMA before fitting. As a directional antenna it should face the aircraft, so keep an omni on the second receiver input for close-in flying.
