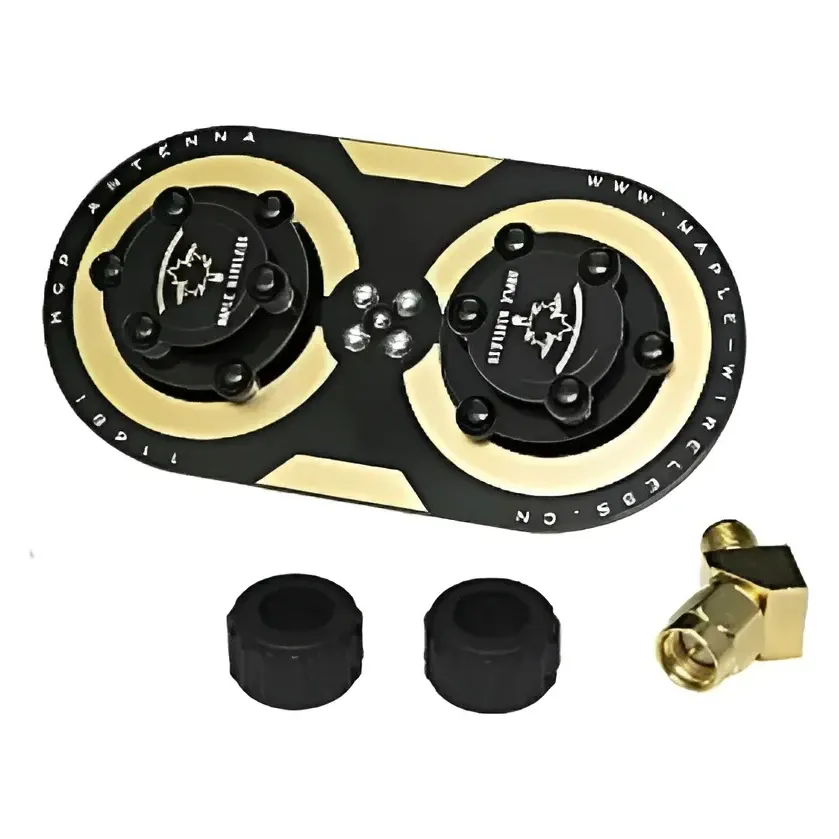

Maple Wireless 5.8G Strigiformes Antenna 11dB RHCP SMA Kit

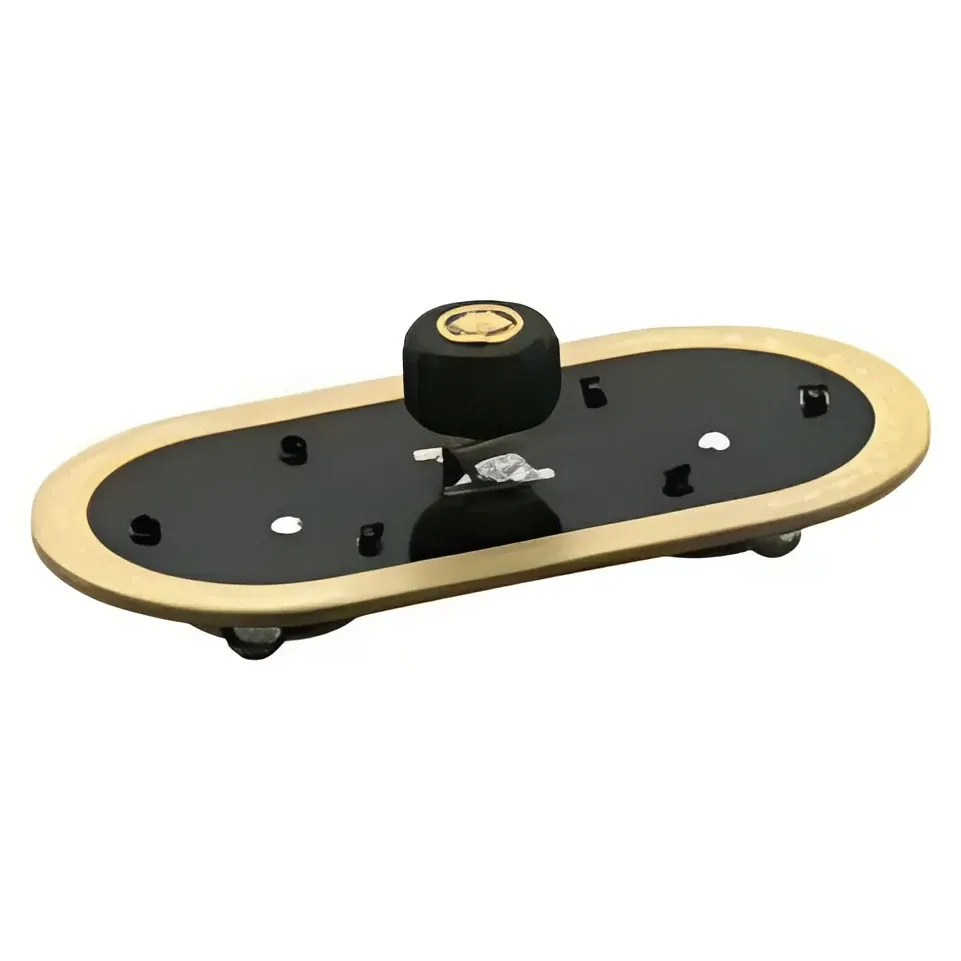

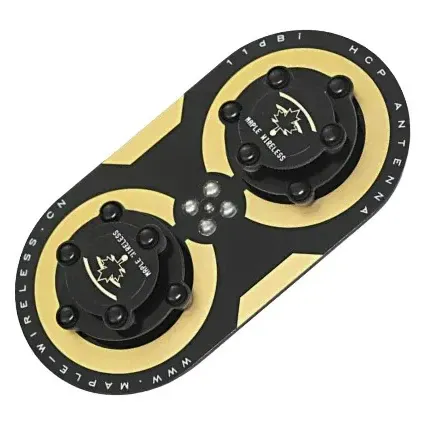

The Maple Wireless Strigiformes 5.8G is a compact directional patch antenna with 11 dBi gain and right-hand circular polarisation, made to mount directly on FPV goggles or a ground receiver with an SMA port. It focuses reception into a forward beam to stretch the range of 5.8 GHz analog video.

Key features

• 75° horizontal beamwidth and a front-to-back ratio better than 10 dB.
• Rated for 5500–5800 MHz.
• RHCP: pair it with RHCP antennas on the video transmitter.
• VSWR under 1.5 at 50 Ω, handling up to 10 W.
• 19 g in an 82 × 42 × 24 mm body.

Specifications

• Frequency range: 5500–5800 MHz
• Gain: 11 dBi
• Polarisation: RHCP
• Horizontal beamwidth: 75°
• Front-to-back ratio: over 10 dB
• Impedance: 50 Ω
• VSWR: under 1.5
• Max power: 10 W
• Connector: SMA
• Dimensions: 82 × 42 × 24 mm
• Weight: 19 g
• Operating temperature: −40 °C to +60 °C

A patch only covers the sky in front of you, so on a diversity receiver run it alongside an omni for close-in flying. Channels above 5800 MHz, such as the upper Raceband channels, fall outside its rated range.
