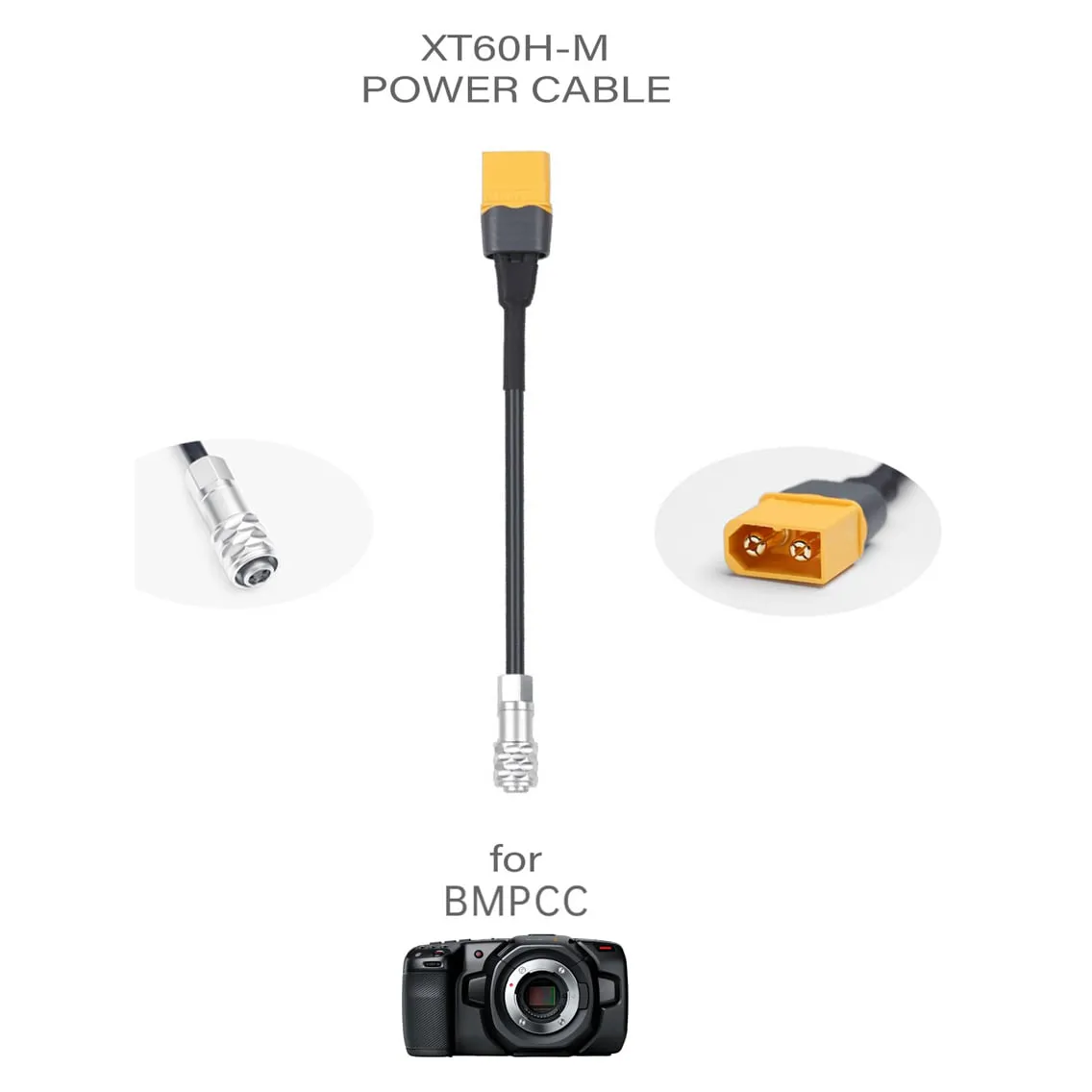

iFlight XT60H-Male Power Cable for 4K/6K Blackmagic Pocket Cinema Camera

Designed for custom heavy-lift cinelifters, this iFlight power cable connects a Blackmagic Pocket Cinema Camera (BMPCC) 4K or 6K to an XT60 power source. By replacing the heavy internal camera battery with a direct feed from your drone's power distribution or a dedicated BEC, you can significantly reduce payload weight and extend recording times during professional aerial shoots.

Key features

• Terminated with an XT60H male connector featuring a snap-on housing for improved strain relief and secure mating
• Connects directly to the standard Weipu 2-pin power input on BMPCC 4K and 6K bodies
• Uses flexible silicone wire to easily route through carbon fibre frames and gimbal assemblies

Specifications

• Input connector: XT60H Male
• Camera connector: Weipu 2-pin
• Compatible cameras: Blackmagic Pocket Cinema Camera 4K, 6K

Note: The BMPCC 4K/6K requires a strict input voltage between 12V and 20V. Do not connect this cable directly to a 6S LiPo battery (25.2V peak), as the overvoltage will permanently damage the cinema camera. Always route the XT60 connection through a high-current 12V or 15V step-down voltage regulator when flying on 6S builds.
