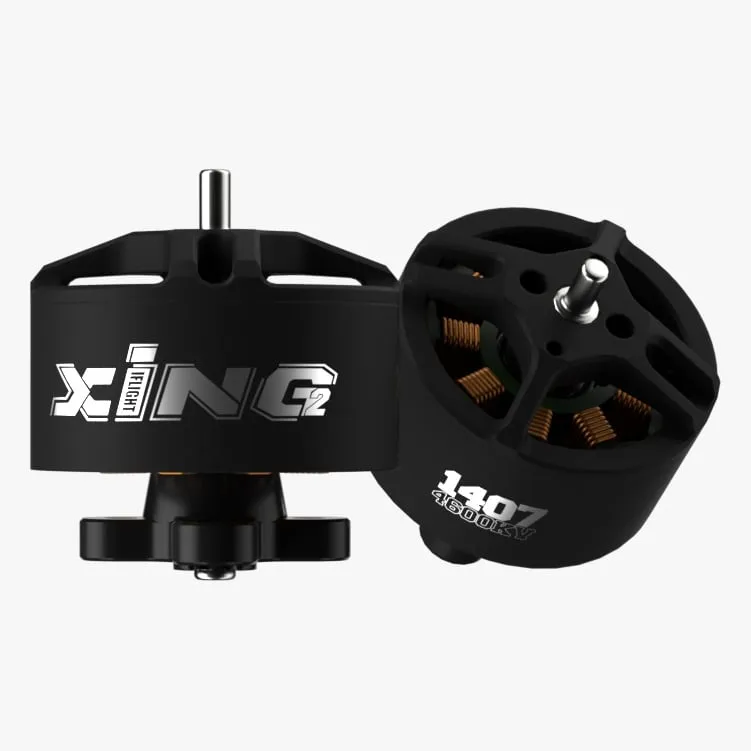

iFlight XING2 1407 4600KV Motor

The iFlight XING2 1407 4600KV is a high-performance micro brushless motor engineered for 3-inch to 4-inch toothpick and lightweight freestyle FPV builds. Tuned for 3S to 4S LiPo power, this 4600KV variant delivers punchy throttle response and reliable mid-range torque for agile sub-250g quadcopters.

Key features

• Signature XING2 unibell design machined from 7075 aerospace-grade aluminium for superior crash durability.
• Equipped with N52H curved arc magnets to minimise the stator air gap, driving higher efficiency and thrust.
• Features premium Japanese NSK bearings for smooth, vibration-free rotation.
• Integrated O-ring at the top bearing dampens impact force and protects against dust ingress.

Specifications

• Stator Size: 1407
• KV: 4600
• Input Voltage: 3-4S LiPo
• Magnets: N52H Curved
• Bell Material: 7075 Aluminium

This motor pairs seamlessly with lightweight 3-inch or 4-inch propellers on 20A to 30A AIO flight controllers, offering an aggressive yet efficient powerband for micro freestyle frames.
