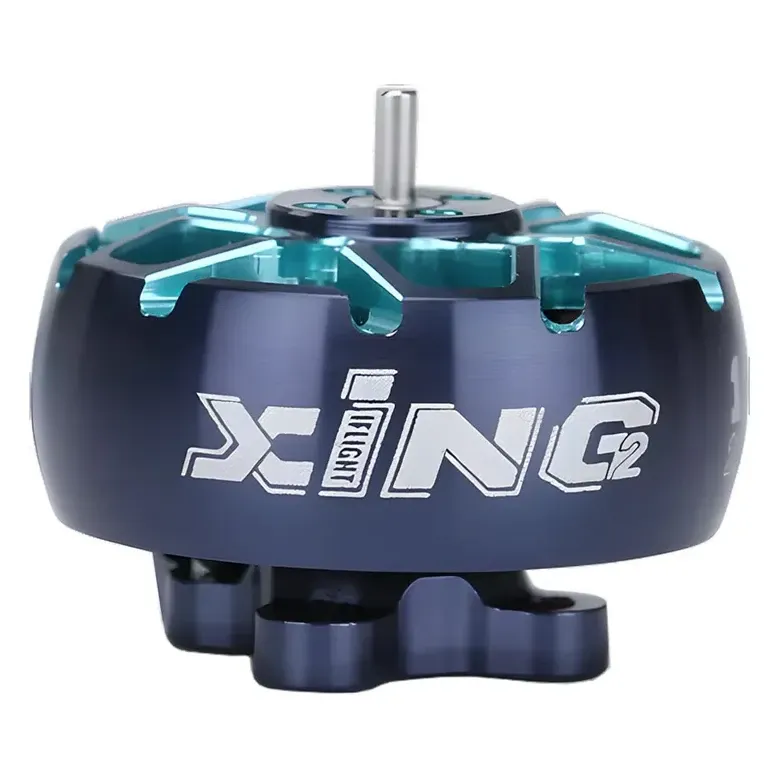

iFlight XING 1806 Unibell 2500KV Motor

The iFlight XING 1806 2500KV is a brushless motor designed for 3-inch cinewhoops, 4-inch ultralight builds, and heavy toothpick class FPV quads. The unibell construction machines the bell and top plate from a single piece of aerospace-grade aluminium, significantly increasing structural rigidity and preventing bell deformation during hard impacts.

Key features

• Unibell housing resists compression and physical damage in crashes.
• High-temperature N52H arc magnets maintain magnetic field strength under heavy thermal loads.
• Equipped with Japanese NSK bearings for reduced vibration and rotational friction.
• Dynamically balanced from the factory to eliminate high-frequency resonance that can affect your flight controller's gyro.

Specifications

• Stator size: 1806
• KV rating: 2500
• Magnets: N52H curved
• Bearings: NSK
• Mounting pattern: 12x12mm (M2)

The 2500KV rating pairs well with a 6S battery on aggressive 3-inch freestyle builds, or a 4S to 6S power system swinging 4-inch propellers for efficient mid-range cruising.
