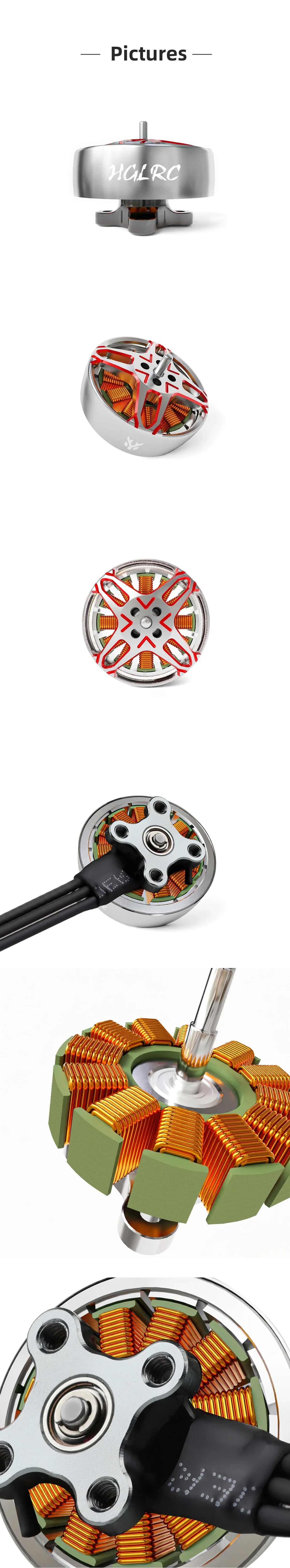

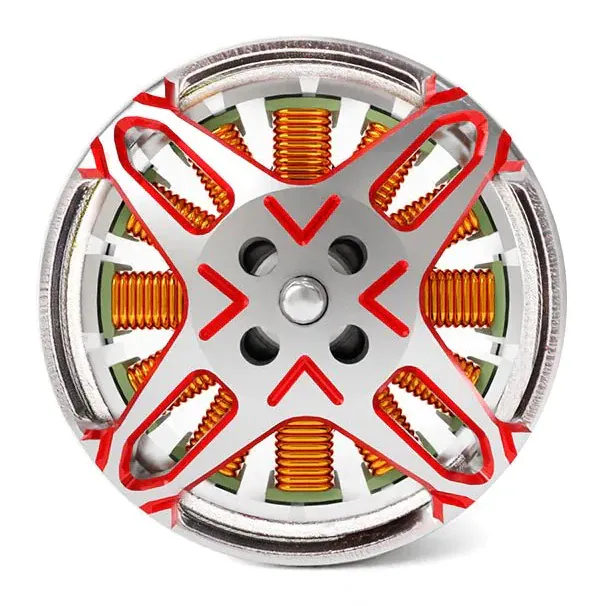

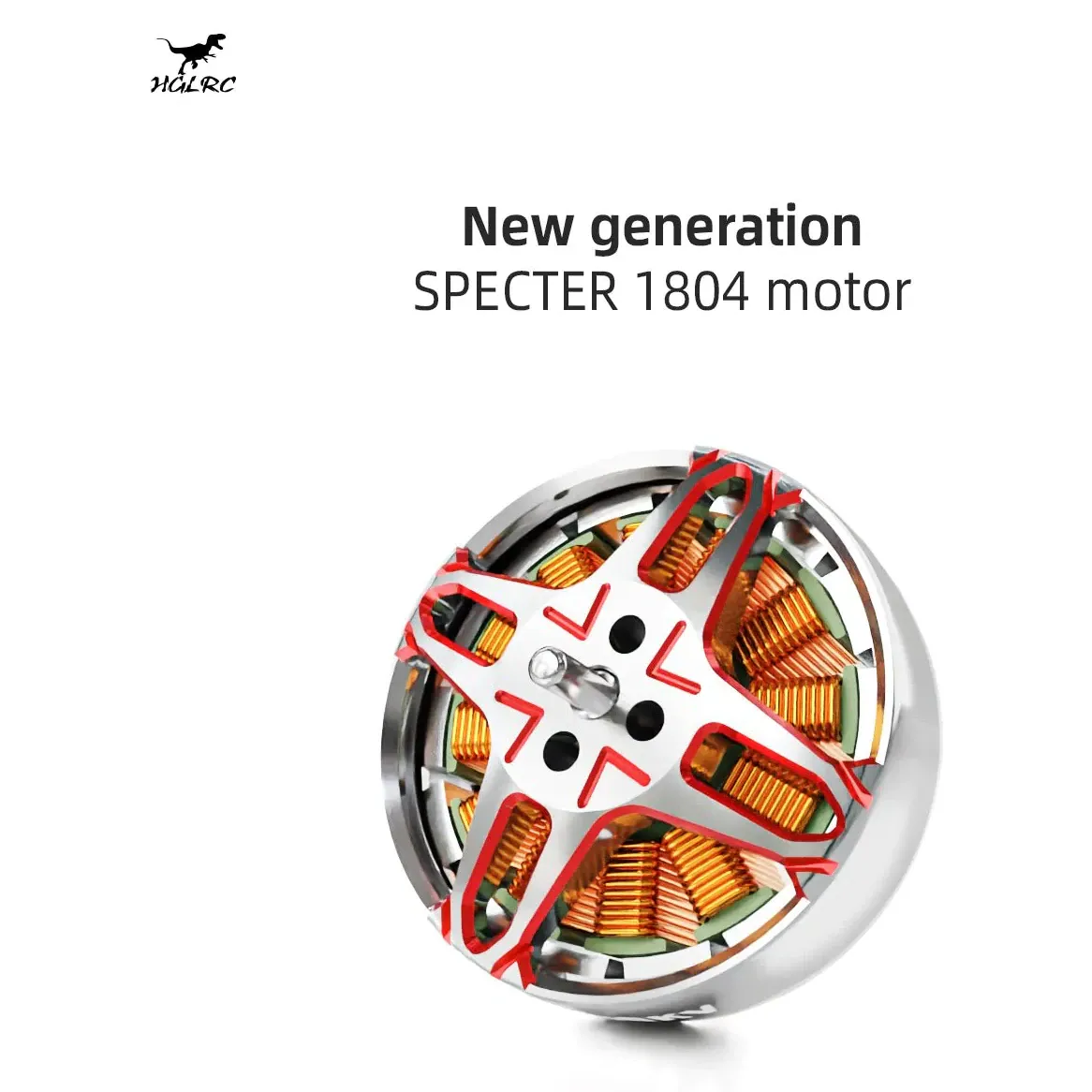

HGLRC Specter 1804 Motor (3500KV)

The HGLRC Specter 1804 3500KV is a lightweight, high-torque motor engineered for 3-inch freestyle sub-250g builds and 4-inch toothpick drones. Featuring a wider 1804 stator footprint, it delivers significantly better low-end torque and prop authority compared to traditional 1404 or 1504 options, ensuring crisp recovery during aggressive manoeuvres.

Key features

• Wide 1804 stator design maximises torque for heavier 3.5-inch or 4-inch propellers.

• N52H high-temperature magnets and a 12N14P configuration ensure smooth, consistent power delivery.

• Fitted with 150mm of 24AWG silicone wire for easy routing to an AIO board or individual ESCs.

• Standard 1.5mm shaft supports a wide range of T-mount micro propellers.

Specifications

• Stator Size: 1804

• KV: 3500

• Input Voltage: 3-4S LiPo

• Configuration: 12N14P

• Shaft Diameter: 1.5 mm

• Motor Dimensions: 22.7 x 13.2 mm

• Mounting Pattern: 12x12 mm (M2)

• Weight: 13.3 g

Rated for 3S to 4S power systems, the 3500KV variant strikes a balance between flight time and punch. It pairs perfectly with 20A–30A AIO flight controllers on lightweight carbon frames.
