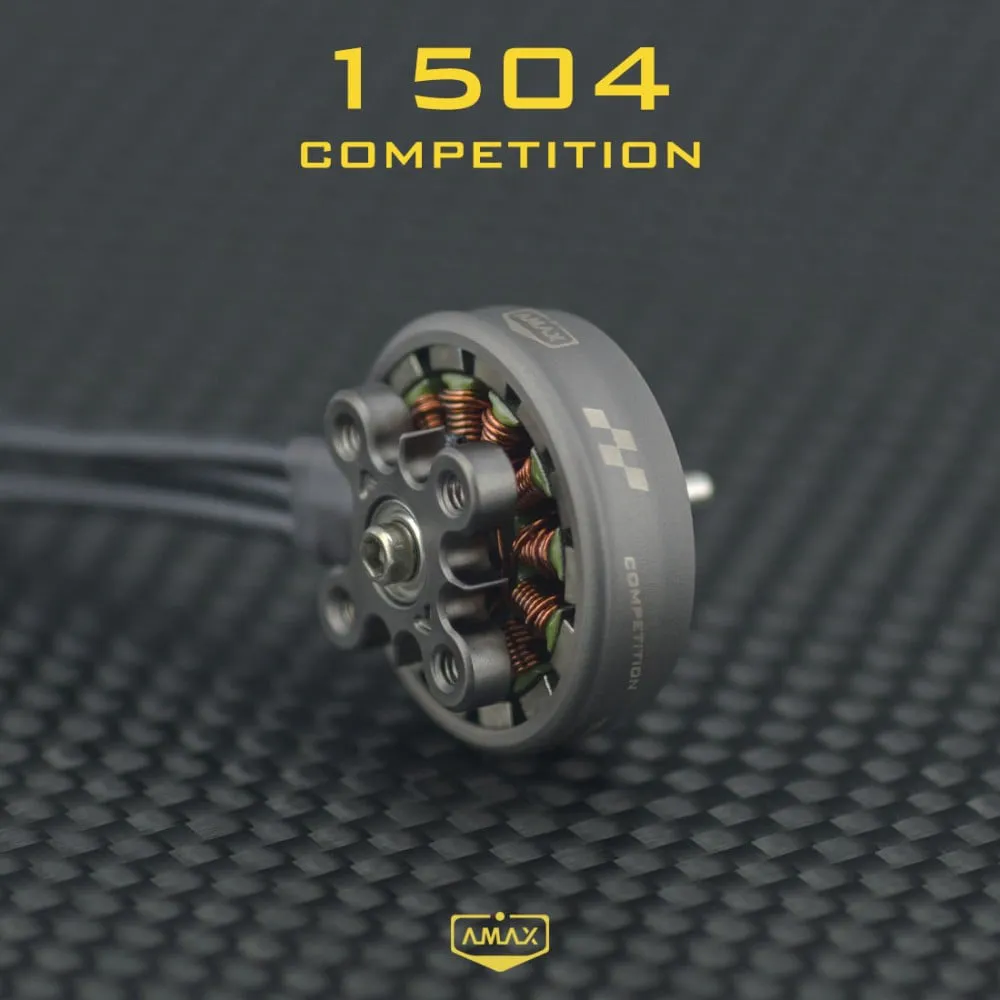

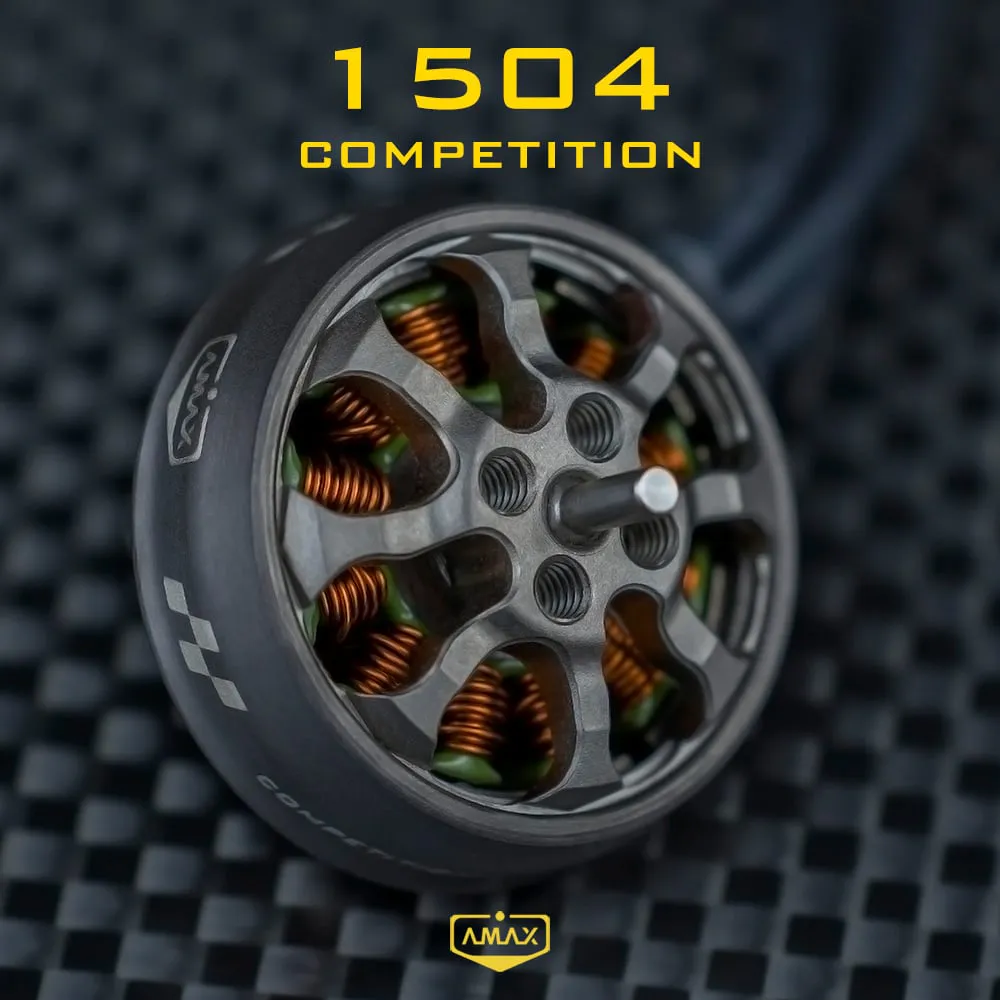

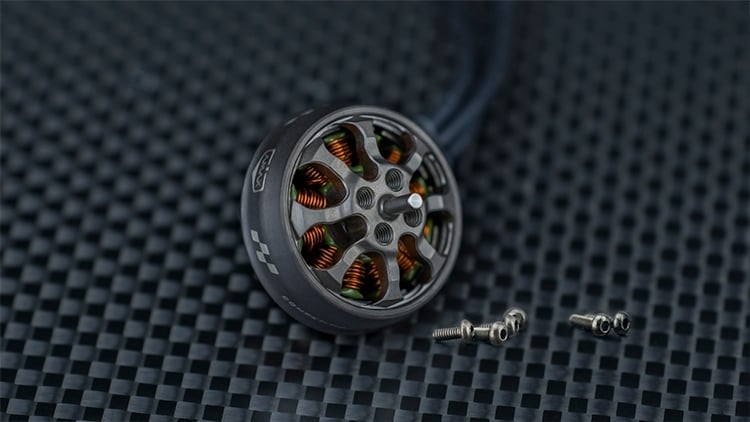

AMAX Competition 1504 Motor

The AMAX Competition 1504 4700KV brushless motor is purpose-built for ultralight 3-inch to 4-inch toothpick quads and micro freestyle drones. By utilizing a wider 15mm stator compared to the traditional 1404 size, AMAX extracts greater low-end torque and faster spool-up times, giving pilots precise authority during aggressive flight manoeuvres. At 4700KV, this variant is heavily optimised for high-RPM efficiency on 3S to 4S LiPo configurations.

Key features

• Wider 1504 stator geometry for enhanced torque and immediate throttle response

• Engineered specifically for ultralight micro and competition toothpick frames

• Standard 1.5mm unthreaded shaft compatible with a vast range of T-mount propellers

• Uses the industry-standard 9x9mm mounting pattern for modern carbon fibre frames

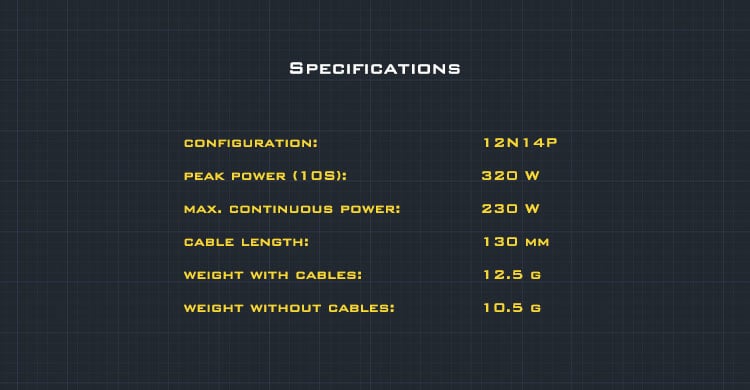

Specifications

• Brand: AMAX

• KV: 4700

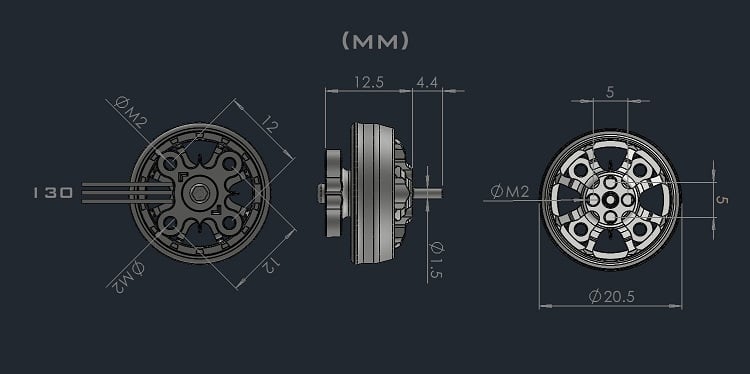

• Stator Dimensions: 15x4mm

• Supported Voltage: 3-4S LiPo

• Shaft Diameter: 1.5mm

• Mounting Pattern: 9x9mm, M2

Pair the AMAX Competition 1504 with a lightweight 20A to 30A AIO flight controller and a low-pitch 3-inch or 3.5-inch T-mount propeller. This combination keeps current draw in check while delivering an optimal thrust-to-weight ratio for technical racetracks or tight park freestyle.
