HGLRC LED LongXL 13mm RGB Strips, 5V (4 Pack)

HGLRC LongXL 13mm strips are tiny programmable RGB lights for whoops, micro quads and race builds that need orientation or race lighting. Each strip carries four RGB 1010 LEDs on 5V, and this pack holds four strips for 16 LEDs in total.

Key features

• RGB 1010-package LEDs keep each strip to 13.33 x 4.32 x 1.9 mm and 0.12 g

• Colours and patterns set from the flight controller's LED output or an HGLRC W2812 LED controller

• Plug-in or soldered connection, so a broken strip swaps out without rewiring the quad

• Four dual-ended SH1.0 3-pin leads (70 mm) and four pieces of heat shrink included

Specifications

• LEDs: 4 x RGB 1010 per strip, 16 per pack

• Input voltage: 5V

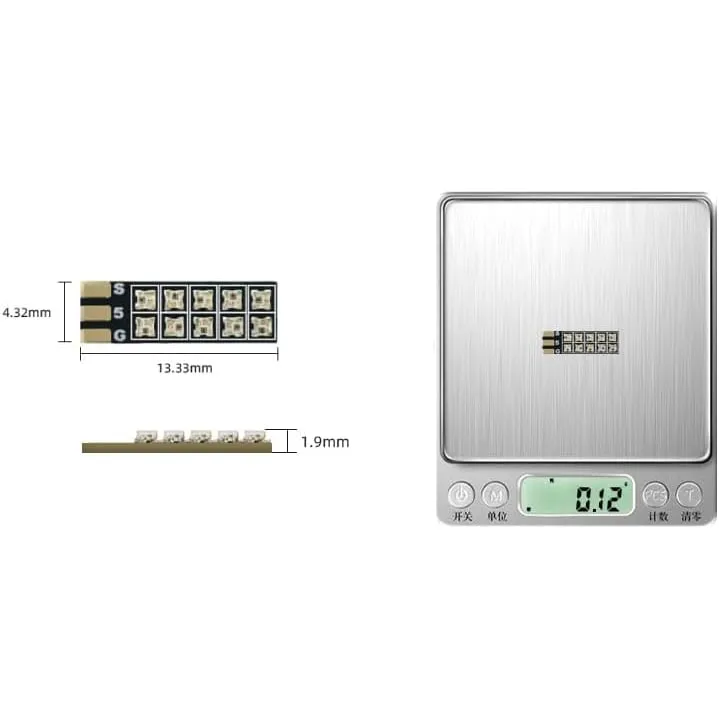

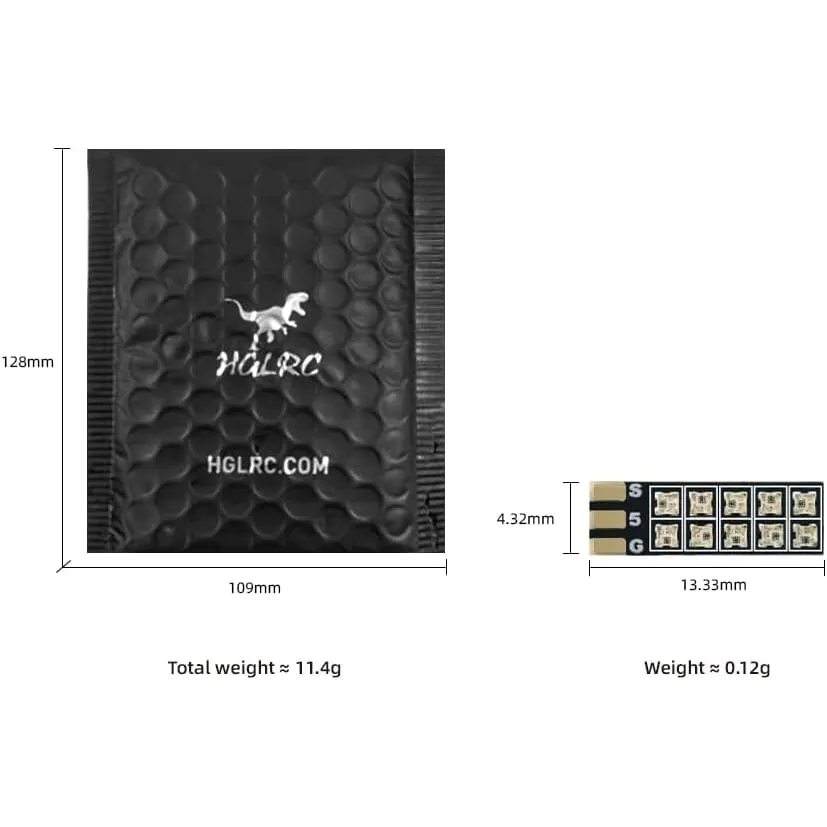

• Strip size: 13.33 x 4.32 x 1.9 mm

• Weight: 0.12 g per strip

• Leads: SH1.0 3-pin, dual-ended, 70 mm

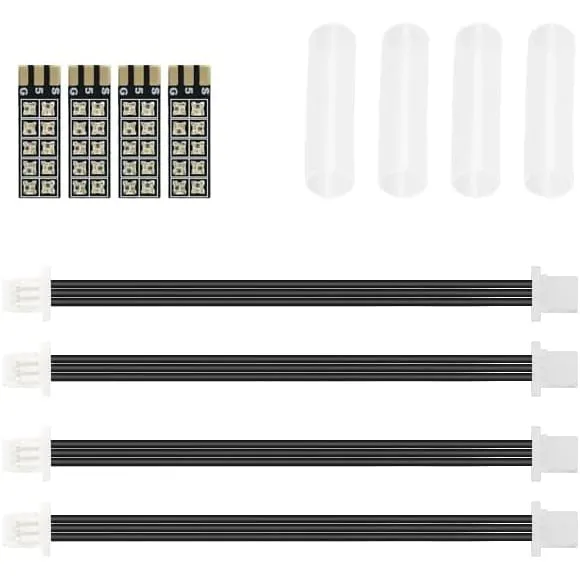

• In the box: 4 strips, 4 leads, 4 heat-shrink sleeves

Run the strips from a 5V pad, never straight from the battery, and connect the data line to the flight controller's LED pad before setting colours in the configurator's LED strip tab.
