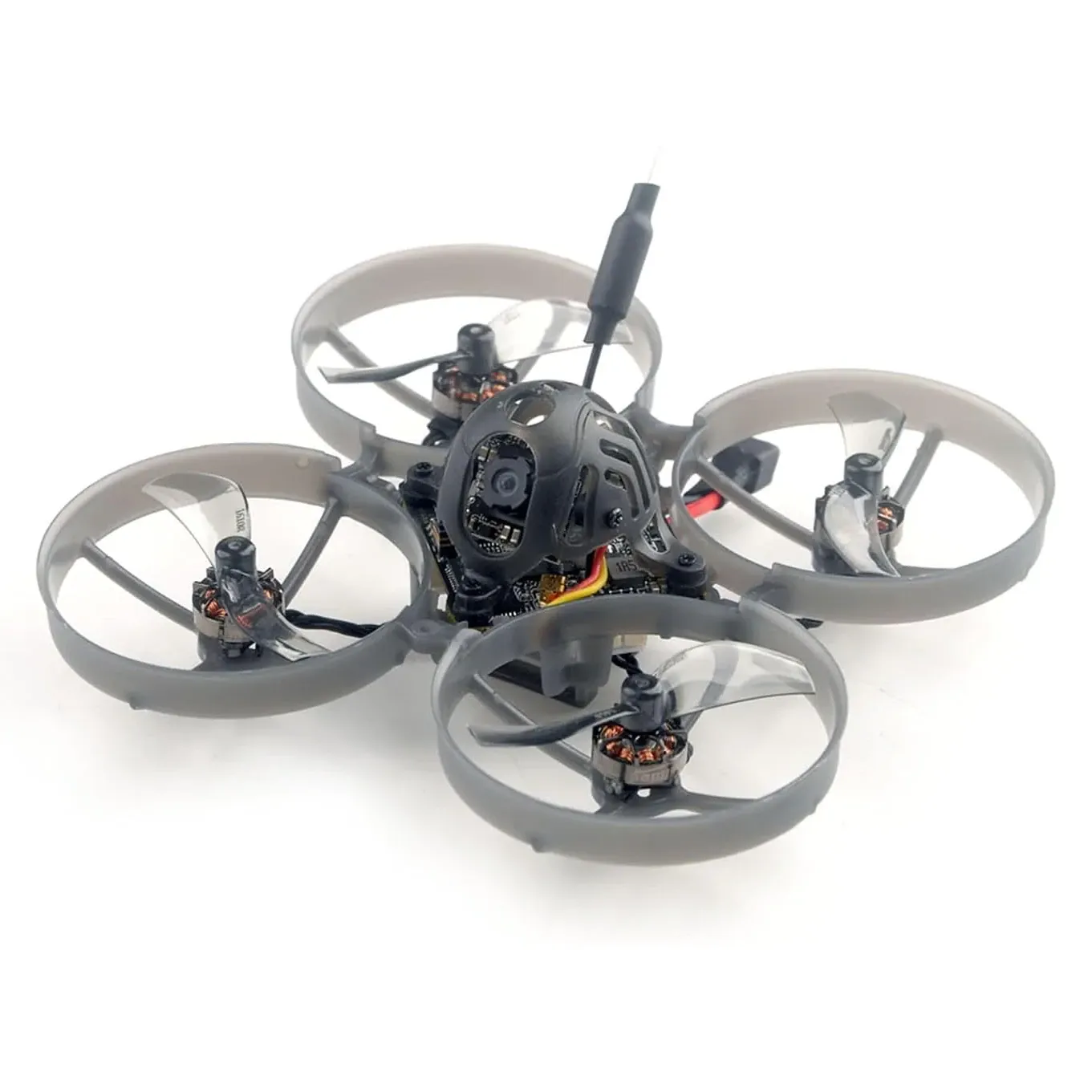

Happymodel Mobula7 1S 75mm ELRS Brushless Whoop BNF

The Happymodel Mobula7 1S is a 75 mm brushless tiny whoop for indoor flying and tight outdoor lines. This is the V2 version with a Caddx Ant camera, and the ELRS receiver is built into the flight controller, so it binds to a 2.4GHz ELRS radio with no extra wiring. Batteries are not included.

Key features

• X12 5-in-1 AIO board combines the flight controller, 12A BLHeli_S 4-in-1 ESC, SPI ELRS receiver, OpenVTX and Betaflight OSD

• OpenVTX up to 400mW with race (RCE) and pit modes for race events

• RS0802 20000KV motors with a unibell design, 1.5 mm shafts and a PCB bottom plate

• Caddx Ant 1/3-inch CMOS 1200TVL analog camera

• Runs on 1S LiPo or LiHV for around 5 minutes per pack

Specifications

• Wheelbase: 75 mm

• Size: 99 × 99 × 40 mm

• Weight: 24 g

• Frame: Mobula7 V4

• Flight controller: X12 5-in-1 AIO

• ESC: 12A BLHeli_S, 4-in-1

• Receiver: SPI ELRS, 2.4GHz

• VTX: OpenVTX, up to 400mW

• Camera: Caddx Ant, 1/3-inch CMOS, 1200TVL

• Motors: RS0802 20000KV, 1.5 mm shaft

• Battery: 1S LiPo/LiHV, 450–650mAh recommended (not included)

• Flight time: Around 5 minutes

Budget for a few 1S 450–650mAh packs, a 1S charger and analog 5.8GHz goggles for video. ELRS major versions do not talk to each other, so check that your transmitter module runs the same major version as the quad's receiver before binding.
