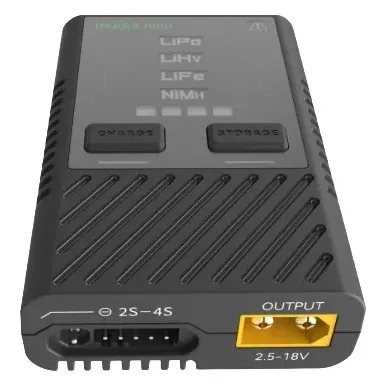

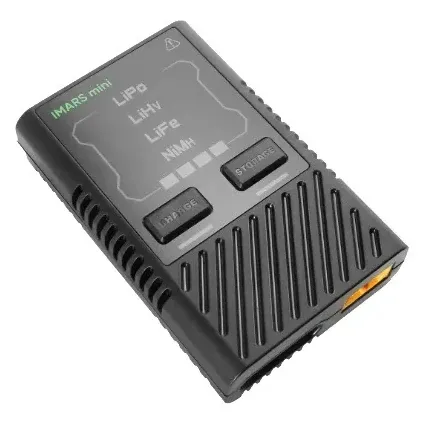

Gens ace iMars Mini G-Tech 2-4S 60W Smart Charger

The Gens ace iMars Mini is a compact 60 W balance charger for 2-4S packs, powered from USB-C, for charging small-quad, RC car and plane packs at the field. With a Gens ace G-Tech smart battery connected it reads the pack type and voltage through the smart balance connector and starts at the recommended current after 5 seconds; other packs charge once you select the chemistry and mode by hand.

Key features

• Chemistries: 2-4S LiPo, LiHV and LiFe, plus 2-12S NiMH
• G-Tech recognition through an IC in the battery — no menu setup for G-Tech packs
• Automatic storage function, discharging at up to 3 W to bring packs to storage voltage
• 1-5 A charge current, adjusted automatically, with 0.4 A per-cell balancing
• USB-C input, 5-20 V — QC, PD, BC1.2 and Apple 2.4 A sources work; 5 V/1 A adapters are not supported
• Built-in battery voltage alarm

Specifications

• Max charge power: 60 W
• Charge current: 1-5 A (automatic)
• Storage discharge power: 3 W
• Balance current: 0.4 A per cell
• Input: USB-C, 5-20 V DC, max 3 A
• Output: XT60
• Supported batteries: LiPo, LiHV, LiFe 2-4S; NiMH 2-12S
• Operating temperature: 0-40 deg C
• Dimensions: 85 x 55 x 21 mm
• Weight: approx. 64 g

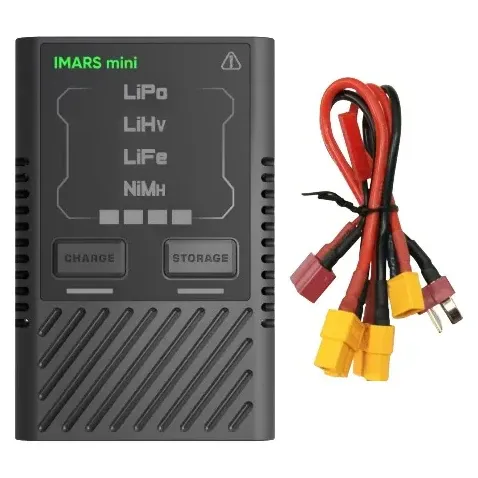

• In the box: charger, XT60-to-Deans adapter, second XT60 adapter lead, manual

Feed it from a USB-C PD adapter or power bank that can deliver 20 V at 3 A to reach the full 60 W — a 5 V/2.4 A source caps input at 12 W, and no power adapter is included. At 60 W a 4S pack charges at up to about 3.5 A, roughly 2C on a 1500 mAh pack, so it is best matched to 2-4S packs up to a few thousand mAh.
