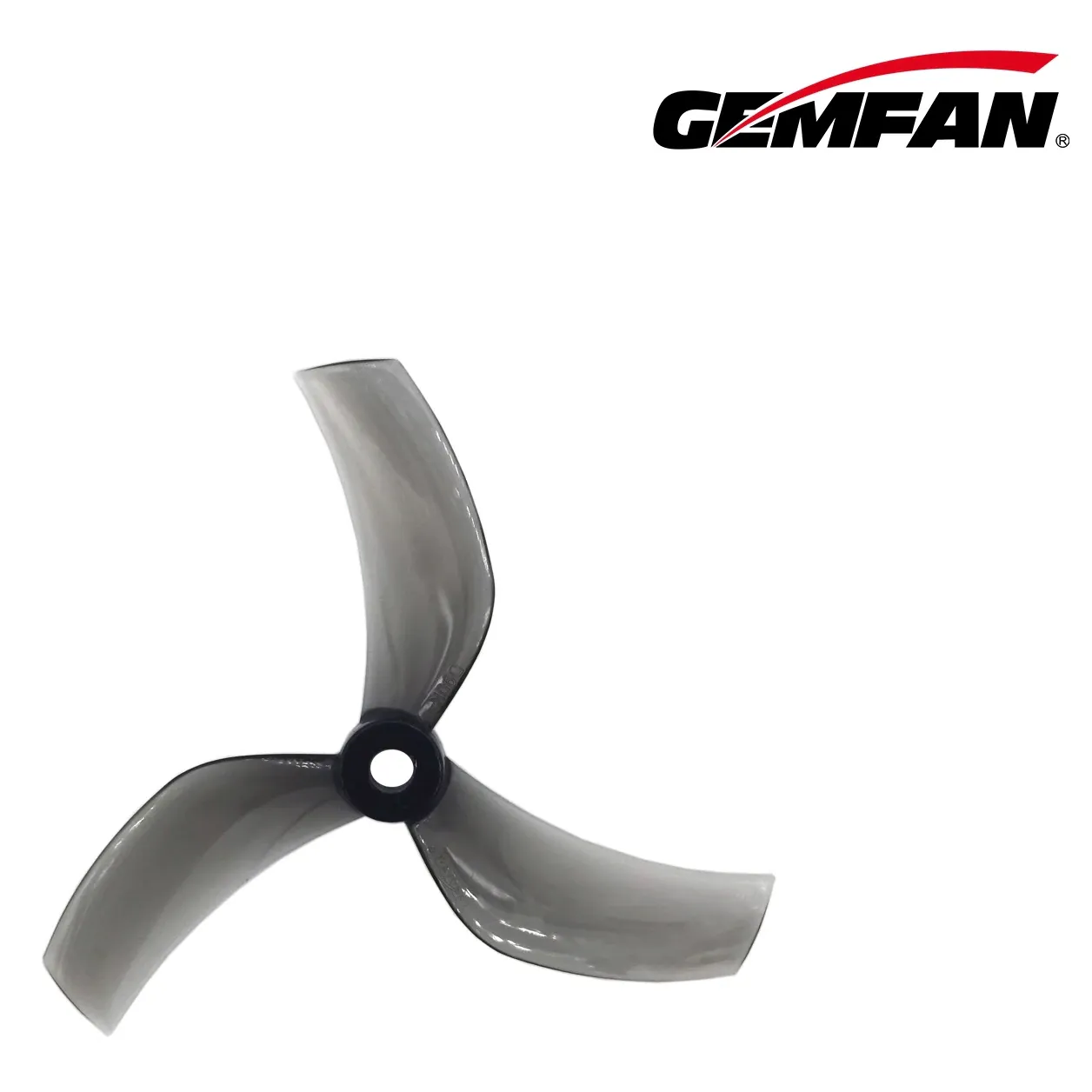

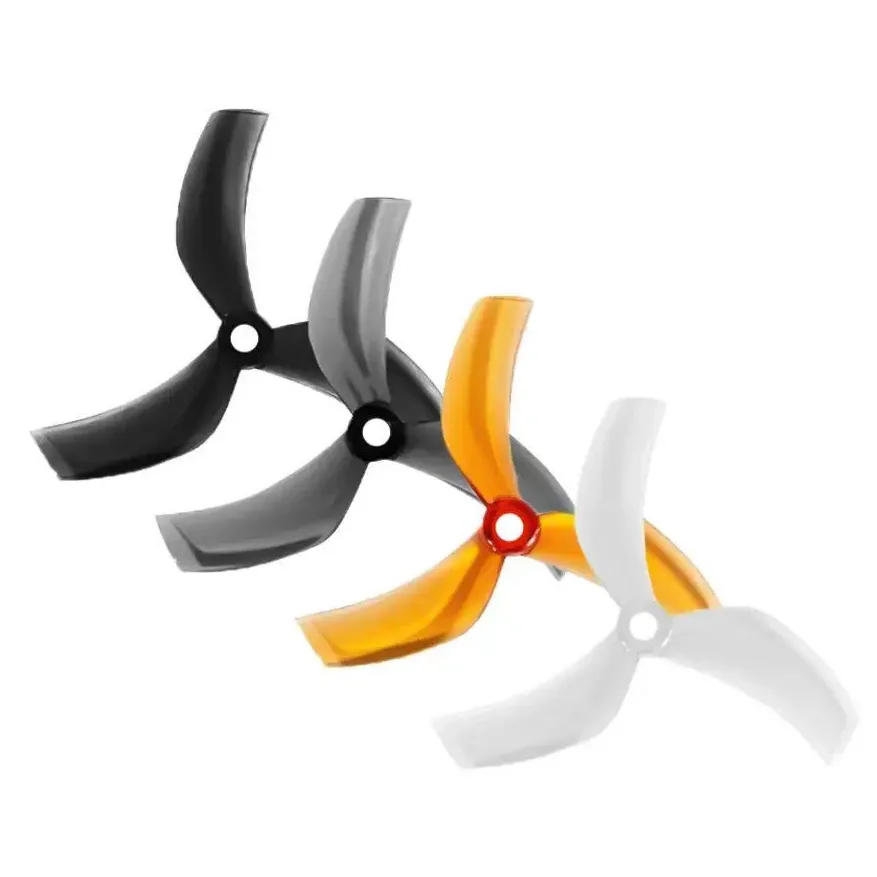

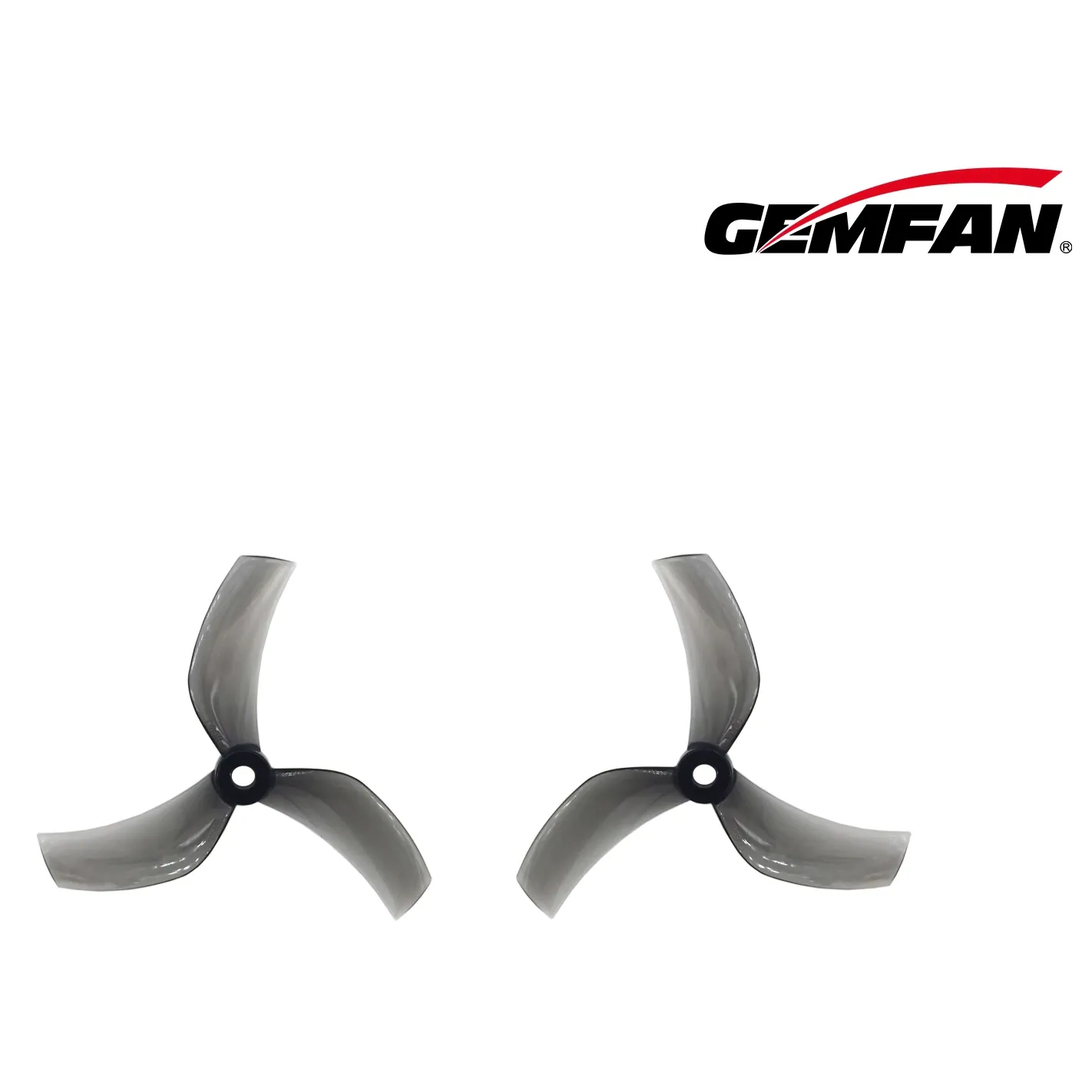

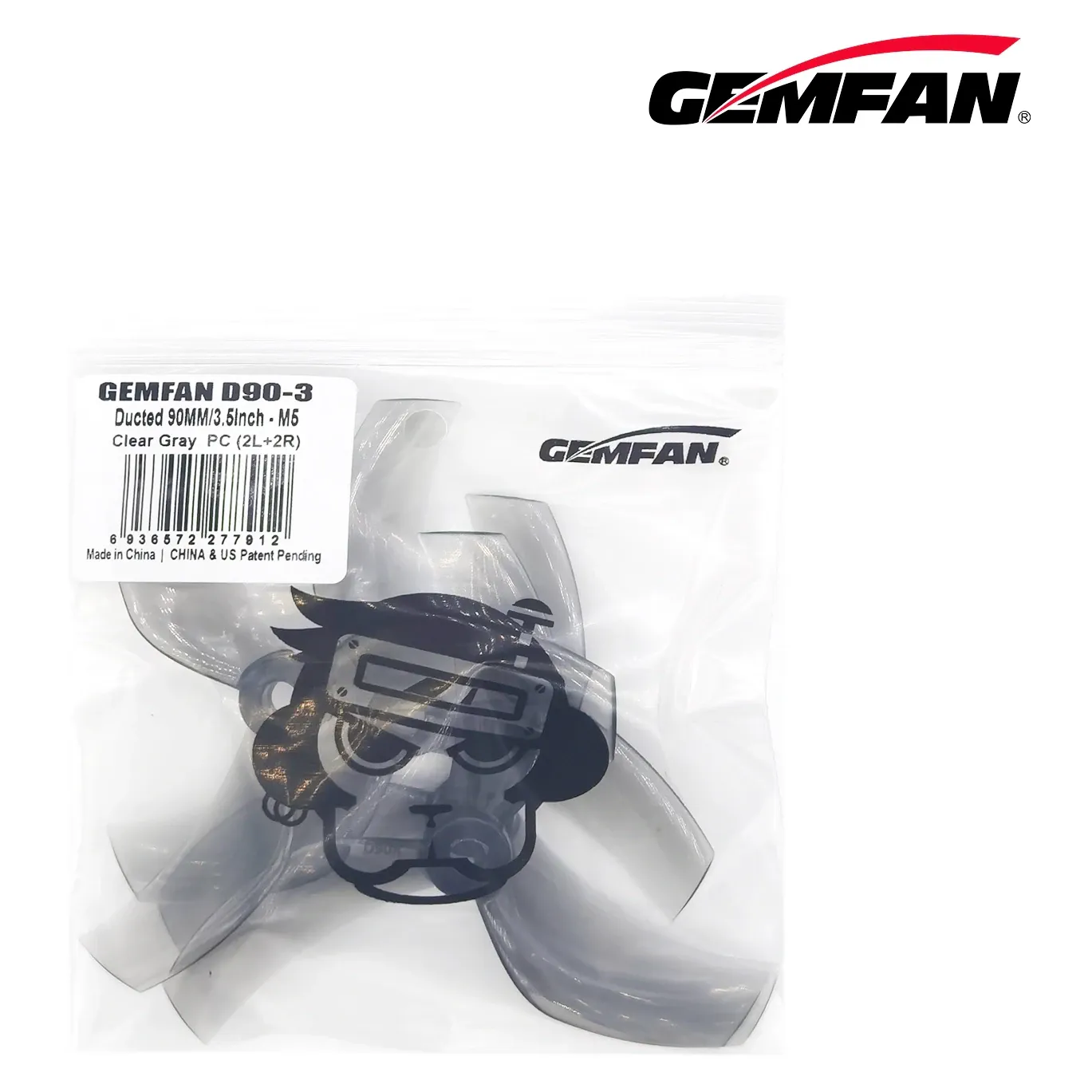

Gemfan D90 90mm Ducted 3-Blade Propeller — M5 Shaft (Set of 4 — 2CW+2CCW)

The Gemfan D90 is a 90mm (3.5-inch) three-blade propeller engineered specifically for ducted cinewhoops and heavy-lift pusher builds. Crafted from durable polycarbonate, this prop features a tighter tip clearance profile to maximise thrust and efficiency when spinning inside 90mm prop guards. The standard M5 hub makes it a direct fit for larger cinewhoop motors, providing stable, vibration-free cinematic footage during indoor or proximity flights.

Key features

• Specifically profiled for 90mm ducted frames to improve thrust and reduce noise
• Standard 5mm centre hole for secure mounting on M5 threaded motor shafts
• Tough polycarbonate construction withstands duct strikes and tight indoor flying
• Tuned for heavy 3.5-inch cinewhoops requiring aggressive control

Specifications

• Propeller diameter: 90 mm (3.5")
• Pitch: 3"
• Blades: 3
• Material: Polycarbonate
• Shaft mounting: M5 (5 mm)
• Weight: 2.3 g

Pair these props with 2203 to 2206-sized motors on 3.5-inch ducted frames like the ProTek35 or Pavo35 for optimal cinematic performance.
