Gemfan 1612 16x12 Glass Fiber Nylon Electric Propeller (1 pc)
Gemfan 1612 16x12 Glass Fiber Nylon Electric Propeller (1 pc)
Gemfan 1612 16x12 Glass Fiber Nylon Electric Propeller (1 pc)
Gemfan
Fixed-Wing Props

Gemfan 1612 16x12 Glass Fiber Nylon Electric Propeller (1 pc)

₹599Incl. GST

SKU GF-ELEC-1612-1P-CCW

Rotation: CCWProp Size: 16"Blade Count: 2Prop Mount: AdaptorMaterial: Glass Fiber Nylon
Dispatched within 2–3 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

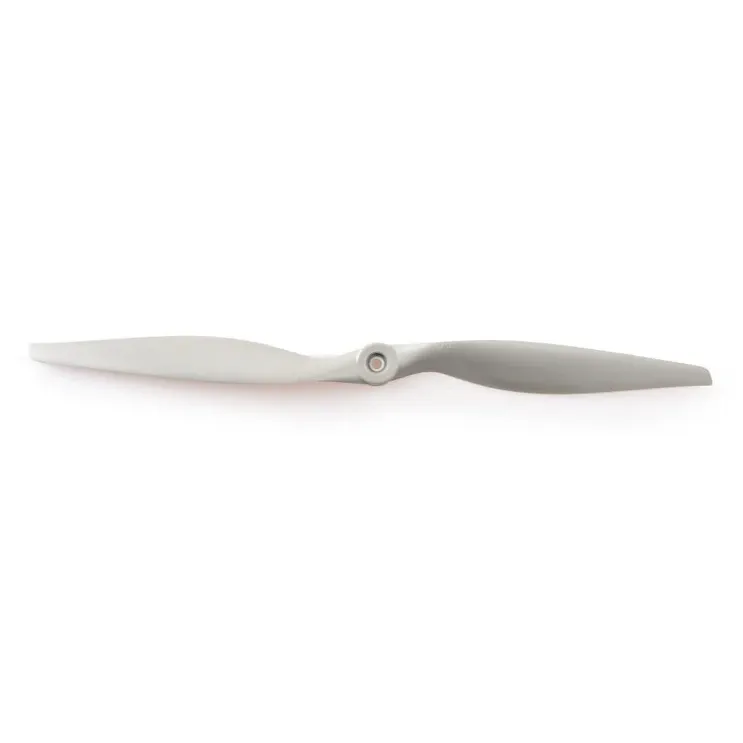

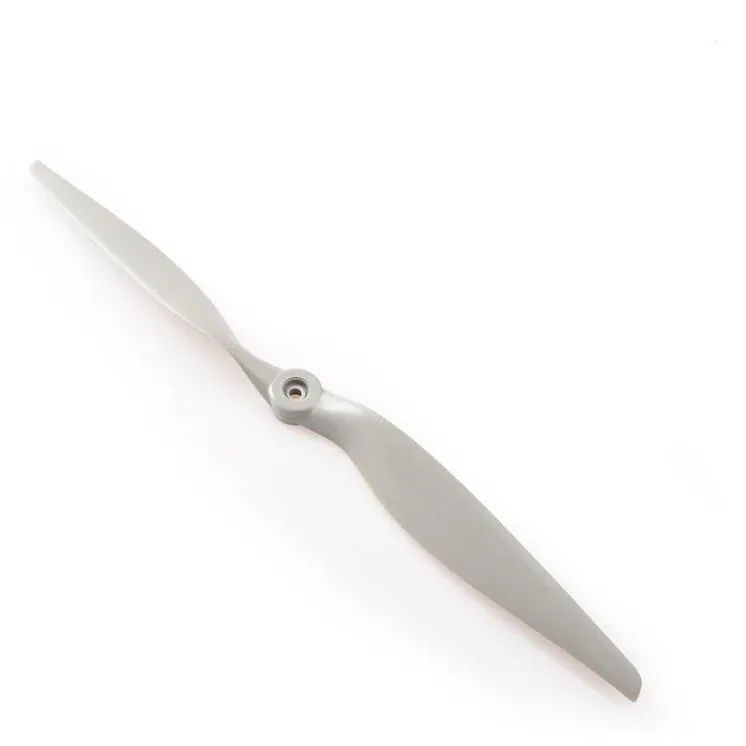

The Gemfan 1612 is a 16x12-inch two-blade electric propeller moulded in glass-fibre-reinforced nylon for large electric fixed-wing aircraft. Its 12-inch pitch gives a high pitch speed for fast-cruising airframes on 4110–5025-class motors; for more thrust at low speed, a lower-pitch 16-inch prop is the better pick.

Key features

  • Elliptical blade planform, factory balanced, with a reinforced hub root built for high-RPM loads

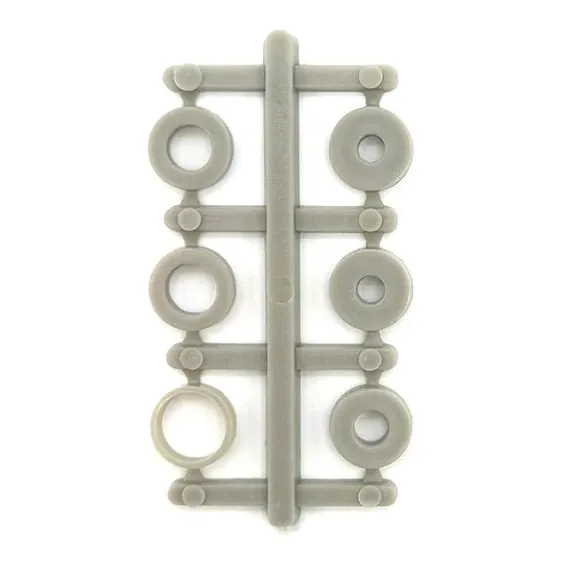

  • 9.4mm hub bore with a six-ring adapter set for 3, 3.17, 4, 5, 6 and 8mm motor shafts
  • Standard CCW rotation, the direction used on most nose-mounted (tractor) motors
  • Sold singly, so one damaged prop can be replaced without buying a pair

Specifications

  • Diameter: 16 in (406mm)
  • Pitch: 12 in
  • Blades: 2
  • Material: Glass-fibre-reinforced nylon
  • Hub bore: 9.4mm
  • Adapter rings: 3, 3.17, 4, 5, 6 and 8mm
  • Weight: 56.6g
  • Suggested motor size: 4110–5025 class
  • Rotation: CCW (standard)
  • Colour: Clear grey
  • Quantity: 1 propeller

A CW (reverse) prop is only needed for pusher layouts or counter-rotating twin-motor setups, so check which way your motor spins before ordering. Fit the adapter ring that matches your shaft exactly; a loose ring lets the prop run off-centre and vibrate.
