GAONENG GNB 700mAh 3S 11.1V 120C XT30 LiPo Battery

A 3S 700mAh LiPo from GAONENG's GNB range, built for 90-130 mm brushless micros, 2.5 inch toothpicks and small cinewhoops that run 3S on an XT30 lead. At 62 g it adds little to all-up weight, while the 120C rating keeps voltage up through hard throttle.

Key features

• 120C discharge: about 84 A on paper from a 0.7 Ah pack, so it holds voltage on punch-outs instead of sagging.
• Compact 20 x 28 x 64 mm pack: suits the narrow battery pads used on toothpick and micro frames.
• XT30 discharge lead: the standard plug on 2-3 inch micro builds, no adapter needed.
• 1C to 5C charging: 0.7 A for the gentlest charge, up to 3.5 A for a quick turnaround at the field.
• 7.77 Wh energy: 11.1 V nominal, 12.6 V fully charged.

Specifications

• Model: GNB7003S120A
• Capacity: 700 mAh
• Configuration: 3S1P
• Voltage: 11.1 V nominal, 12.6 V full charge
• Energy: 7.77 Wh
• Discharge rate: 120C
• Charge rate: 1C to 5C

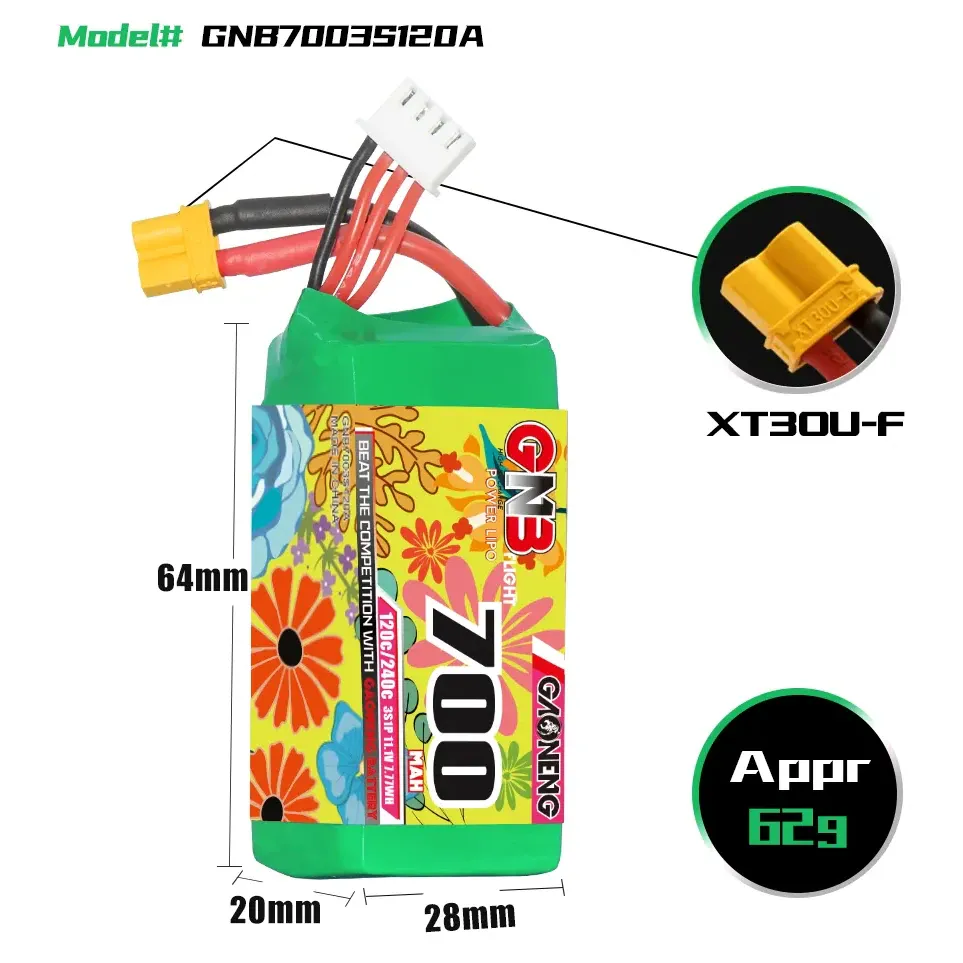

• Dimensions: 20 x 28 x 64 mm (H x W x L)
• Weight: 62 g (+/- 2 g)
• Discharge connector: XT30

Balance-charge it on a LiPo charger set to 3S (4.2 V per cell), and store it at about 3.8 V per cell if it will sit unused for more than a few days.
