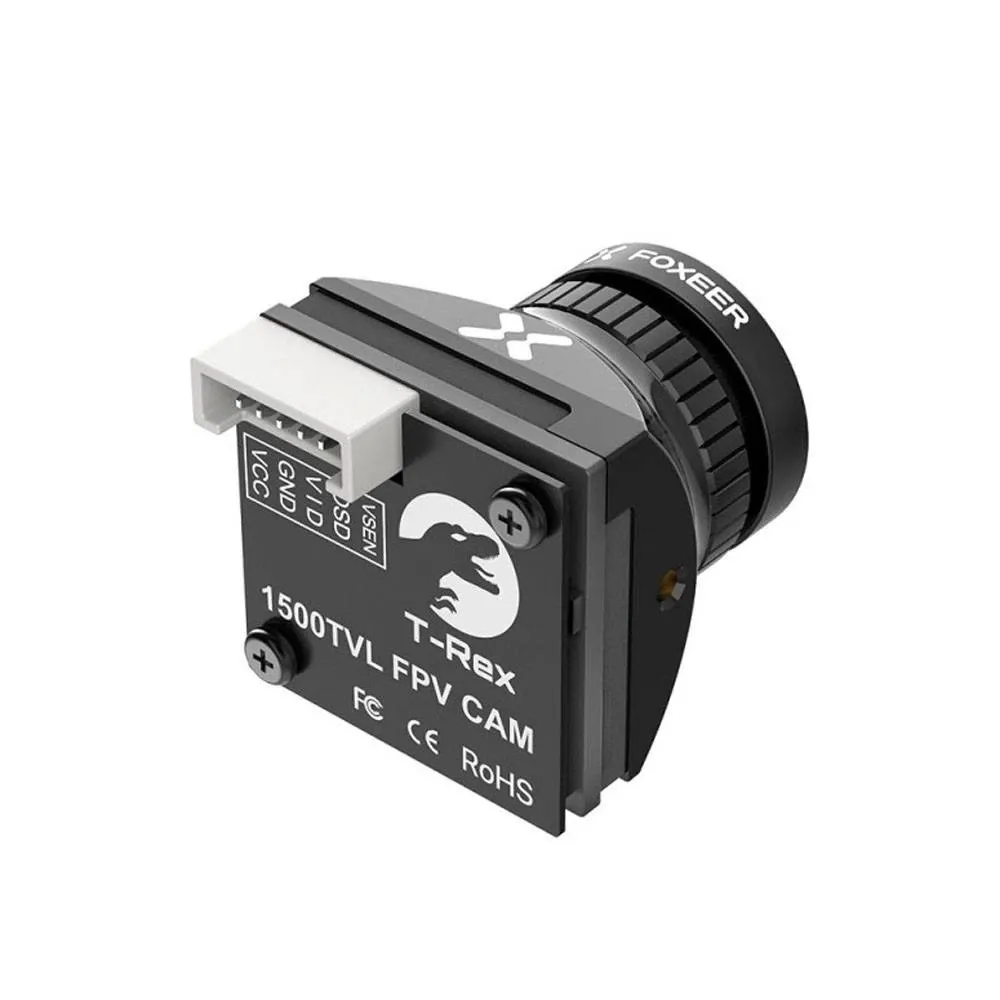

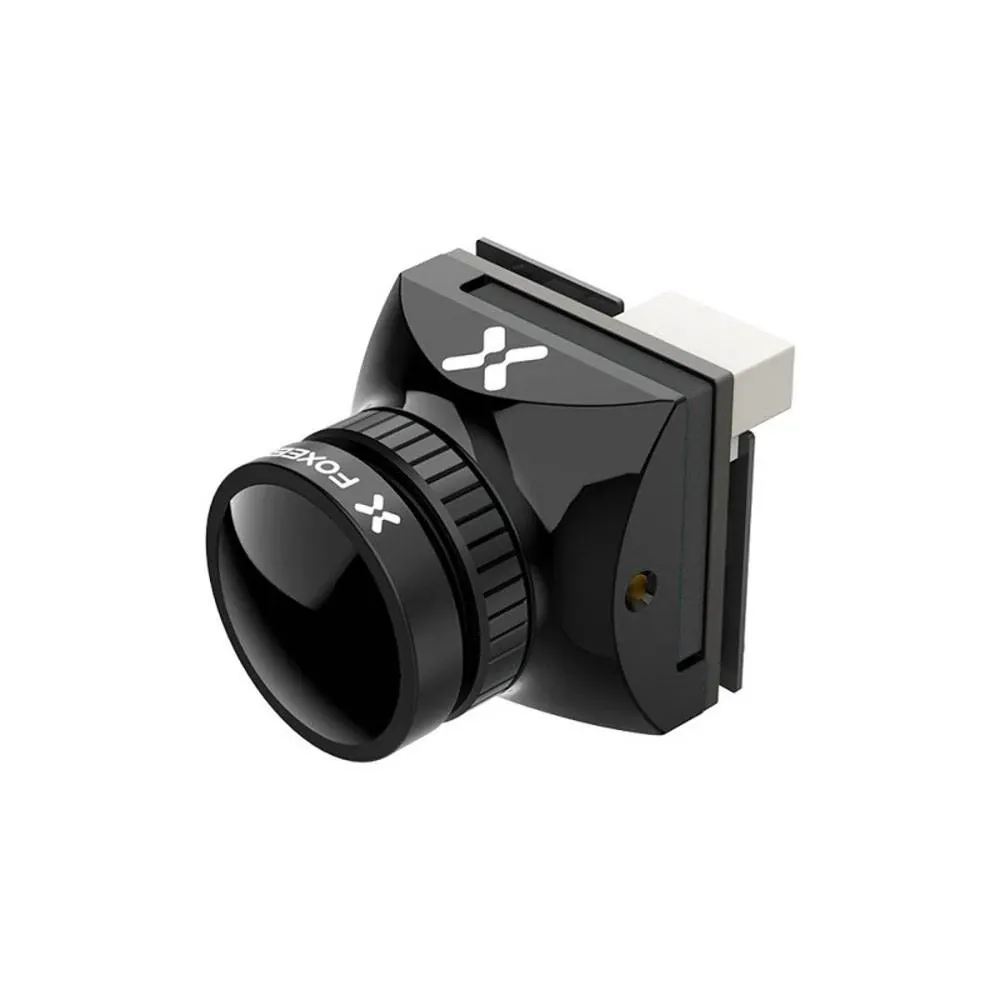

Foxeer T-Rex Micro 1500TVL Camera

The Foxeer T-Rex Micro is a high-resolution 1500TVL analogue FPV camera designed to deliver exceptional clarity and wide dynamic range for freestyle and racing builds. Housed in a standard 19x19mm micro form factor, it upgrades traditional analogue video feeds with sharper details, reduced latency, and vibrant colour reproduction.

Key features

• High-fidelity 1500TVL resolution powered by a 2MP CMOS sensor for a noticeably sharper analogue feed.

• Super WDR technology handles extreme lighting transitions—like diving from bright sunlight into dark shadows—without blowing out or blinding the sensor.

• Fully switchable 4:3/16:9 aspect ratios and PAL/NTSC formats ensure seamless compatibility with your preferred goggle screens.

• Exceptional low-light capability with 0.001 Lux minimum illumination, allowing you to safely push your flying sessions well past dusk.

Specifications

• Sensor: 2MP CMOS

• Resolution: 1500TVL

• Lens: 1.7mm

• Aspect Ratio: 4:3, 16:9 (Switchable)

• TV System: PAL, NTSC (Switchable)

• Input Voltage: 4.5V - 16V

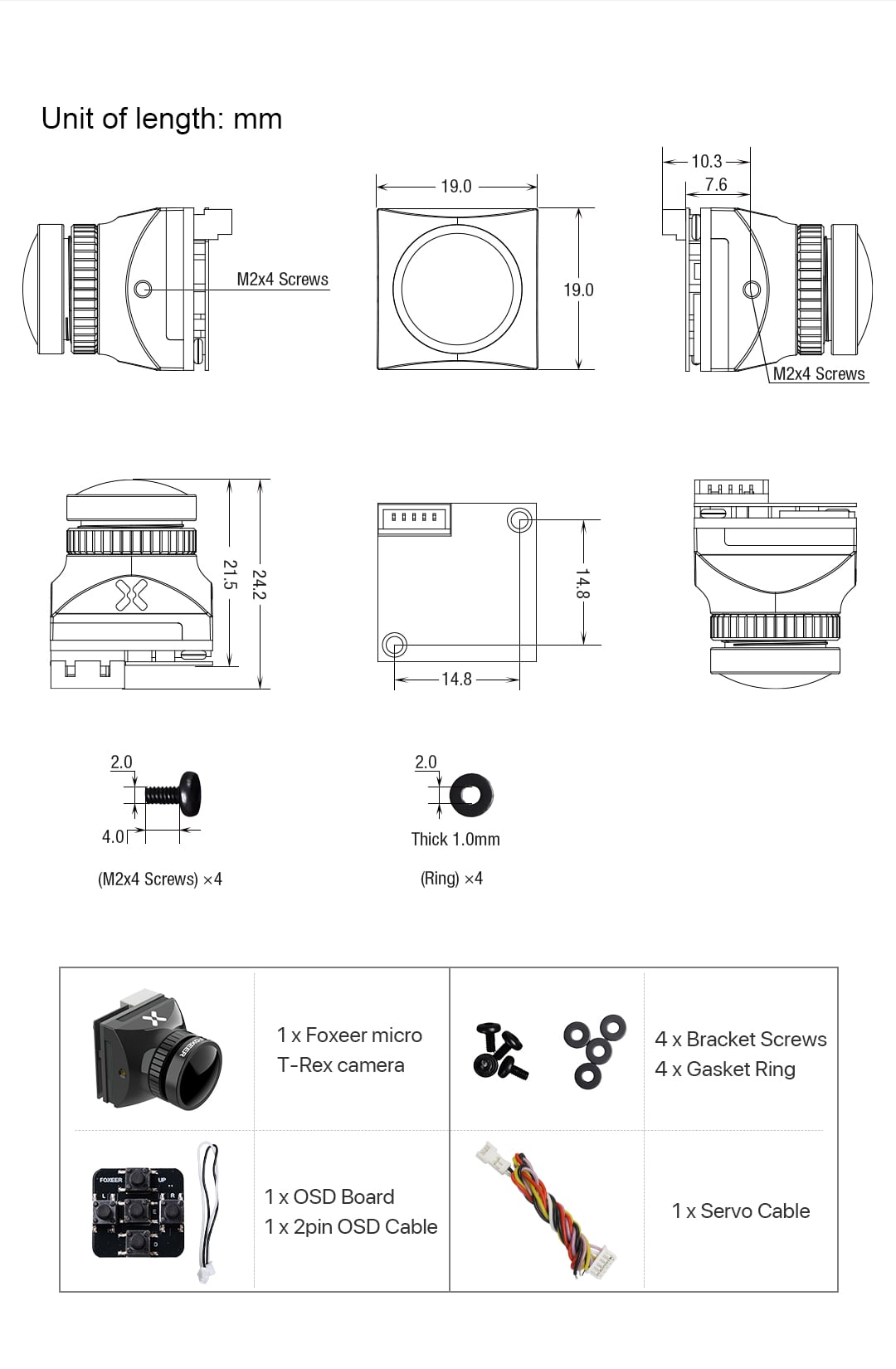

• Dimensions: 19x19mm

• Weight: 8.6g

Compatible with any standard 19mm frame mount, the T-Rex Micro accepts a wide 4.5V to 16V input range, making it easy to wire directly to a video transmitter or a 5V/9V flight controller BEC.
