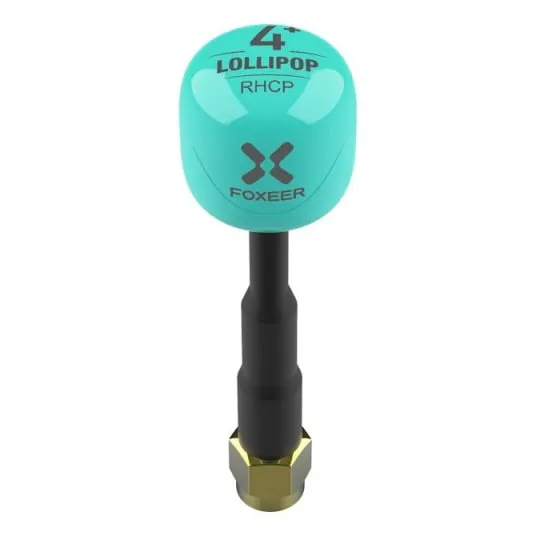

Foxeer Lollipop 4 Plus 5.8GHz FPV Antenna 2-Pack

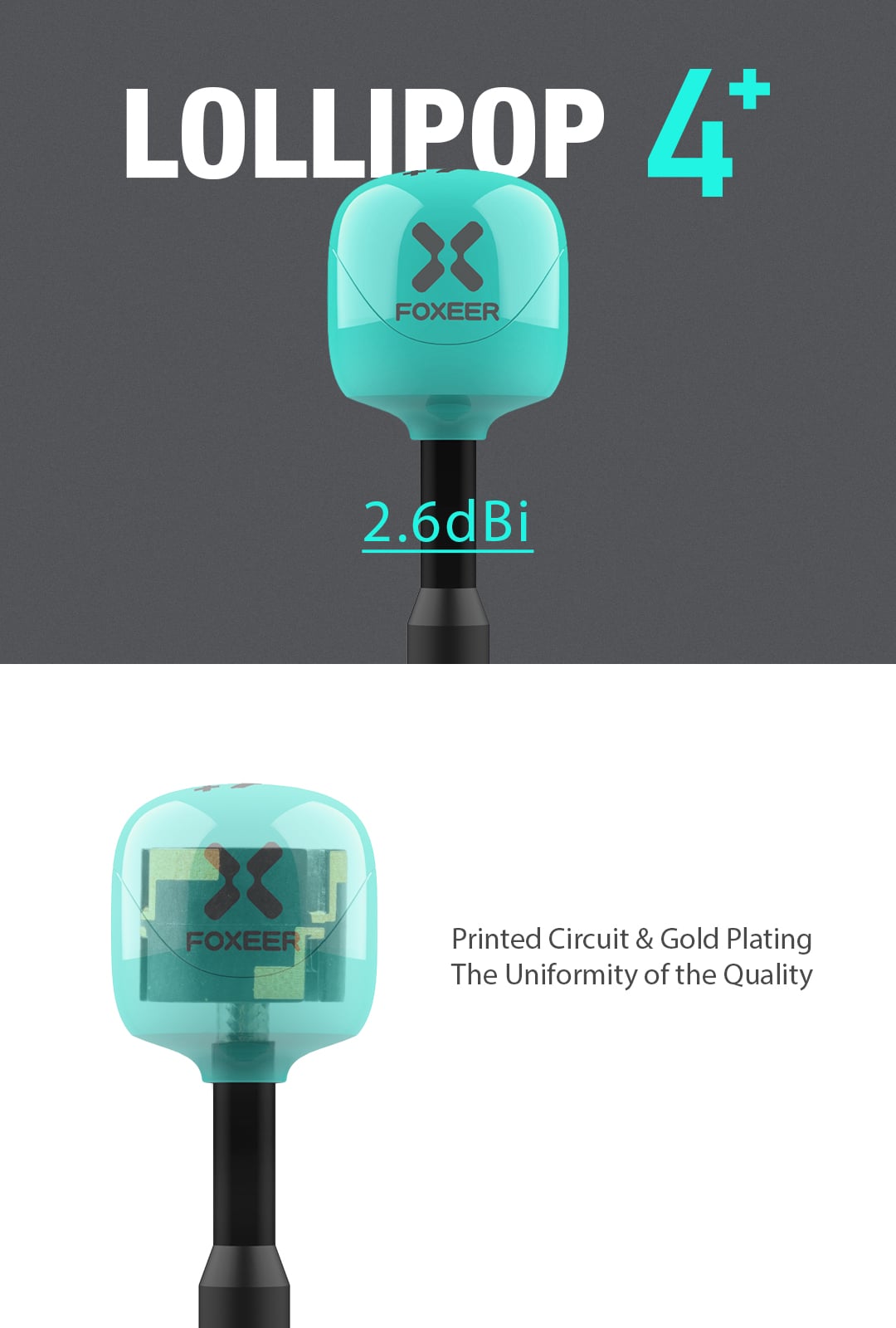

The Foxeer Lollipop 4 Plus is a compact 5.8GHz omnidirectional antenna pair designed to provide consistent video transmission and reception for FPV drones and goggles. Utilising a printed circuit element with gold-plating and laser direct structuring (LDS), it delivers a highly uniform radiation pattern suited for freestyle, racing and long-range builds where robust signal penetration is critical.

Key features

• Optimised laser direct structuring (LDS) internal element ensures consistent signal strength and minimal interference.

• Tough PC+ABS outer shell protects the delicate active components against heavy impacts.

• Outstanding 98% radiation efficiency with an axial ratio close to 1 for superior multipath rejection.

• Maintains a low 1.07 standing wave ratio (SWR) at the 5.75GHz centre frequency.

• Lightweight 7.8g profile per antenna reduces physical stress on VTX and goggle RF connectors.

Specifications

• Frequency: 5.8GHz (5.5 - 6GHz bandwidth)

• Centre frequency: 5.75GHz

• Gain: 2.6 dBi

• Polarisation: RHCP

• Axial ratio: Close to 1

• Radiation efficiency: 98%

• SWR: 1.07 (at centre frequency)

• Housing material: PC+ABS

• Dimensions: 11 x 60 mm

• Weight: 7.8 g

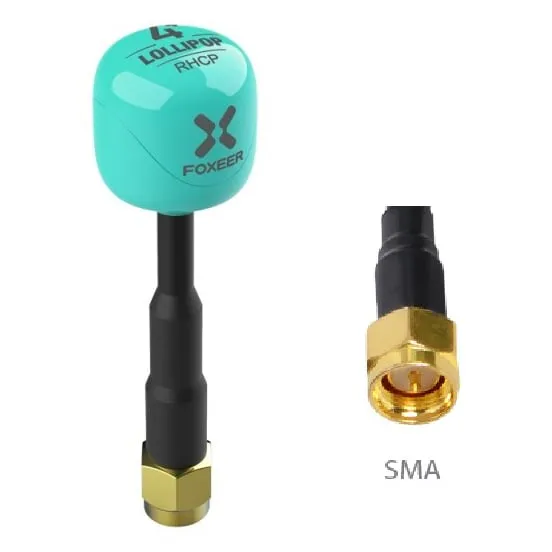

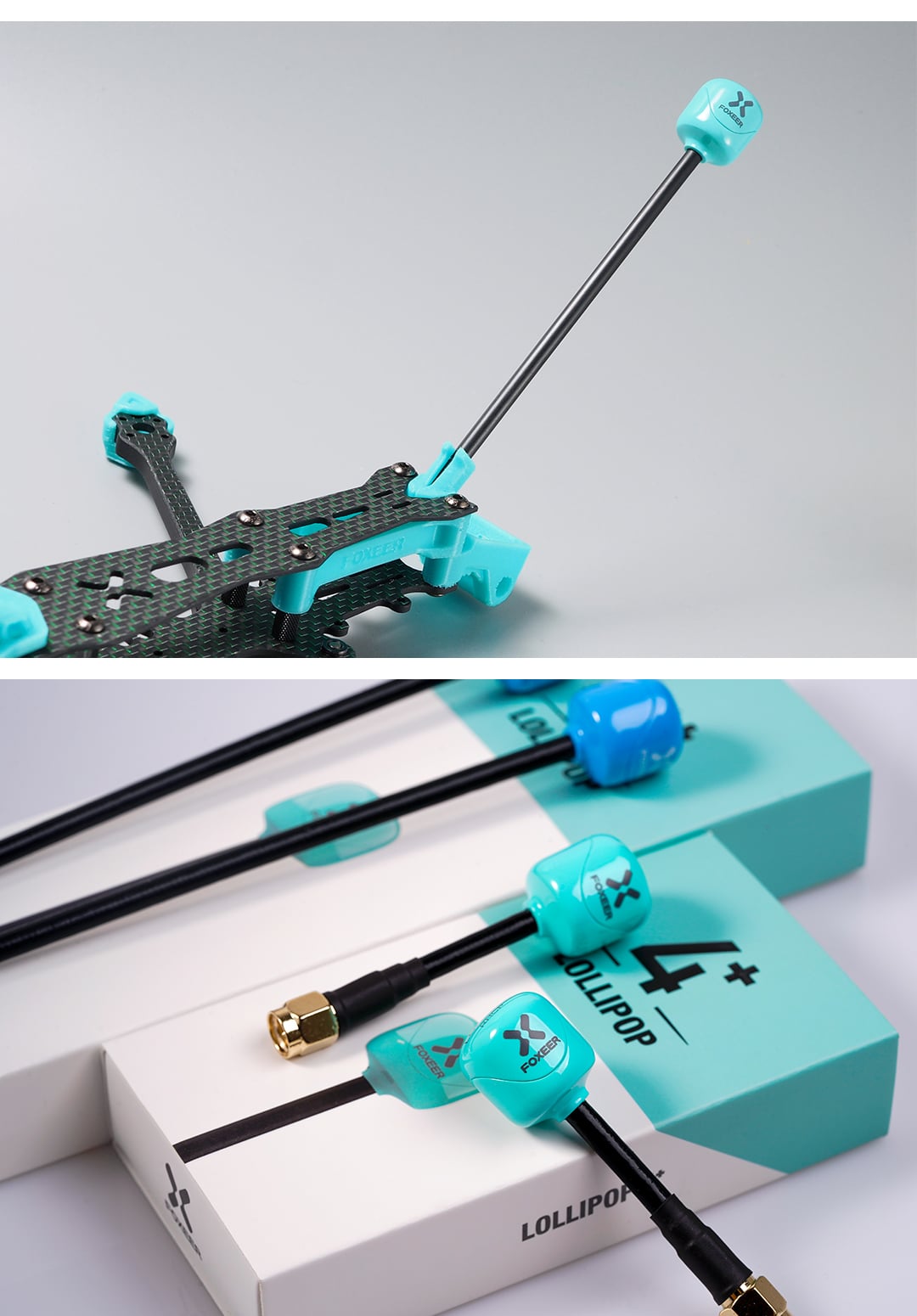

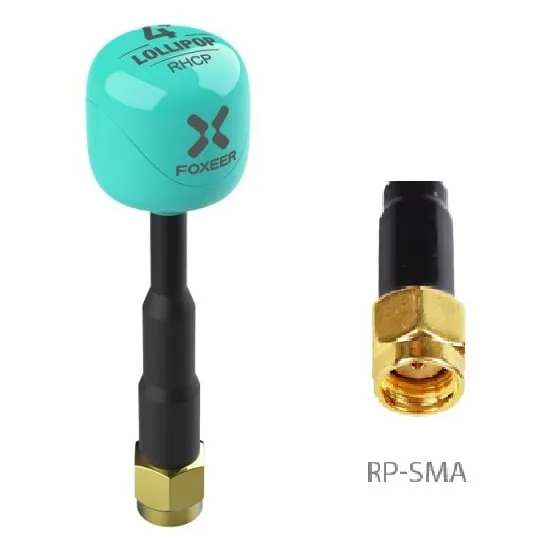

Supplied as a matched pair, these RHCP antennas are an ideal choice for outfitting a drone's video transmitter while keeping a spare, or matching them on your FPV goggle receiver ports. Always check the RF connectors on your existing VTX or goggles to ensure you select the correct SMA or RP-SMA option before purchasing.
