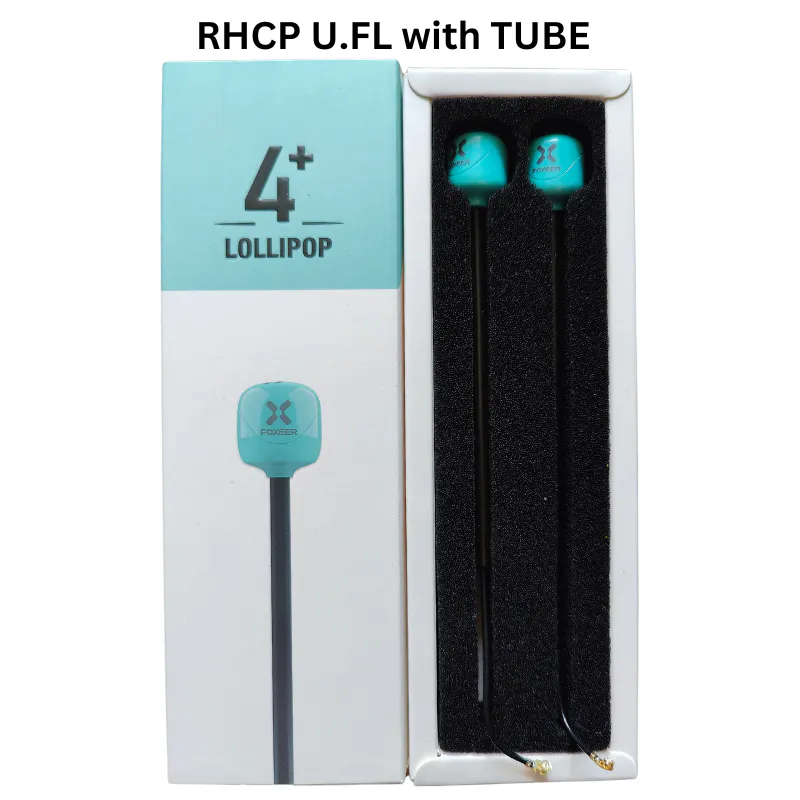

Foxeer Lollipop 4 Plus RHCP with Tube 5.8G 2.6dBi FPV Omni LDS Antenna

The Foxeer Lollipop 4 Plus RHCP is a 5.8GHz omnidirectional antenna featuring a rigid tube extension, designed to elevate the active element above carbon fibre frames for a clear RF line of sight. Utilising LDS (Laser Direct Structuring) technology with a 3D gold-plated circuit, it delivers a consistent 2.6dBi gain and an axial ratio near 1. This makes it highly effective for both analog and digital FPV systems requiring Right-Hand Circular Polarisation (RHCP).

Key features

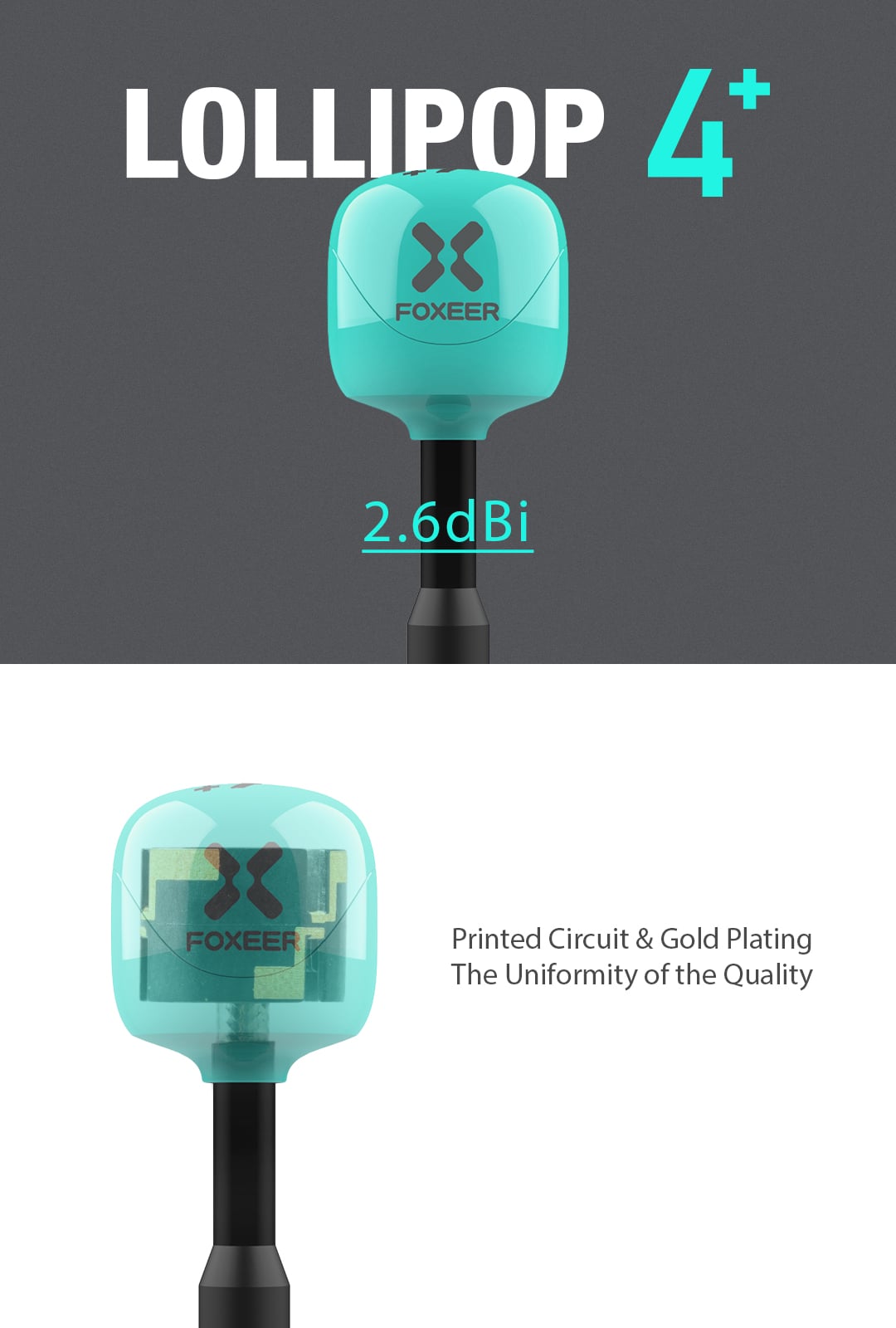

• LDS technology with a gold-plated circuit for superior signal consistency and 98% radiation efficiency.

• Extended tube design clears frame obstruction to minimise multipath interference and signal dead zones.

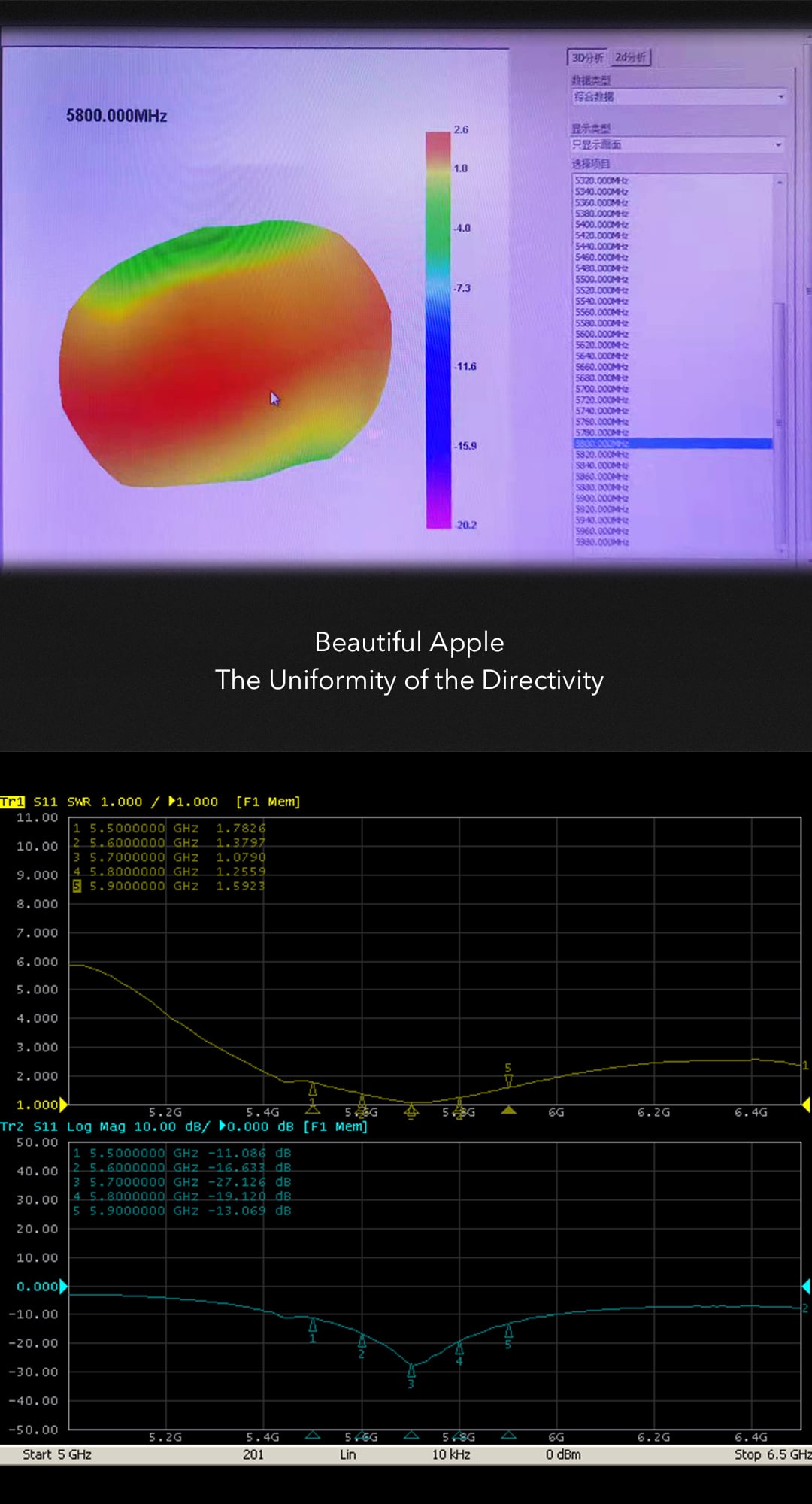

• Extremely low VSWR (under 1.07 at the 5.75GHz centre frequency) ensures optimal VTX power transfer.

• Impact-resistant PC+ABS radome protects the antenna element during crashes and hard landings.

Specifications

• Centre Frequency: 5.75 GHz

• Bandwidth: 5.5–6.0 GHz

• Gain: 2.6 dBi

• Polarisation: RHCP

• Radiation Efficiency: 98%

• Housing Material: PC+ABS

Ensure your video receiver or goggles match this RHCP polarisation to avoid significant signal loss. The extended tube configuration makes this antenna an excellent choice for mid-range freestyle quads and cinelifter builds where battery or frame blocking is a primary concern.
