Flywoo GOKU HEX GN405 Nano 16x16 Stack 13A ESC ICM42688
₹7,699Incl. GST
SKU FLYWOO-GOKU-GN405-13A
Mounting Size: 16x16FC Processor: F405Gyro: ICM42688PESC Current: 13 A
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

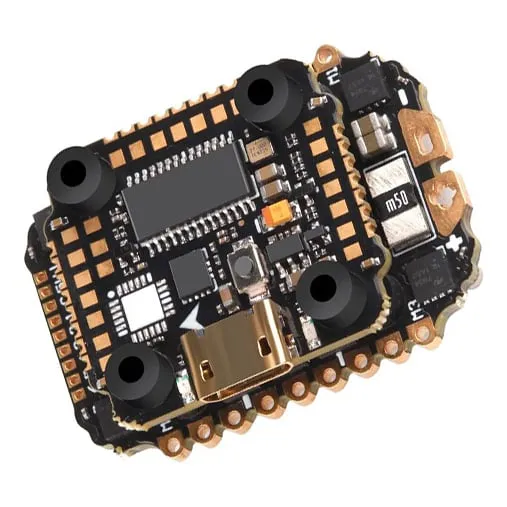

The Flywoo GOKU HEX GN405 Nano is a 16x16 flight-controller-and-ESC stack built around an F405 processor and an ICM42688 gyro, aimed at micro and toothpick quads where space and weight are tight.
Key features
- STM32F405 MCU is paired with an onboard barometer and 16MB of blackbox flash for post-flight logging.
- Six hardware UARTs support serial receivers such as SBUS, iBus, Spektrum and Crossfire; PPM and PWM receivers are not supported.
- Regulated 5V/2A and 3.3V/0.5A outputs power the flight controller's own accessories, a camera or a VTX.
- WS2812 addressable LEDs at each corner give orientation lighting without extra wiring.
- 16x16mm M3 mounting holes on a 22x22mm board pin-mount directly onto the matching Goku HEX 4-in-1 ESC, or solder via pads on other frames.
- 13A-rated ESC suits motor and propeller combinations built for lightweight micro and toothpick setups.
Specifications
- Mounting Size: 16x16mm
- Gyro: ICM42688
- ESC Current: 13A
- MCU: STM32F405
- Blackbox: 16MB onboard flash
- UARTs: 6
| Mounting Size | 16x16 |
|---|---|
| FC Processor | F405 |
| Gyro | ICM42688P |
| ESC Current | 13 A |
| Integrated Receiver | No |
| Integrated VTX | No |
| Made in India | No |
| Brand | Flywoo |
| Barometer | Yes |
| UARTs | 6 |
