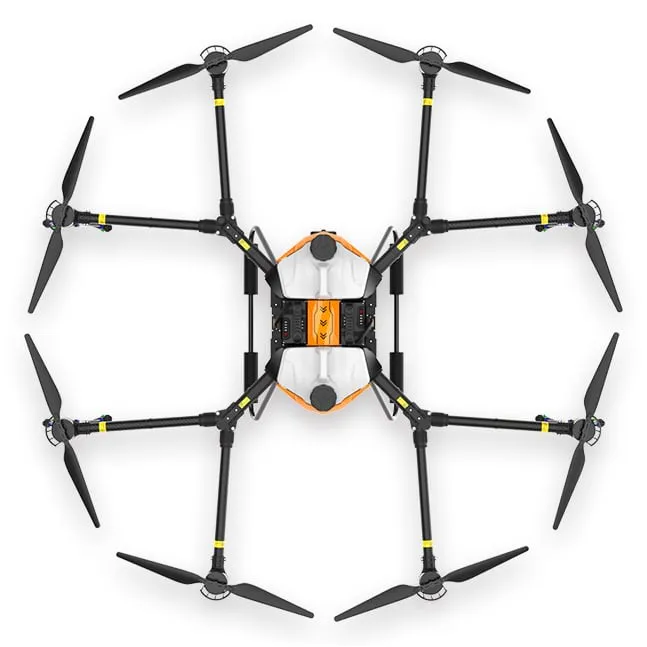

EFT G20 22L 8-Axis Agriculture Frame

The EFT G20 22L 8-Axis frame is a heavy-duty industrial octocopter platform engineered for large-scale agricultural spraying and high-capacity payload delivery. By utilising an eight-motor configuration, this frame provides superior propulsion redundancy and exceptional stability compared to traditional hexacopters, ensuring safe operation when carrying heavy, shifting liquid loads. It is built to handle rigorous daily use in harsh farming environments.

Key features

• Massive 22-litre tank capacity allows for extended spraying cycles across large plots and acreages.

• 8-axis octocopter geometry ensures critical motor redundancy to safeguard expensive electronics and hardware in the event of a single-motor failure.

• Folding arms shrink the 2744 x 2744mm span to 1114 x 1114mm for transport.

• One-piece moulded body reduces part count and improves strength and waterproofing.

• Enclosed central canopy shields the flight controller, power distribution board, and vital receivers from dust, moisture, and chemical spray.

Specifications

• Frame type: 8-Axis (Octocopter)

• Tank capacity: 22 litres (2 x 11L quick-release tanks)

• Arm diameter: 40mm

• Unfolded size: 2744 x 2744 x 661mm

• Folded size: 1114 x 1114 x 661mm

• Recommended power system: Hobbywing X8 with 30-inch propellers

• Recommended battery: 12S 16000 mAh

This frame requires a heavy-lift power system to operate effectively. It pairs perfectly with high-thrust propulsion setups like the Hobbywing X8 or X9 series and relies on industrial-grade flight controllers such as Pixhawk hardware running ArduPilot or specialised agricultural flight systems.
