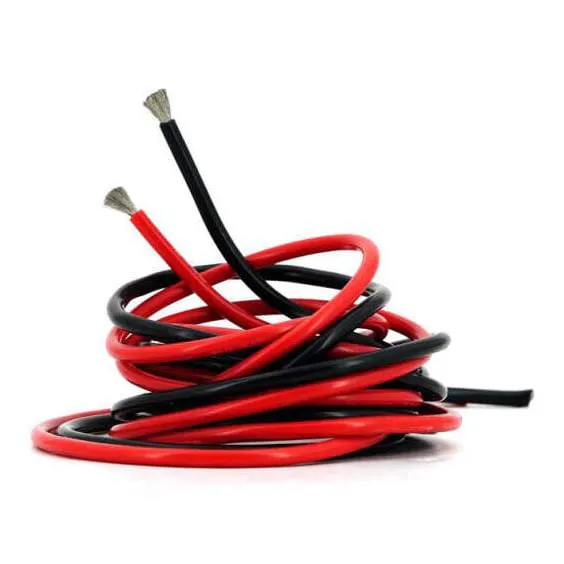

DOGCOM 12AWG Silicone Wires (2m)

The Dogcom 12AWG silicone wire is the standard choice for crafting custom XT60 battery pigtails and main power leads on 5-inch freestyle, racing, and 7-inch long-range drones. Supplied in a continuous 2-metre length, this highly flexible wire features a dense tinned copper core and a durable high-temperature silicone jacket. It routes easily through tight carbon frames and safely manages the heavy continuous amp draws of modern 6S power systems.

Key features

• High-strand-count tinned copper core for maximum flexibility and efficient conductivity
• Heat-resistant silicone insulation that prevents shrinking or melting during high-temperature soldering
• Optimised for high-current 4S to 6S FPV setups and heavy-lift platforms
• Supplied as a 2-metre continuous spool for multiple custom pigtails or ESC extensions

Specifications

• Wire gauge: 12 AWG
• Length: 2 metres
• Conductor: Tinned copper
• Insulation: Silicone rubber
• Temperature rating: -60°C to +200°C
• Nominal voltage: 600V

12AWG is the optimal gauge to pair with standard XT60 connectors on mid-to-large multirotors. For smaller sub-250g builds or micro drones using XT30 pigtails, stepping down to a lighter 16AWG or 18AWG wire is recommended to save weight and reduce stress on the flight controller pads.
