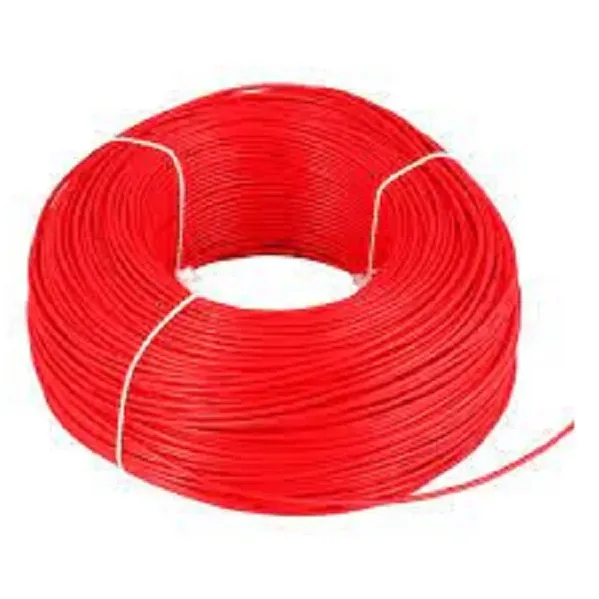

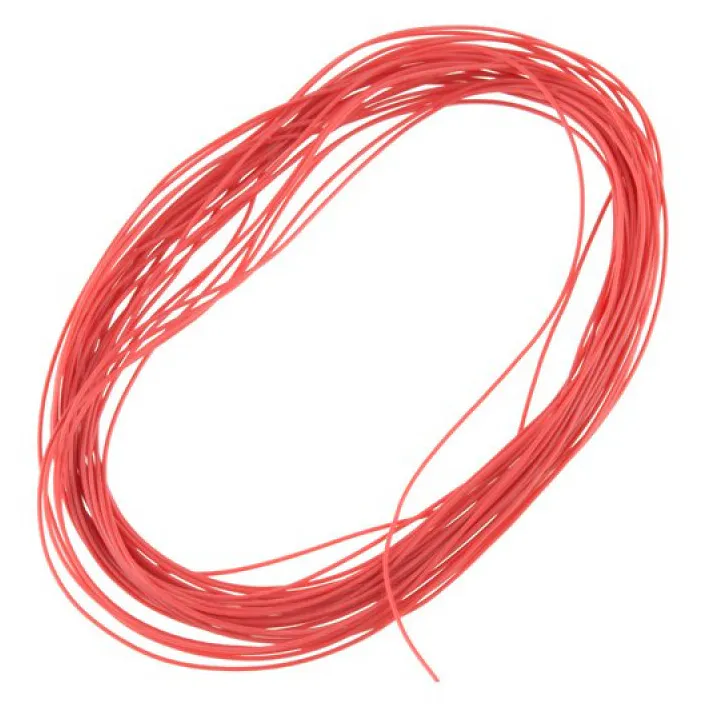

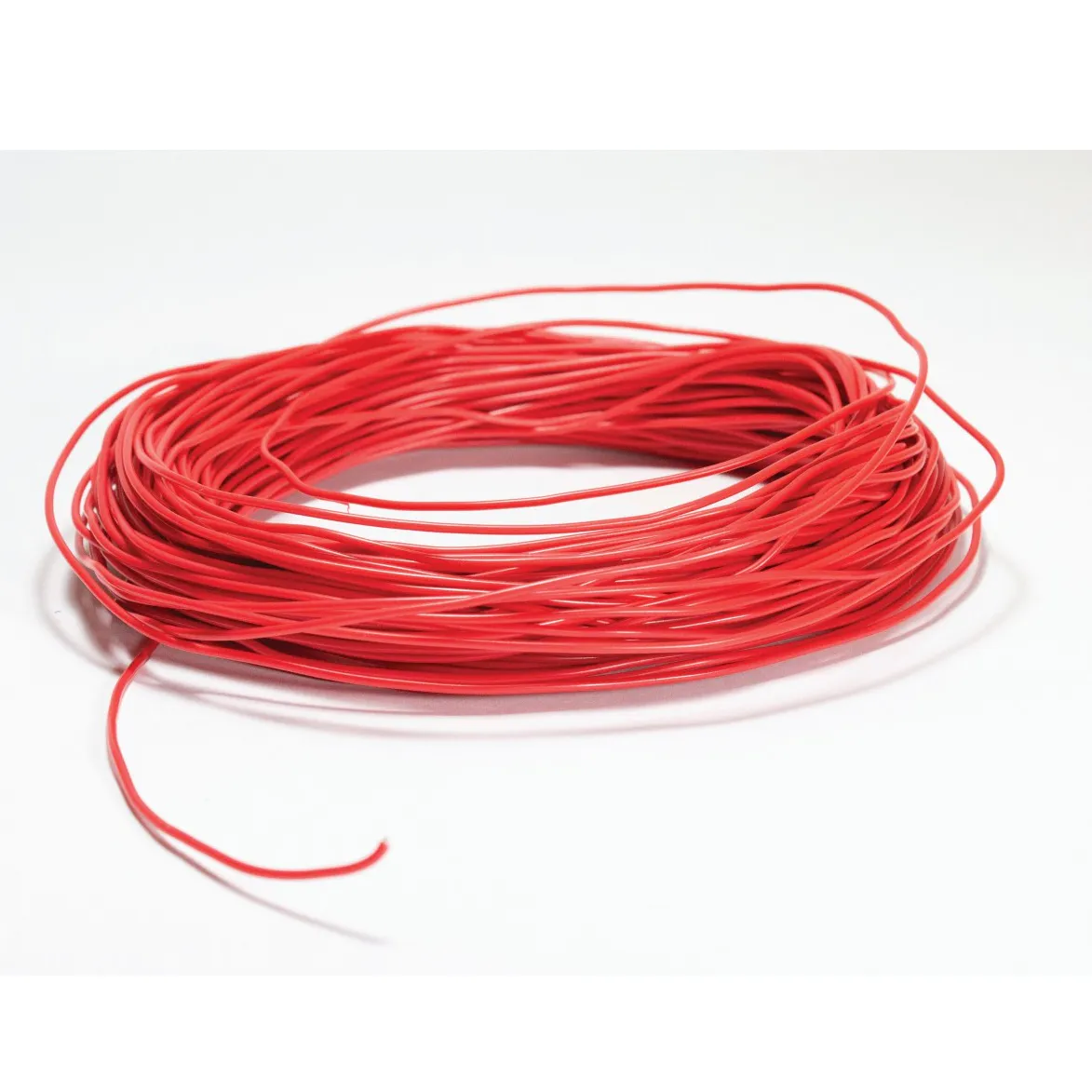

Extra-Soft Silicone Wire, Red (18AWG 1m / 22AWG 2m)

Extra-soft red silicone wire with a high strand count of fine tinned copper, for drone power and signal wiring where a lead has to bend tightly or route through a cramped frame. Pick the gauge to suit the job: 18AWG in a 1m length for battery leads, ESC power and PDB runs on small and mid-size quads, or 22AWG in a 2m length for receiver, VTX, camera and LED wiring.

Key features

• Fine-strand tinned copper conductor stays flexible and resists breaking under vibration
• Silicone rubber insulation rated -60°C to +200°C, so it does not shrink back or melt under the soldering iron
• Rated to 600V
• Red insulation for the positive side of a power run

Specifications

• Conductor: Tinned copper
• Insulation: Silicone rubber
• Colour: Red
• Rated voltage: 600V
• Temperature range: -60°C to +200°C
• 18AWG option: 1m, 150/0.08mm strands
• 22AWG option: 2m, 60/0.08mm strands

Pair the red run with black wire of the same gauge for the negative side. For main battery leads on 5" and larger builds pulling high current, step up to 14AWG or 12AWG instead of 18AWG.
