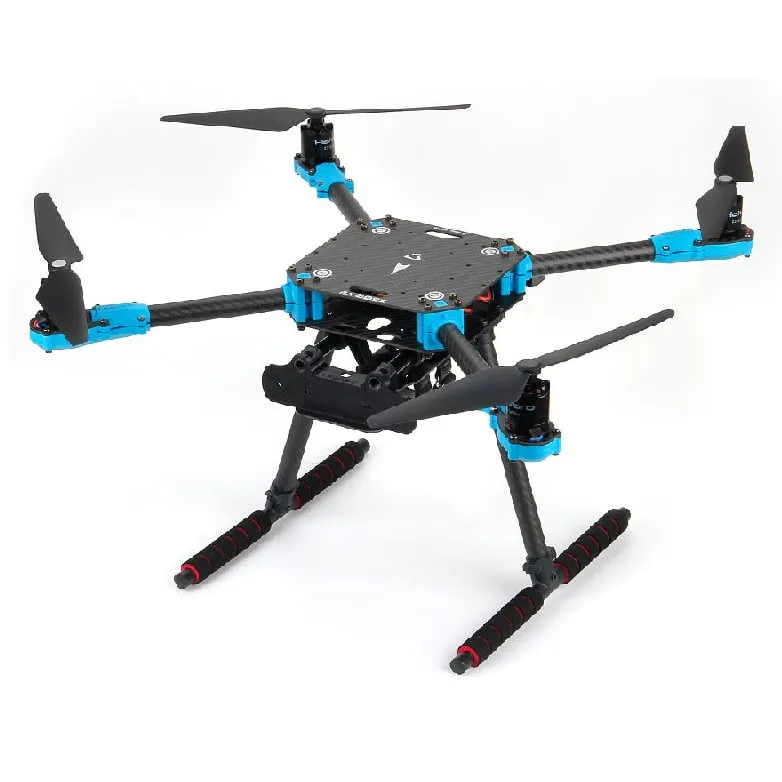

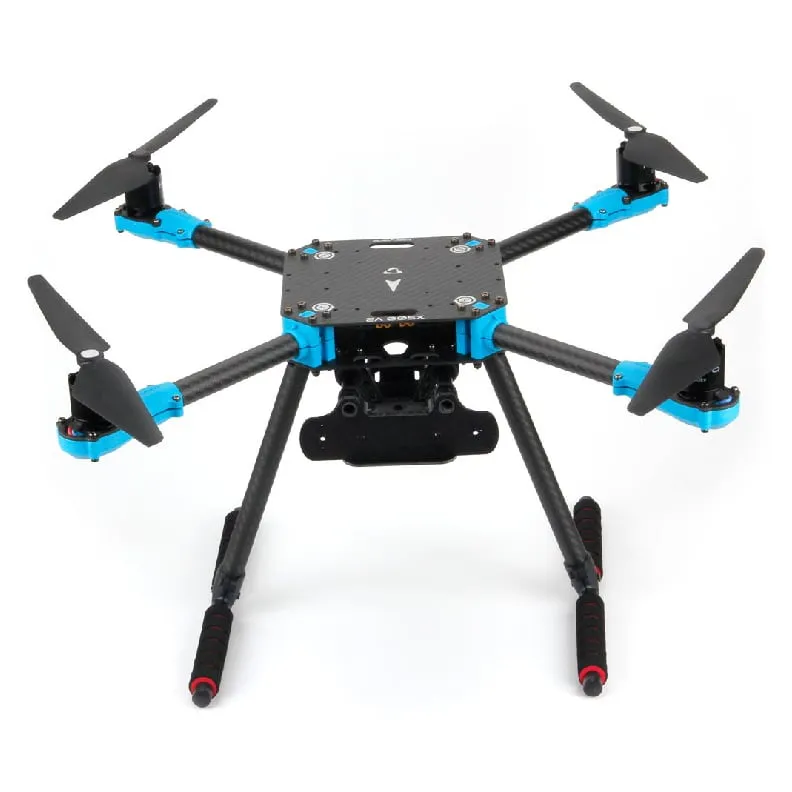

Holybro X500 V2 ARF Kit with Motors, ESCs and Propellers

The Holybro X500 V2 ARF kit is a 500 mm carbon fibre quadcopter platform for Pixhawk-based development, research and payload testing. Motors, ESCs, power distribution board and propellers come already fitted, so assembly takes around 15 minutes; you add your own flight controller, GPS, radio link and battery.

Key features

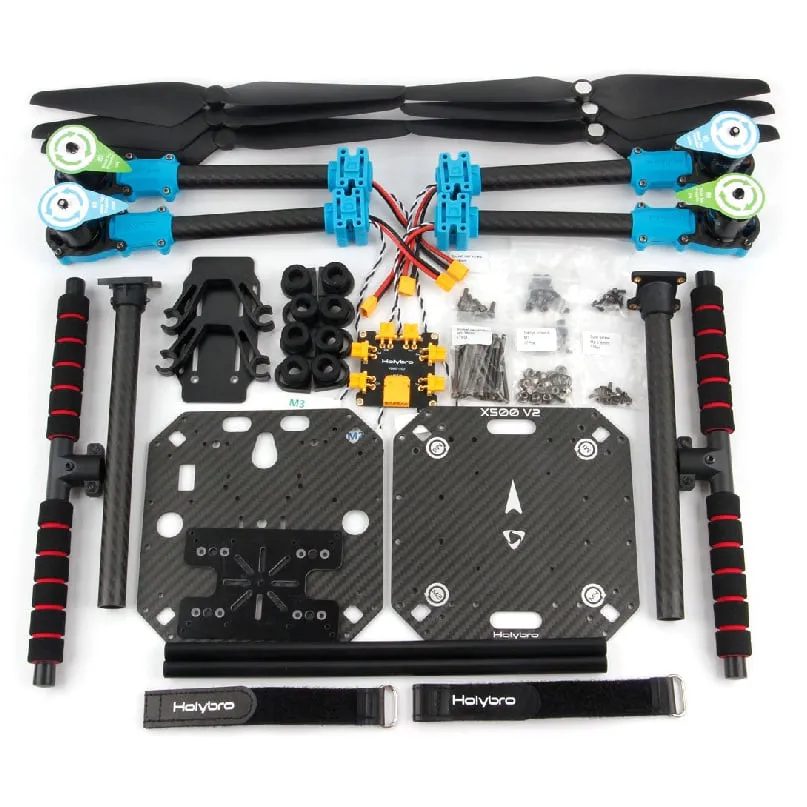

• Full carbon fibre twill plates with carbon tube arms and fibre-reinforced nylon connectors, notched for quick, solder-free assembly

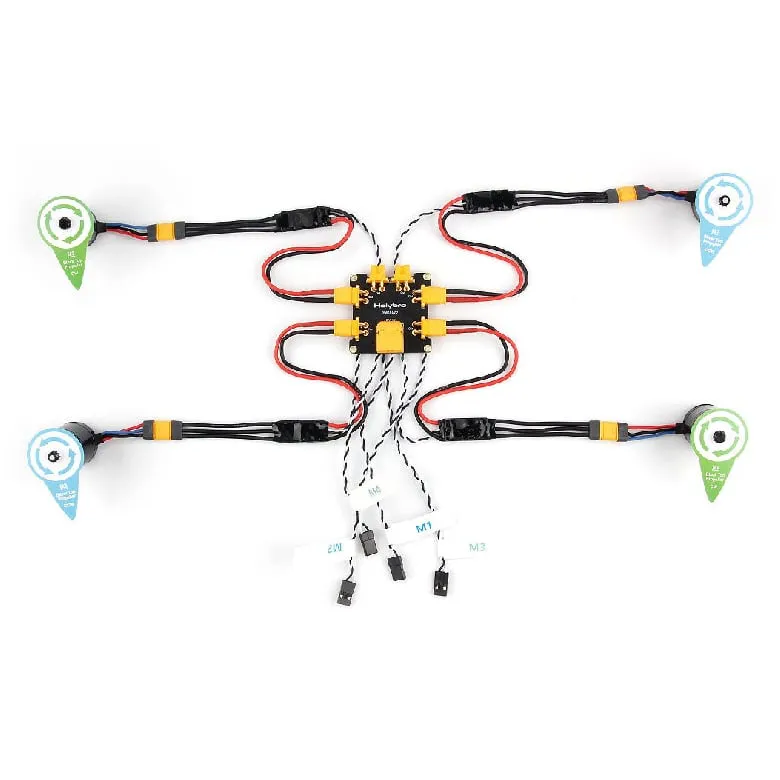

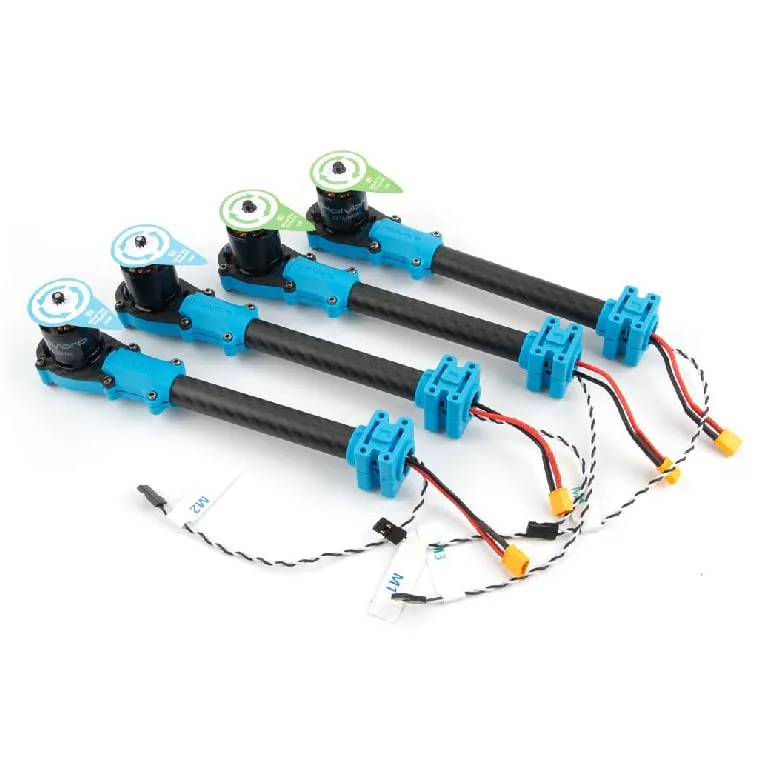

• Pre-installed Holybro 2216 motors and 20A BLHeli_S ESCs that plug into the PDB with XT30 connectors
• Power distribution board with XT60 battery input and XT30 outputs, no soldering needed
• Platform board drilled for GPS and companion computers such as Raspberry Pi 4 and Jetson Nano

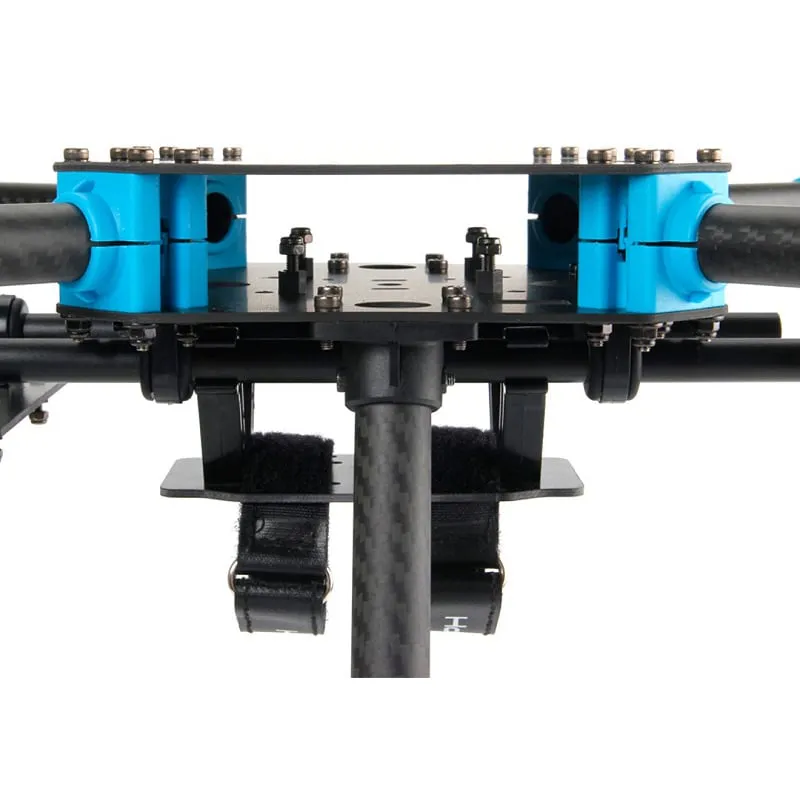

• Enlarged, adjustable battery plate and a rail mounting system for camera mounts and gimbals
• Landing gear in 16 mm and 10 mm carbon tubes with thickened, strengthened connectors

Specifications

• Wheelbase: 500 mm
• Body plates: 144 x 144 mm carbon fibre
• Motors: 4 x Holybro 2216, pre-installed
• ESCs: 4 x 20A BLHeli_S, pre-installed
• Propellers: 1045 (10 x 4.5 in)
• Power distribution: PDB with XT60 input, XT30 outputs
• Recommended battery: 4S LiPo up to 5000 mAh with XT60 (not included)
• Not included: Flight controller, GPS, receiver and transmitter, telemetry radio, battery

The kit pairs with Holybro Pixhawk-series autopilots, Durandal and Pix32 V5, and the frame accepts an optional depth-camera mount for Intel RealSense units (sold separately). All installation tools come in the box.
