DC 12V PWM Fan Controller with Temperature Probe
₹389Incl. GST
SKU DC12V-PWM-FAN-CONTROLLER
Made in India: NoBrand: Generic
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

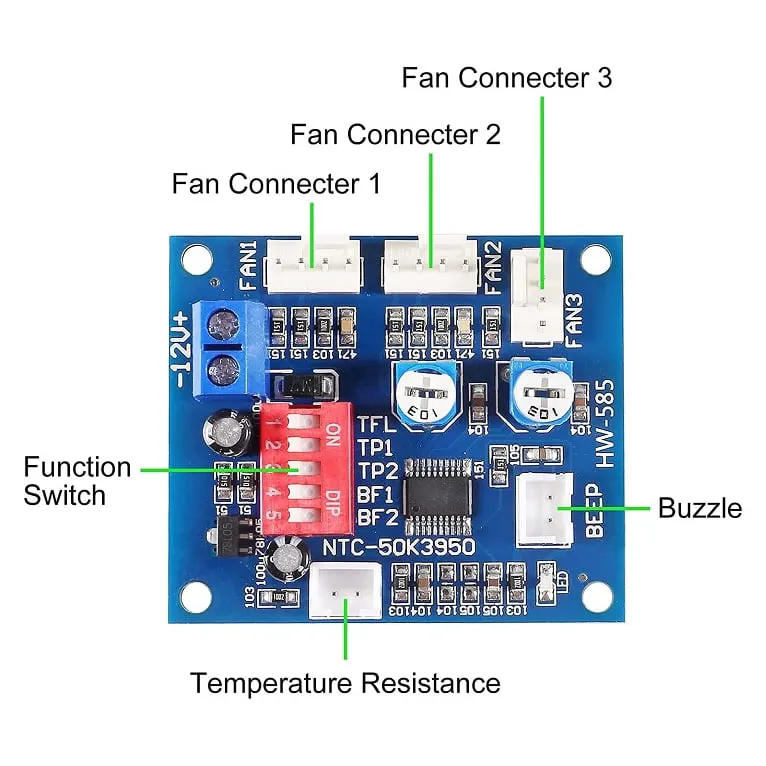

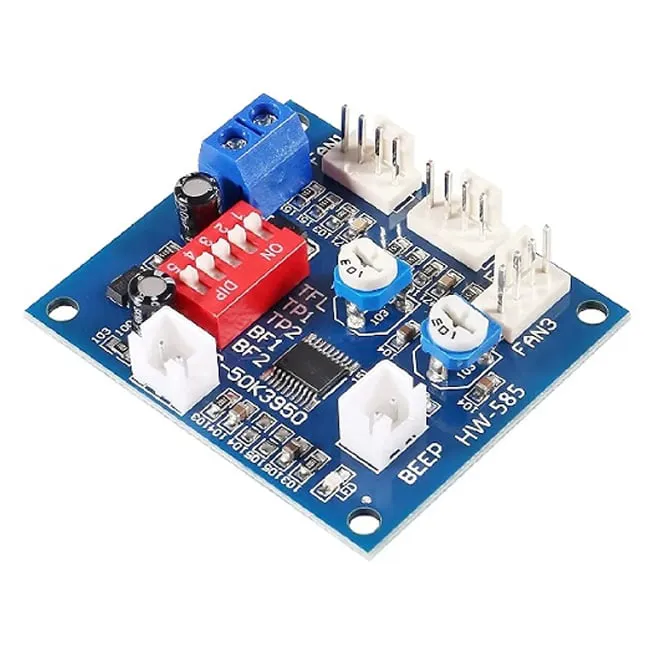

A DC 12V PWM controller for adjusting fan speed in electronics enclosures, workbenches and custom cooling systems, with a probe for temperature-based control and a stall alarm.
Key features
- PWM speed control across three fan channels, each carrying up to 5A (9A total bus current).
- Included temperature probe drives automatic speed adjustment and a high-temperature alarm.
- Built-in buzzer sounds when the alarm condition or a stalled fan is detected.
- Stall alarm triggers below roughly 700-800rpm, flagging a fan that has slowed or stopped.
- Suits 12V DC fans in enclosures, workbenches and custom electronics cooling setups.
Specifications
- Supply voltage: 12V DC
- Per-channel current: 5A (9A bus total)
- Control: PWM with temperature probe
- Output range: channel 1 20-100% (40-100% with TFL on); channels 2 and 3 10-100%
- Temperature probe: 50K NTC, B3950
- Stall alarm threshold: approx. 700-800rpm
- Included: Speed controller, temperature probe, buzzer
Confirm the fan's voltage, current draw and wiring before connecting it to this controller.
