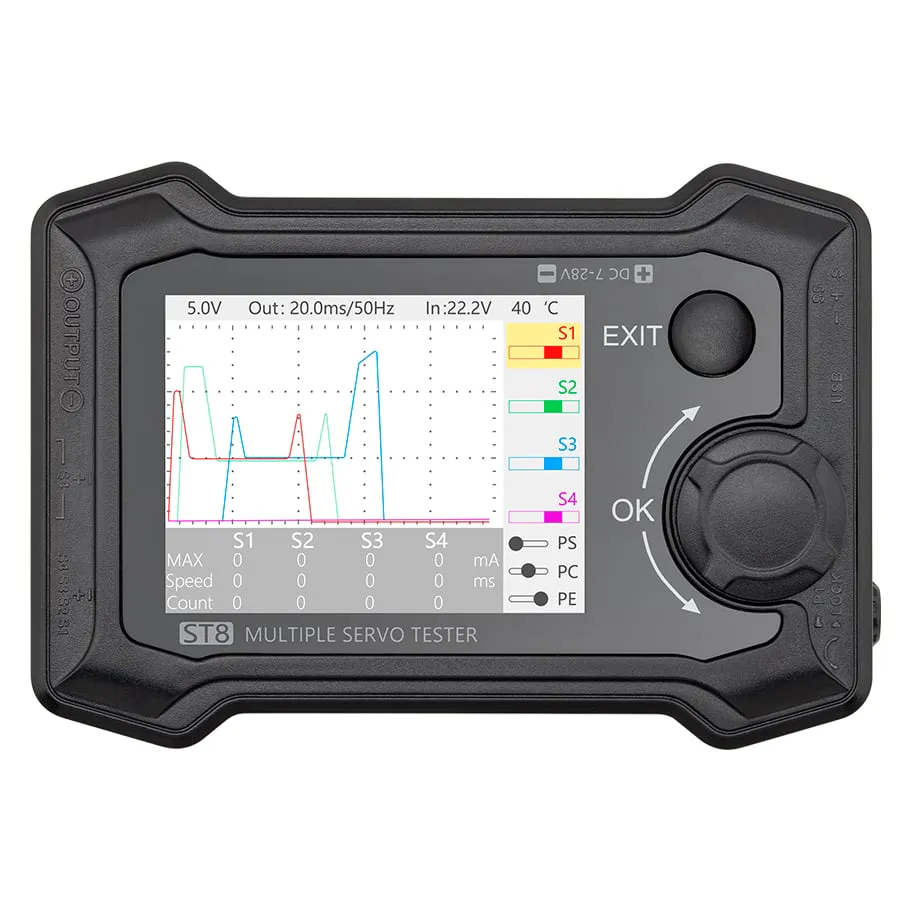

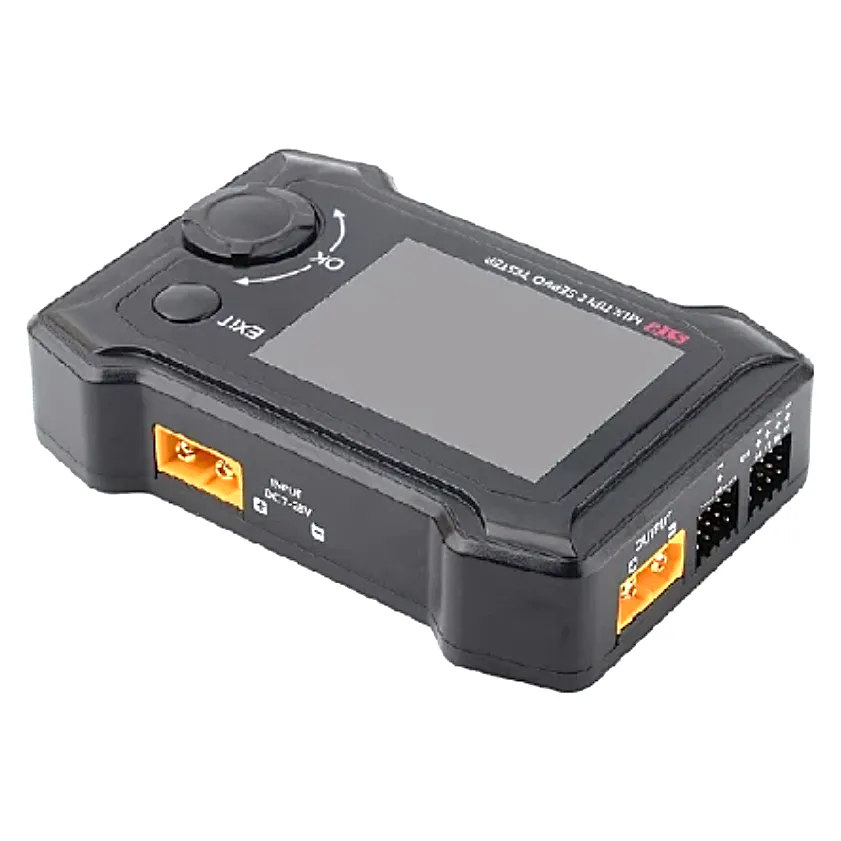

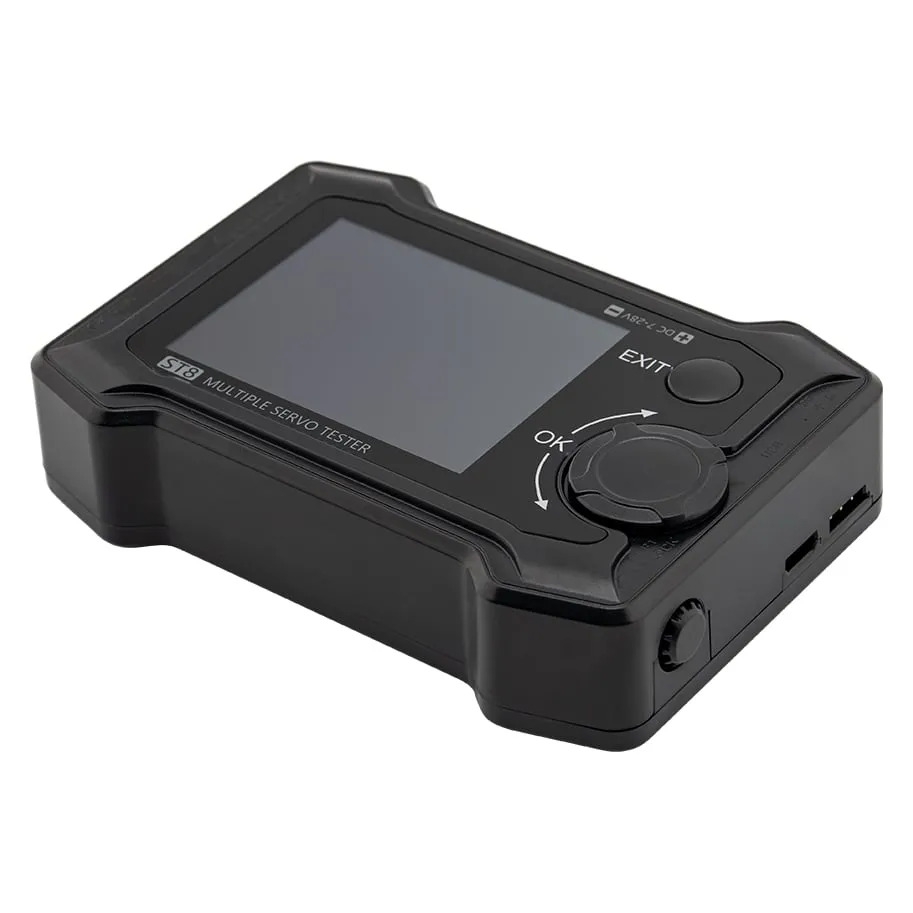

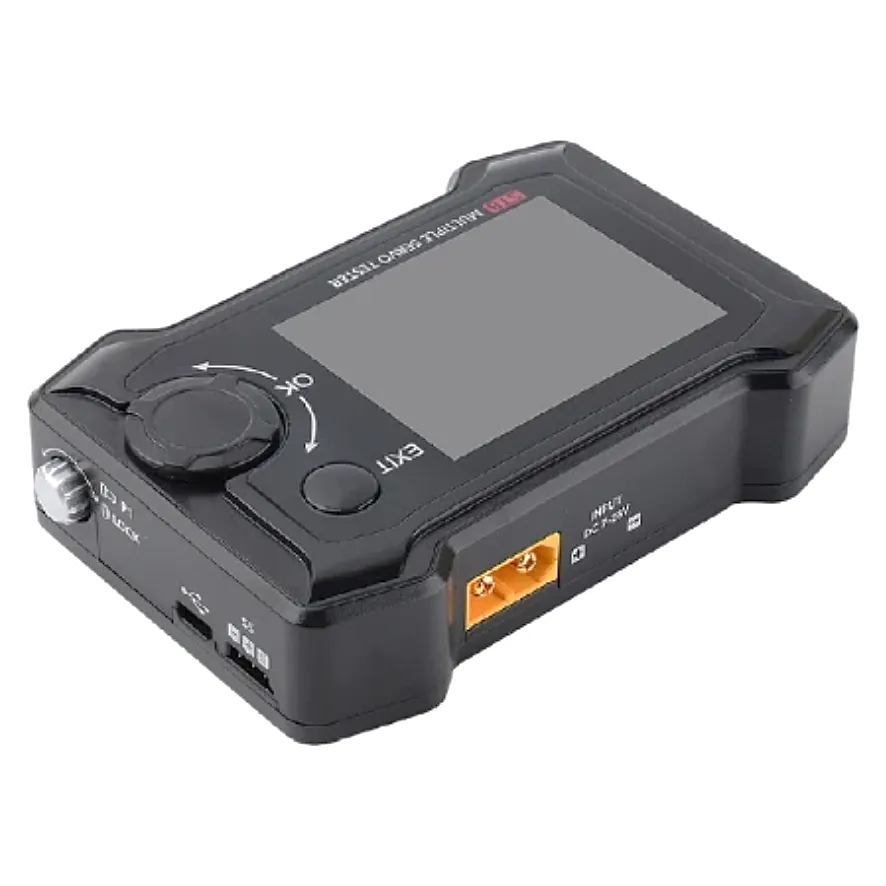

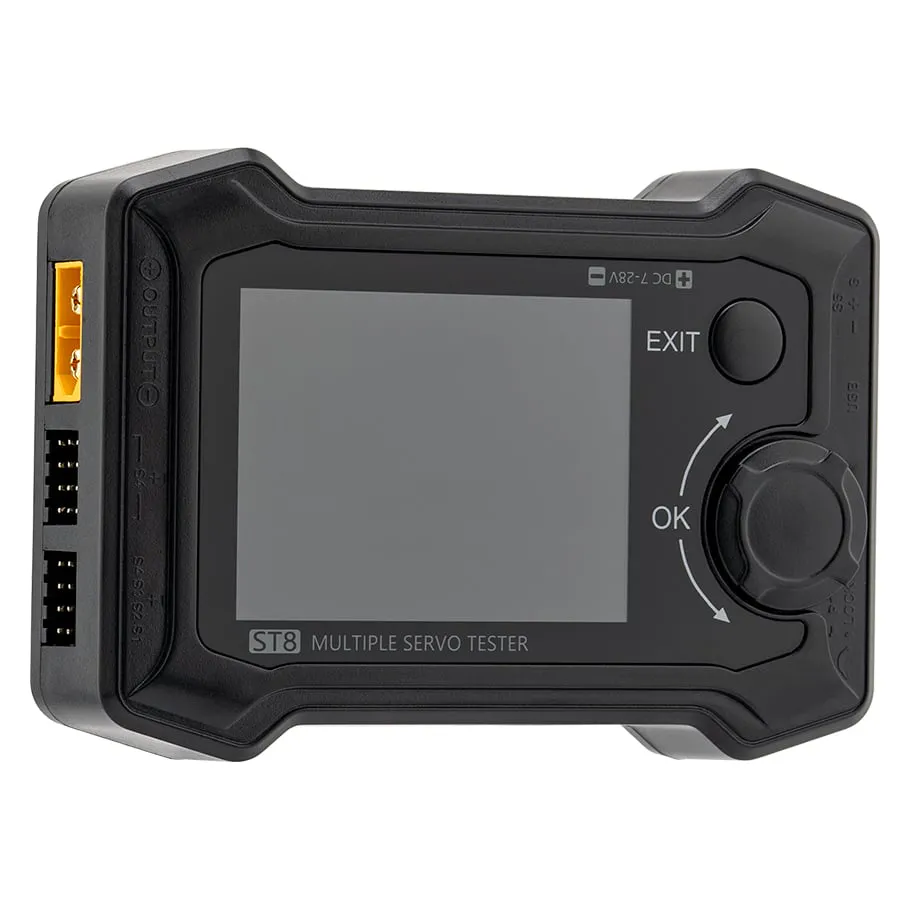

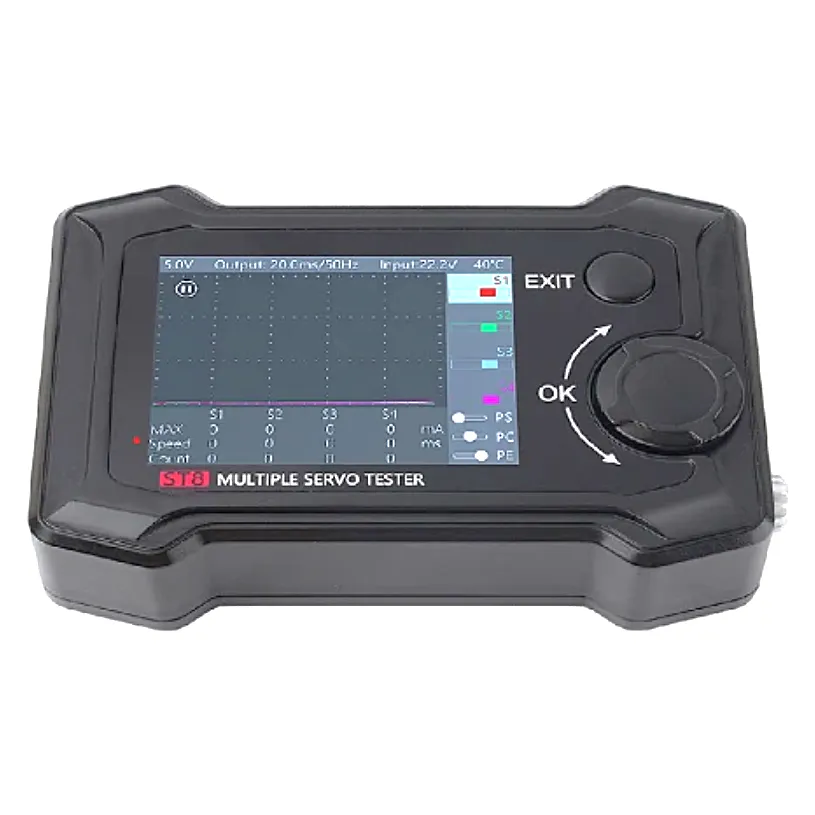

ToolkitRC ST8 Multi-Servo Tester

The ToolkitRC ST8 is a bench servo tester that drives up to four servos at once and doubles as a receiver signal reader. It suits fixed-wing, helicopter and RC car builders setting up control surfaces and linkages, and UAV builders checking servos before installation.

Key features

• Four servo outputs (S1-S4) powered at an adjustable 5.0-8.4V with up to 4A shared, so high-voltage servos run at their real voltage

• Signal output from 100 to 2900us at 33-1000Hz, covering analog, digital and high-frame-rate servos

• S5 input reads PWM, 8-channel PPM and 16-channel SBUS for receiver testing

• Main output port passes 5-28V at up to 10A

• 2.4-inch colour display, firmware updates over Micro USB

Specifications

• Input: DC 7.0-28.0V, 10A max

• Main output: 5.0-28.0V, 10A max

• Servo ports: 5.0-8.4V, 4A max (S1-S4)

• Output signal: 100-2900us, 33-1000Hz

• Input signal (S5): PWM 500-2500us, PPM 8 channels, SBUS 16 channels

• Display: 2.4-inch TFT, 320 x 240

• Size: 99 x 68 x 26 mm

• Weight: 120 g

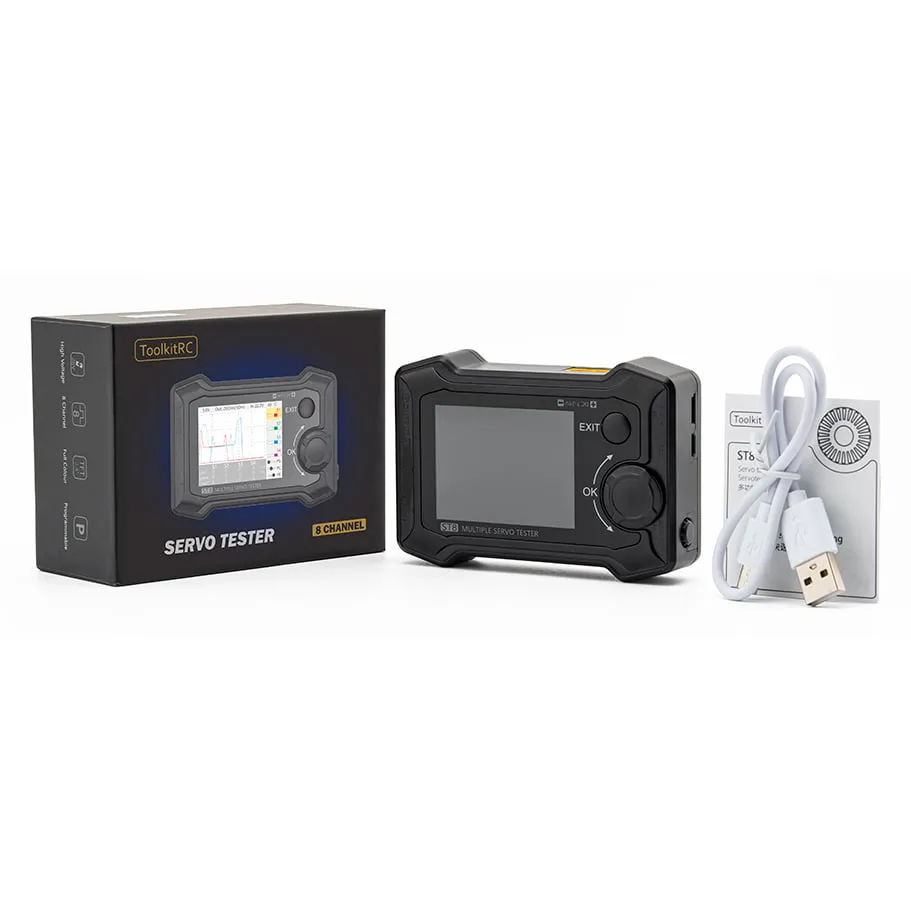

• In the box: ST8 tester, USB cable, quick manual

Power it from a 2S-6S LiPo or a 7-28V supply; a ToolkitRC charger's DC output also works.
