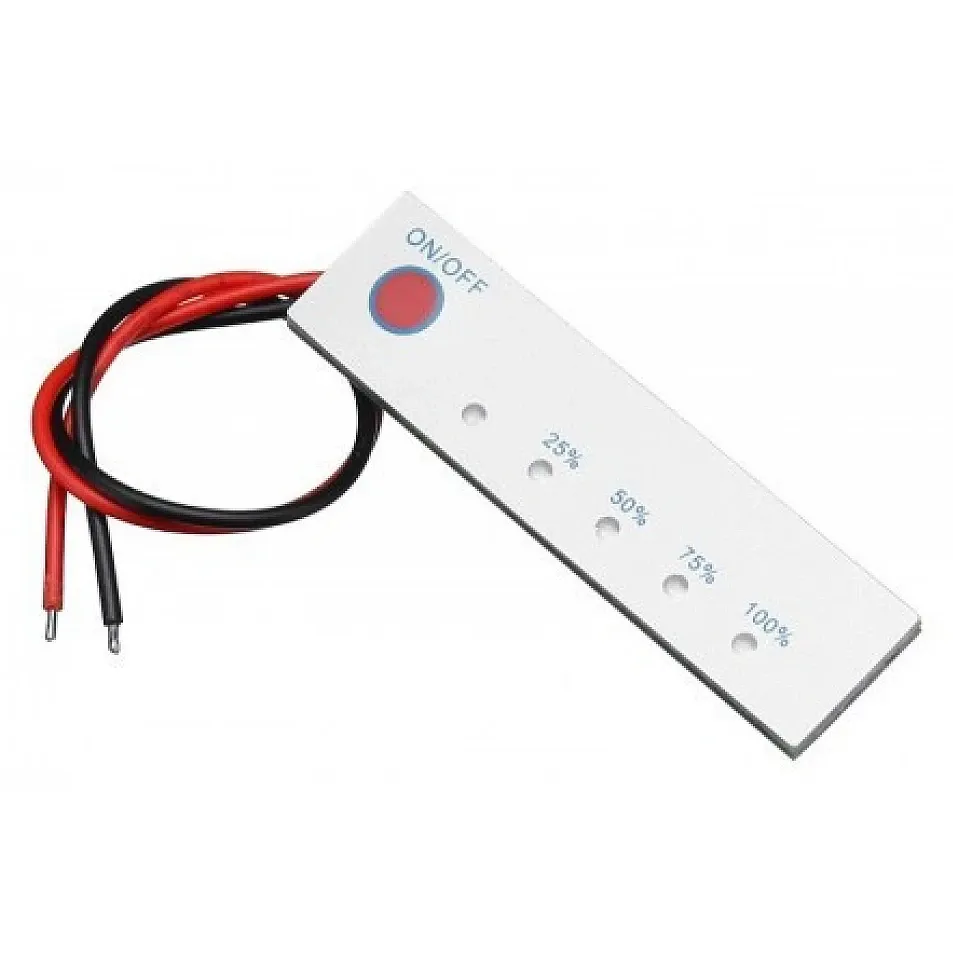

5-Level LiPo Battery Voltage LED Indicator (2S/3S/4S)

Push-button battery level indicator for LiPo and other lithium packs: a row of five LEDs shows roughly how much charge is left. It suits battery boxes, field chargers, FPV ground stations and RC models where a full voltage checker is more than you need. Choose the 2S, 3S or 4S version to match your pack.

Key features

• Five-step LED gauge: five LEDs step down from full to nearly flat
• Press to read: hold the button to show the level; releasing it switches the display off
• Reverse-connection protection: guards the board if the lead is wired the wrong way round
• Three versions: 2S, 3S and 4S, each set for its own cell count

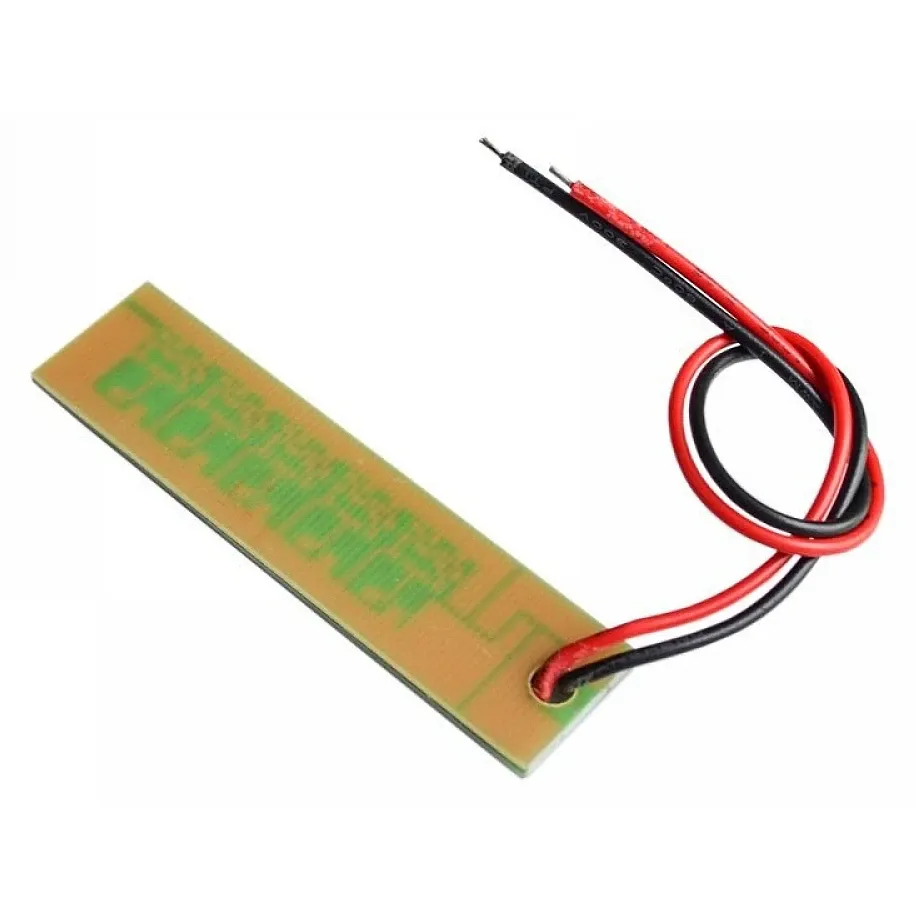

• Slim board: 59.8 × 15 × 3 mm with a 140 mm lead

Specifications

• Versions: 2S, 3S, 4S
• Display: 5 LEDs
• Draw while reading: 300 mA
• Lead length: 140 mm
• Board size: 59.8 × 15 × 3 mm

Wire the lead across the pack's main output, observing polarity, and mount the board where the button stays easy to reach.
